ATN BlazeTrek 619 Gen 6 Thermal Monocular 640×512 19mm

Description

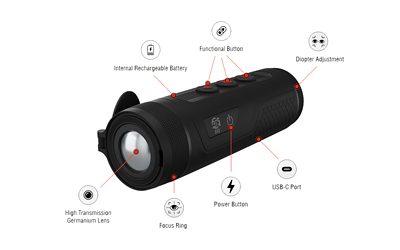

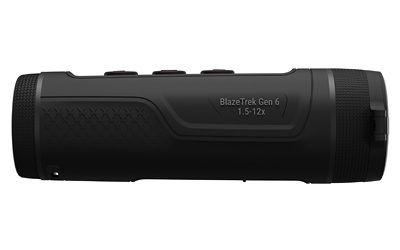

The ATN BlazeTrek 619 Gen 6 is a compact thermal monocular built on ATN’s sixth-generation thermal engine for responsive image processing and efficient power use. It uses a 640 x 512 thermal sensor with a 12 micron pixel pitch and high sensitivity to support detection in low-visibility conditions. The unit outputs imagery to an 800 x 600 OLED display with AI-enhanced image processing to improve contrast and edge detail in real time. The chassis is IP67-rated and includes onboard video recording, wireless connectivity, and USB-C external power support for extended field use.

Key Specifications

• The thermal sensor resolution is 640 x 512.
• The pixel pitch is 12 µm.
• The stated NETD sensitivity is 18 mK or less.
• The refresh rate is 50 Hz.
• The display is an 800 x 600 OLED.
• The objective lens diameter is 19 mm.
• The housing rating is IP67 for dust and water resistance.
• Integrated features include onboard video recording.
• Connectivity options include wireless networking and USB-C external power support.

With a high-resolution thermal sensor, responsive processing, and a rugged IP67-rated chassis, the BlazeTrek 619 Gen 6 is suited for professional detection, scouting, and general-purpose observation where reliable thermal imaging and straightforward operation matter. Its combination of sensor performance, display clarity, and integrated recording/connectivity features make it a practical choice for users who need durable, high-performance thermal optics in a compact package.
