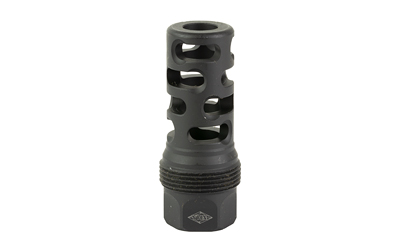

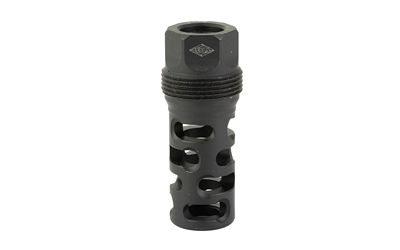

Yankee Hill Machine built the sRx system around a simple idea: quick-detach mounting doesn't need to be bulky or complicated. This Long sRx muzzle brake threads onto any 1/2-28 barrel and does double duty, taming recoil and muzzle rise while serving as the mounting point for your suppressor. Pair it with the sRx Adapter (YHM-4400, sold separately) and you can move one can between rifles in seconds instead of wrenching a direct-thread suppressor on and off every time.
The trick is the big internal taper machined in front of the threads. When the adapter cinches down on the brake, that taper locks everything up tight and seals out gas, so carbon never gets a chance to bake onto the threads. Anyone who has fought a carbon-welded suppressor mount knows exactly why that matters. There are no springs, no ratchet teeth, no moving parts to wear out, and the taper gives you the same consistent lockup every time, which helps keep your point of impact predictable when you pull the can off and put it back on.
Installation is about as painless as it gets. There is no need to shim or time the brake to your barrel, so you can skip the crush washers and peel washers entirely. The device itself measures 2.3 inches and only adds about 1.675 inches to your barrel on standard 0.6 inch thread shanks, and at under two ounces it is lighter than a lot of QD mounts out there. It can also be permanently attached to the barrel if your build calls for it.
The sRx Adapter it pairs with uses the industry standard 1-3/8×24 HUB thread pattern, so this setup plays nice with YHM cans like the Fat Cat and Turbo series along with the huge range of HUB-compatible suppressors on the market. Made in the USA and backed by YHM's lifetime warranty, it is a smart, low-profile way to standardize mounts across your 1/2-28 barrels.
Yes, the brake is half of the system. You also need the YHM sRx Adapter (YHM-4400), which threads into any suppressor with the standard 1-3/8×24 HUB interface. The adapter and brake lock together over the internal taper to give you the quick-detach function.
As long as the suppressor accepts the industry standard 1-3/8×24 HUB thread pattern, the sRx Adapter will screw right in and mate with this brake. That covers a big chunk of the modern suppressor market, not just YHM cans like the Fat Cat. Direct-thread-only suppressors without a HUB mount will not work with this system.
No, and that is one of the best parts of the design. The brake torques straight onto your 1/2-28 threads with no crush washers, shims, or timing required. The consistent taper lockup means your suppressor indexes the same way every time you reattach it.
The device itself measures 2.3 inches, but since it threads over your barrel's existing thread shank, it only adds about 1.675 inches on a barrel with standard 0.6 inch threads. At 1.92 ounces, it is also lighter than many quick-detach mounts, so it will not make your rifle feel nose heavy.
| UPC | 841812101529 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | YHM-4405-MB-28 |
| Caliber/Gauge | .223 REM/5.56 NATO |
| Color | Black |
| Length | 7.1 |
| Model | |
| Package Height | 1.4 |
| Package Width | 3.2 |
| Product Type | Accessory-Muzzle Brakes |
| Shipping Weight | 0.2 |
| Thread Pattern | 1/2"-28 tpi |
