Description

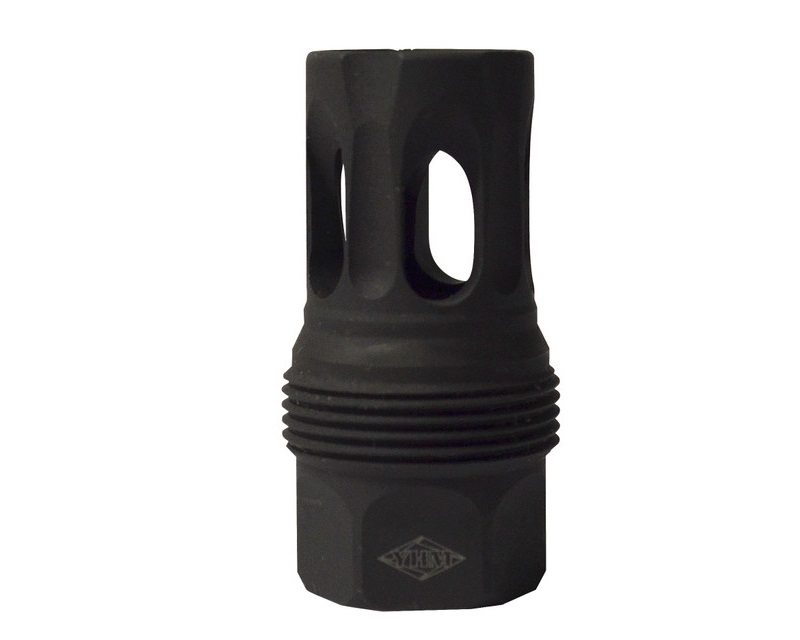

Quick-detach mounts have come a long way, and Yankee Hill's sRx system is proof. The sRx Short Q.D. Flash Hider is the muzzle-side half of that setup, machined from steel with a black phosphate finish and threaded 11/16×24 for barrels running that pattern, common on plenty of .308 and 7.62 builds. Pair it with the YHM sRx Adapter (YHM-4400), which threads onto any HUB-compatible suppressor at the industry-standard 1-3/8×24, and you have a genuinely fast on-and-off mount without a bunch of moving parts to wear out or rattle loose.
What Makes the sRx Short Flash Hider Different
The big deal here is the internal taper seal sitting just ahead of the threads. When you spin your can on, that taper locks everything up tight and consistent, and it seals off the threads so gas and carbon can't bake onto them. Anyone who has fought a carbon-welded suppressor mount knows exactly why that matters. There's also no timing required, so you won't be fiddling with shims and crush washers trying to get ports clocked just right. Thread it on, torque it down, done. It works with a shim kit included in the package if your barrel shoulder needs a little help squaring up.
Compact Footprint, Full sRx Benefits
At just over 1.8 inches long with a 0.75 inch diameter, this hider adds roughly 1.175 inches to a barrel with standard 0.6 inch threads. That short profile keeps your overall length down and shaves weight compared to a lot of Q.D. mounts out there, which is a real consideration once a suppressor is hanging off the end. The Short version of the sRx flash hider is rated for .45 caliber and smaller bores, so it covers this 11/16×24 application with room to spare.
When the can comes off, you're left with a clean, low-profile flash hider that still does its job at the muzzle. If you're standardizing your rifles on HUB suppressors, adding an sRx Short to each host is a smart way to swap one can across the whole safe.
Key Specifications
- Manufacturer: Yankee Hill Machine
- Manufacturer Part Number: YHM-4445-24B
- UPC: 841812101840
- Model: sRx Short Q.D. Flash Hider
- Thread Pattern: 11/16"x24 tpi
- Caliber Rating: .45 caliber and smaller (.308/7.62 compatible)
- Material: Steel
- Finish: Black Phosphate
- Device Length: 1.8125 in
- Length Added to Barrel: 1.175 in (with 0.6 in threads)
- Diameter: 0.75 in
- Mount Compatibility: YHM sRx Adapter (YHM-4400), HUB 1-3/8"x24
- Timing Required: No
What’s Included
- YHM sRx Short Q.D. Flash Hider
- Shim kit
Frequently Asked Questions
Do I need anything else to run a suppressor with the sRx Short Flash Hider?
Yes, this flash hider is one half of the system. You'll also need the YHM sRx Adapter (YHM-4400), which threads onto your suppressor's HUB-standard 1-3/8×24 mount. Once the adapter is on your can, it drops right over this flash hider and locks up on the taper.
Will the sRx Short Q.D. Flash Hider work with non-YHM suppressors?
As long as your suppressor uses the industry-standard HUB thread pattern of 1-3/8×24, you can install the sRx Adapter on it and use this flash hider as your muzzle mount. That covers a huge range of modern centerfire cans from many manufacturers, so you're not locked into YHM suppressors.
Does this flash hider need to be timed or shimmed to the barrel?
No timing is needed, which is one of the nicer parts of the sRx design. There are no ports that have to be clocked to a specific position, so you just torque it to the barrel shoulder. A shim kit comes in the package in case your shoulder needs slight adjustment for proper seating.
What's the difference between the sRx Short and sRx Full flash hiders?
The Short version is rated for .45 caliber and smaller bores and comes in 5/8×24, 5/8×32, and 11/16×24 thread pitches, while the Full is sized for 9mm and smaller in 1/2×28 or 5/8×24. Both work with the same sRx HUB adapter. This 11/16×24 Short model is the pick for barrels threaded in that pattern, commonly found on .308 and 7.62 rifles.
