XS Sights Lever Rail Ghost Ring WS for Marlin 30AS Dovetail Front

UPC: 647533041942

$153.74

6 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

The XS Lever Rail Ghost Ring WS is one of those upgrades that quietly transforms an old Marlin 30AS from a plinker into a serious brush and range gun. It swaps out the factory sights for a system that gives you the best of both worlds: a full-length Picatinny rail for glass and a rugged set of iron sights that work in a hurry. Machined from lightweight anodized aluminum, the rail is cut to Picatinny spec so you can drop on a scope, red dot, or scout-style optic without hunting for adapters.

Why the Lever Rail Setup Makes Sense on a 30AS

The rail runs long on purpose. You can mount a scope traditionally over the receiver, or push a low-power optic or red dot forward for that scout-style layout that keeps your peripheral vision open. It fits the 30AS with a round barrel and the existing screw-on front blade and ramp, and the whole thing installs with basic tools using the existing threads. No specialty gear needed, just take your time and torque the screws to 20 inch-pounds so you don't strip anything.

The Ghost Ring and White Stripe Front, Working Together

The rear ghost ring is all steel and fully adjustable for windage and elevation, and it ships with two apertures so you can tune it to your conditions. The smaller .191 inch opening tightens things up for bright daylight and precision, while the larger .230 inch aperture pulls in more light for dawn, dusk, and thick timber. Up front, the White Stripe post replaces the old blade with a blued steel body and a painted white face that pops against dark backgrounds and stands out no matter the light. Your eye naturally centers that post inside the ring, and the result is a sight picture that's genuinely fast to pick up.

One thing worth knowing: because the rear sight moves from the barrel back to the receiver, you'll want to plan on a proper zeroing session after install. It's a natural part of the process, and once you're dialed in, this setup gives your Marlin a real upgrade in speed and versatility whether you're running irons or glass.

Key Specifications

  • Manufacturer: XS Sights
  • Manufacturer Part Number: ML-1005-5
  • UPC: 647533041942
  • Fits: Marlin 30AS, round barrel with dovetail/screw-on front
  • Rail Material: Lightweight anodized aluminum
  • Rail Spec: Machined to Picatinny specifications
  • Rear Sight: All-steel ghost ring, adjustable for windage and elevation
  • Apertures Included: Two, .191 in and .230 in inside diameter
  • Front Sight: White Stripe blued steel post
  • Finish: Matte Black / Anodized
  • Screw Torque Spec: 20 inch-pounds
  • Shipping Weight: 0.38 lb

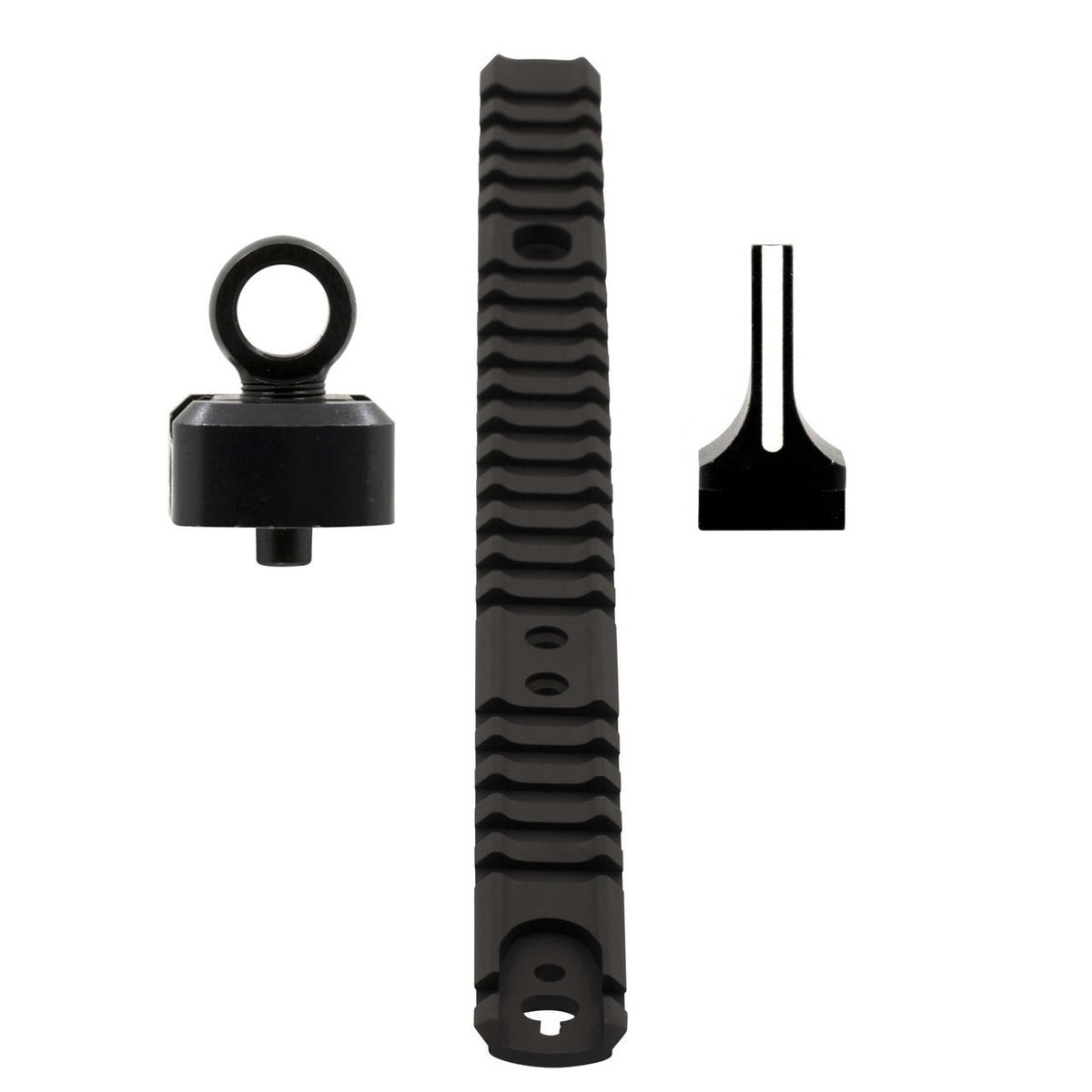

What’s Included

  • Picatinny-spec lever rail
  • Adjustable ghost ring rear sight
  • White Stripe front sight
  • Two apertures (.191 in and .230 in)
  • Mounting hardware
  • Thread locker

Frequently Asked Questions

Will the XS Lever Rail Ghost Ring WS fit my Marlin 30AS?

This kit (ML-1005-5) is built specifically for the Marlin 30AS with a round barrel and the factory front sight blade and ramp that screws onto the barrel. It won't work with octagon-barrel models. If you're unsure about your exact configuration, it's worth confirming your barrel profile and front sight setup before ordering.

Do I need a gunsmith to install the Lever Rail Ghost Ring WS?

Most folks handle this as a DIY job using basic tools and the existing threaded holes, so no specialty equipment is required. Installation does require removing the factory rear sight, and you'll want to torque all screws to 20 inch-pounds to avoid breaking them. Take it slow and it goes smoothly.

Why does it come with two different apertures?

The ghost ring ships with a .191 inch and a .230 inch aperture so you can match your sight to the light. The smaller opening sharpens things up for bright daylight and precision, while the larger one lets in more light for low-light hunting at dawn and dusk. Swapping between them is quick and lets you tune the sight to your conditions.

Can I still mount a scope or red dot with the ghost ring installed?

Yes, that's the whole idea behind this system. The Picatinny rail lets you run a scope, red dot, or scout-style optic while keeping the ghost ring and white stripe front as rugged backup irons. You can mount glass over the receiver or push it forward for a scout layout, whichever suits how you shoot.

Additional information

UPC

647533041942

Manufacturer

Manufacturer Part Number

ML-1005-5

Shipping Weight

0.38
