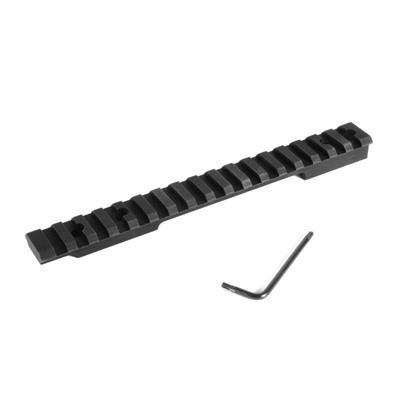

If you own a Weatherby Mark V built on the 9-lug magnum action and want a cleaner, more flexible way to run your glass, this EGW HD base is exactly the kind of upgrade that pays off every time you head to the range or the field. It replaces the fussy two-piece setup with a single rigid rail that bolts straight to your receiver's factory scope holes, giving you one solid platform to work from.
The rail is machined from solid 7075 T6 aircraft-grade aluminum and finished in a Type III matte black hard-coat anodize, so it shrugs off weather and years of use without complaint. Full-length Picatinny cross slots run the entire length of the rail, gauged to MIL-STD 1913 specs within a couple thousandths, which means you get real room to slide your rings fore and aft and dial in your eye relief just right. The milled channel down the center trims weight, bringing the whole thing in around 2.5 ounces, and in many cases it sits low enough to leave your factory iron sights usable.
This is the part worth slowing down on. EGW cuts this rail specifically for the 9-lug magnum Weatherby Mark V long action with a center spread of 4.485 inches, measured hole-center to hole-center on the two middle receiver holes. The 6-lug TRR models use a different 4.280-inch spread and need their own rail, so measuring your receiver before you order is the smart move. Get the fit right and the base sits flush and true.
This is the 0 MOA version, built flat with no built-in cant. EGW points toward 0 MOA for shooting roughly 0 to 500 yards, which covers the bulk of real-world hunting and general range work. If you're reaching way out past 500, that's where the 20 MOA variant earns its keep, but for most Mark V owners the flat rail is the right call. The base sits about 0.35 inches high from the top of the receiver to the top of the rail and works with any quality Picatinny or Weaver rings.
Everything you need to mount it comes in the box, and the whole rail is made right here in the USA.
It's cut specifically for the 9-lug magnum Mark V long action with a 4.485-inch center spread. It will not fit the 6-lug Mark V TRR models, which use a 4.280-inch spread and need a different rail. Measure the distance between the two middle receiver holes, center to center, before ordering to confirm the match.
The 0 MOA rail is flat with no built-in cant, which EGW recommends for shooting from 0 to roughly 500 yards. The 20 MOA version adds forward cant to give you more elevation adjustment for longer-range work past 500 yards. For most Mark V hunting and range use, the 0 MOA rail is the right pick.
No. It's drilled to line up with the factory scope mount holes already on your Mark V receiver, so it bolts right on. EGW recommends torquing the screws to 20 in/lbs with a drop of blue thread locker for a secure hold.
It accepts standard Picatinny or Weaver scope rings, so you've got plenty of options to match your optic and desired height. The full-length cross slots also let you slide your rings forward or back to fine-tune eye relief.
| UPC | 841370109210 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | 80700 |
| Color | Black |
| Length | 8.6500 |
| Model | |
| Style | Picatinny Rail |
