Description

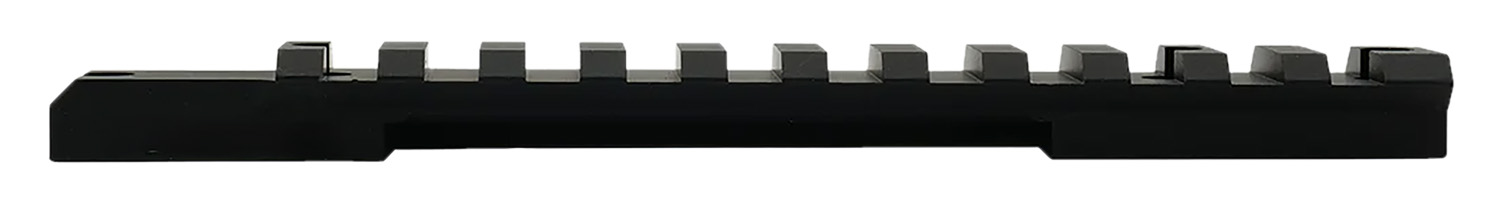

Weatherby's PEAK 44 Picatinny Rail, better known as the JRail, is a one-piece scope base cut specifically for the Mark V Magnum 9-Lug action. It carries a built-in 20 MOA of forward slope, which is the kind of extra elevation you want when you're dialing a Weatherby magnum way out there and don't want to run out of adjustment in your scope. If you're setting up a flat-shooting rifle for longer distances, that angled base does a lot of the heavy lifting before you ever touch the turret.
What Makes the JRail Different
The standout feature here is the rear cutout. That notch at the back of the rail lets you drop your scope down into low rings while still clearing large ocular bells and magnification rings, so you can set proper eye relief without fighting for clearance. It's a smart touch that gives you more flexibility on ring height and scope selection than a lot of flat-top rails offer.
Built From 7075 T6 Aluminum
The JRail is machined from aerospace-grade 7075 T6 aluminum and finished in black, so it keeps the weight down while holding up to hard use and heavy magnum recoil. It accepts both Picatinny and Weaver-style rings, which keeps your mounting options wide open whether you already have rings on hand or plan to pick up something new.
Mounting the Mark V Magnum JRail
This base attaches with #6-48 screws and Weatherby recommends 20 inch-pounds of torque to seat everything securely. A T10 Torx bit and the mounting hardware come in the box, so you've got what you need to get it on the action. Just double-check that your rifle is the Magnum 9-Lug Mark V, since this rail is cut for that receiver and not the standard 6-lug version.
Key Specifications
- Manufacturer: Weatherby
- Manufacturer Part Number: J010001
- UPC: 747115451890
- Model: PEAK 44 Picatinny Rail (JRail)
- Fitment: Weatherby Mark V Magnum 9-Lug Action
- MOA: 20 MOA
- Material: 7075 T6 Aluminum
- Finish: Black
- Mount Type: Picatinny / Weaver
- Rail Style: One-Piece
- Mounting Screws: #6-48
- Torque Spec: 20 in/lbs
- Rings Included: No
What’s Included
- Weatherby PEAK 44 JRail Picatinny scope base
- Mounting hardware (#6-48 screws)
- T10 Torx bit
Frequently Asked Questions
What rifle does the Weatherby JRail fit?
This JRail is cut specifically for the Weatherby Mark V Magnum action with the 9-Lug receiver. It is not designed for the standard 6-lug Mark V, so confirm your action before ordering. The hole pattern and fit are matched to that magnum receiver for a precise, tight mount.
Why does it have 20 MOA of elevation?
The 20 MOA forward slope gives your scope extra built-in elevation, which is a big help when shooting a Weatherby magnum at longer distances. It lets you reach out farther before running out of adjustment in your optic's turret. For most setups, a 20 MOA base pairs well with rifles meant for 500 yards and beyond.
Does the rail come with scope rings?
No, rings are not included with this JRail. It accepts standard Picatinny or Weaver-style rings, so you can choose the ring height and brand that fits your scope. The rear cutout design is handy here because it lets you run lower rings while still clearing a large ocular bell.
What do I need to install it?
The rail mounts with #6-48 screws, and both those screws and a T10 Torx bit are included in the box. Weatherby recommends torquing the screws to 20 inch-pounds for a secure hold. A dab of thread locker is a good idea to keep everything put under magnum recoil.
