WARNE RUGER M77 1″ HIGH MATTE RINGS

Description

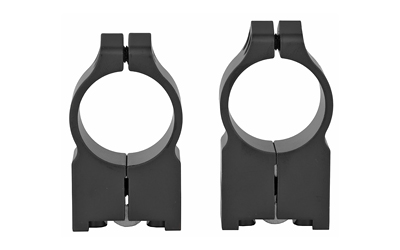

The Warne Maxima Ruger M77 1″ High Matte Rings are a model-specific ring set machined to fit the Ruger M77/Hawkeye and Super Redhawk tapered dovetail receivers. These vertically split, fixed rings are made of steel with a black-matte finish and accept optics with a 1″ tube diameter. Scope caps secure to the lower ring using four T-15 Torx socket cap screws; Warne specifies 25 in/lb of torque for those screws.

Key Specifications

• The tube diameter is 1″ to fit standard one-inch scope tubes.
• The construction material is steel for durability and recoil resistance.
• The finish is black-matte to reduce glare and provide a subdued appearance.
• The ring height is classified as high to clear objective bells on many optics.
• Designed to fit Ruger M77/Hawkeye/Super Redhawk tapered dovetail receivers.
• The mount type engages a dovetail interface on the receiver.
• Locking uses 4 Torx T-15 socket cap screws; recommended torque is 25 in/lb.
• The style is vertical split for solid clamping of the scope tube.
• The ring model is fixed (non-quick-detach).
• Product dimensions are 1.30 x 4.65 x 6.35.

These rings provide a Ruger-specific mounting solution for rifles that use the M77-style tapered dovetail, delivering a robust, low-profile interface between optic and receiver. Their steel construction and secure Torx hardware make them suitable for field use where reliable optics retention is required.
