Description

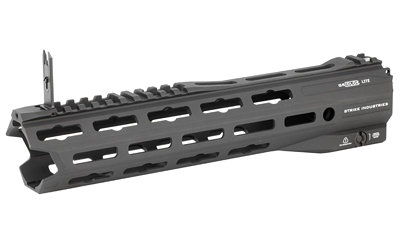

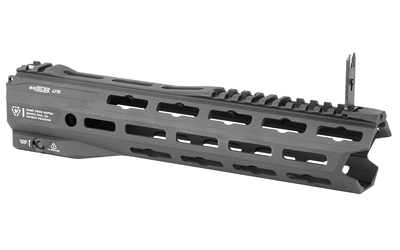

The Strike Industries Gridlok LITE 11-inch handguard takes the clever detach-and-go engineering from the original Gridlok and trims it down into a one-piece, free-float rail that keeps weight and cost in check. It tips the scale at right around 13.7 ounces with the barrel nut, so your AR-15 stays nimble whether you're running drills, chasing hogs, or just plinking on the weekend. The handguard body is machined from 6061-T6 aluminum with a corrosion-resistant anodized finish, and the barrel nut is cut from 7000-series aluminum for that lightweight-but-tough balance.
What the Quick Rail Detach Brings to the Gridlok LITE
The headliner here is the Quick Rail detach system. A simple push and pull of the QD latch pops the rail off in seconds with no tools required, which makes life a whole lot easier when you need to dial in an adjustable gas block or thread on and off a suppressor. Strike updated the latch with a locking button for earlier, more secure closure, so you get that quick-swap convenience without wondering if the rail is going anywhere.
Mounting and Sighting on the Gridlok LITE 11 Inch
Up front you've got a built-in flip-up backup iron sight already integrated into the rail, so that's one less accessory to buy and mount. M-LOK slots at the 3, 6, and 9 o'clock positions give you room for lights, lasers, bipods, and hand stops right where you want them. Out back, a 360-degree free-swivel QD socket sets you up for a clean two-point sling, and rear centering tabs with set screws help line the top rail up straight with your upper receiver.
Suppressor Clearance Built In
The forward section is cut to clear cans up to 1.57 inches in outside diameter, necking down to about 1.42 inches roughly three inches back. It also plays nicely with Strike's own muzzle devices, including the Oppressor, for that tucked-in profile. This rail is built for Mil-Spec M4 upper receivers, so it's a natural fit for most standard AR-15 builds looking to shed weight without giving up features.
Key Specifications
- Manufacturer: Strike Industries
- Model: Gridlok LITE
- Manufacturer Part Number: SI-GRIDLOK-LITE-11-BK
- UPC: 793811764253
- Length: 11 inches
- Mounting System: M-LOK at 3, 6, and 9 o'clock
- Color: Black
- Handguard Material: 6061-T6 Aluminum
- Barrel Nut Material: 7000-Series Aluminum
- Finish: Corrosion-resistant anodized
- Weight: Approx. 13.7 oz with barrel nut
- Design: One-piece free-float
- Suppressor Clearance: Up to 1.57" OD (necks to 1.42" ID after ~3")
- Sling Attachment: Integrated rear 360° free-swivel QD socket
- Compatibility: Mil-Spec M4 upper receivers
- Detach System: Tool-less Quick Rail Detach with locking button
What’s Included
- Gridlok LITE 11" handguard assembly
- Barrel nut
- Integrated flip-up front backup iron sight
- Mounting hardware
Frequently Asked Questions
Does the Gridlok LITE handguard really come off without tools?
Yes. The Quick Rail detach system uses a push-pull QD latch that lets you pull the rail off in seconds with no tools at all. That makes it easy to reach an adjustable gas block or swap a suppressor at home or out in the field. The updated latch also has a locking button for a more secure closure.
What rifles does the Gridlok LITE 11-inch handguard fit?
It's designed for Mil-Spec M4 upper receivers, which covers most standard AR-15 builds. Keep in mind it isn't set up for most piston gas blocks, some billet or side-charging uppers, or setups running an A2 front sight post gas block. If you're on a standard low-profile gas block, you're in good shape.
Will a suppressor clear inside the Gridlok LITE rail?
The front of the handguard is cut to clear cans up to 1.57 inches in outside diameter, and it necks down to roughly 1.42 inches inner diameter about three inches back from the front. It also pairs well with Strike Industries muzzle devices, including the Oppressor, for a tucked-in look. Just measure your specific can before running it under the rail.
Do I need to buy a separate front sight for the Gridlok LITE?
No. A flip-up backup iron sight is built right into the front of the handguard, so you've already got an emergency sighting option out of the box. The M-LOK slots at 3, 6, and 9 o'clock are there for your other accessories like lights, bipods, and hand stops.
