Description

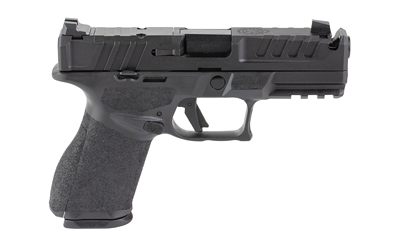

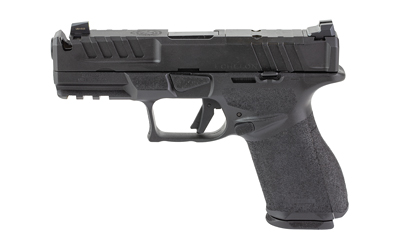

Springfield's Echelon platform already had a strong reputation before the 4.0C Comp came along, but this version raises the bar. The idea is simple: take the compact 4.0C, add a factory-integrated compensator, and give carry-focused shooters a pistol that hits harder on split times without any sacrifice to concealability. The overall length stays at 7.25 inches with a 4-inch barrel, so it carries and holsters like a compact pistol should.

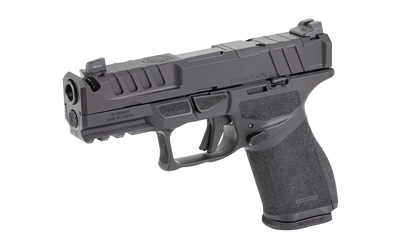

The integral compensator is machined directly into the hammer-forged barrel and billet-machined slide, with a single port on top that vents gas upward to push the muzzle back down during recoil. Because the front sight is positioned behind the comp port rather than in front of it, the sight picture stays clean and unobstructed. Real-world testing bears out the marketing: reviewers found the 4.0C Comp shoots as softly as a full-size pistol despite its shorter frame, with the snap of recoil noticeably reduced shot to shot.
Optics setup is where the Echelon genuinely separates itself from a crowded field. The Variable Interface System is built into the slide and uses a patent-pending self-locking pin design to mount over 30 different red dots directly to the slide, no adapter plates required. It is one of the most optics-inclusive systems on any production pistol right now. The tritium and luminescent U-Dot front sight pairs with a tactical rack U-Dot rear for fast, intuitive irons if you run it without glass.
At the core of the pistol is the Central Operating Group, a serialized, self-contained stainless steel chassis that houses the trigger and operating system. The COG can be moved between Echelon grip modules in seconds, which means if you want a different grip size down the road, you are not buying a new gun. This variant ships with the small grip module and three interchangeable backstraps, each with an integrated armorer's tool built into the base. The frame texture is aggressive enough for a positive grip without being punishing during extended range sessions. A full-length accessory rail sits under the dust cover for lights and lasers.
This specific SKU includes two 10-round magazines and is the version configured for areas with magazine capacity restrictions.
Key Specifications
- UPC: 706397982577
- MPN: EC9409BLC-U-COMP
- Caliber: 9mm
- Action: Striker-Fired Semi-Auto
- Barrel Length: 4 inches
- Barrel Material/Finish: Hammer-Forged Steel, Black Melonite
- Slide: Billet-Machined, Melonite Finish, Integral Compensator, Optics Ready
- Overall Length: 7.25 inches
- Weight: Approx. 24 oz (with empty flush magazine)
- Capacity: 10+1
- Sights: Tritium/Luminescent Front, Tactical Rack U-Dot Rear (Fixed)
- Optics System: Variable Interface System (VIS) – Direct-mount, 30+ optics compatible
- Frame: Black Polymer, Small Grip Module
- Safety: Trigger Blade Safety
- Magazines Included: 2 x 10-Round
- Twist Rate: 1:10
What’s Included
- Springfield Armory Echelon 4.0C Comp pistol
- 2 x 10-round magazines
- 3 interchangeable backstraps (with integrated armorer's tool)
- Double-zipper soft carrying case
Frequently Asked Questions
How does the integral compensator on the Echelon 4.0C Comp actually work?
The compensator is machined directly into the hammer-forged barrel and slide rather than being a separate muzzle device, with a single port on the top of the assembly that vents propellant gas upward during firing. That upward gas pressure pushes the muzzle back down, countering the natural tendency for the muzzle to rise under recoil. Importantly, Springfield positioned the front sight behind the vent port so the gas does not disrupt your sight picture between shots.
What optics are compatible with the Echelon 4.0C Comp?
The Echelon uses Springfield's Variable Interface System, which is a patent-pending direct-mount optics platform built into the slide itself. It is compatible with over 30 red dot sights without requiring adapter plates, which is a significant advantage over most production pistols that support only one footprint or rely on adapters. Popular options like the Trijicon RMR, Holosun 507 series, Vortex Defender, and many others mount directly to the slide.
This SKU comes with 10-round magazines. Can I use higher-capacity Echelon magazines in it?
The EC9409BLC-U-COMP is the capacity-restricted variant of the 4.0C Comp and ships with two 10-round magazines for that reason. The Echelon 4.0C is designed around the 15-round flush and 18-round extended magazine dimensions, and the frame is sized for those magazines, so mag compatibility beyond 10 rounds will depend on your location.
What is the Central Operating Group and why does it matter?
The Central Operating Group, or COG, is a self-contained, serialized stainless steel chassis that houses the Echelon's entire fire control system. It is the legal firearm component of the pistol, and it can be removed and swapped into different Echelon grip modules in seconds without tools. This means you can change grip size or even grip color without buying a new gun, which is a real practical advantage for getting the fit right.
Is the Echelon 4.0C Comp comfortable to shoot with the compensator?
Multiple reviewers and testers found the 4.0C Comp to be notably softer-shooting than its compact size would suggest, with the compensator doing measurable work to reduce muzzle flip between shots. The grip texture is aggressive enough to maintain a solid hold without being uncomfortable. The beavertail design also eliminates any risk of slide bite, which is worth mentioning on a pistol with this much slide travel.
Does the Echelon 4.0C Comp come with a warranty?
Yes, Springfield Armory backs the Echelon line with their lifetime warranty, which covers defects in materials and workmanship for the life of the original owner. If you ever need service, Springfield's customer service has a solid reputation for taking care of their customers.







Reviews
There are no reviews yet.
