Description

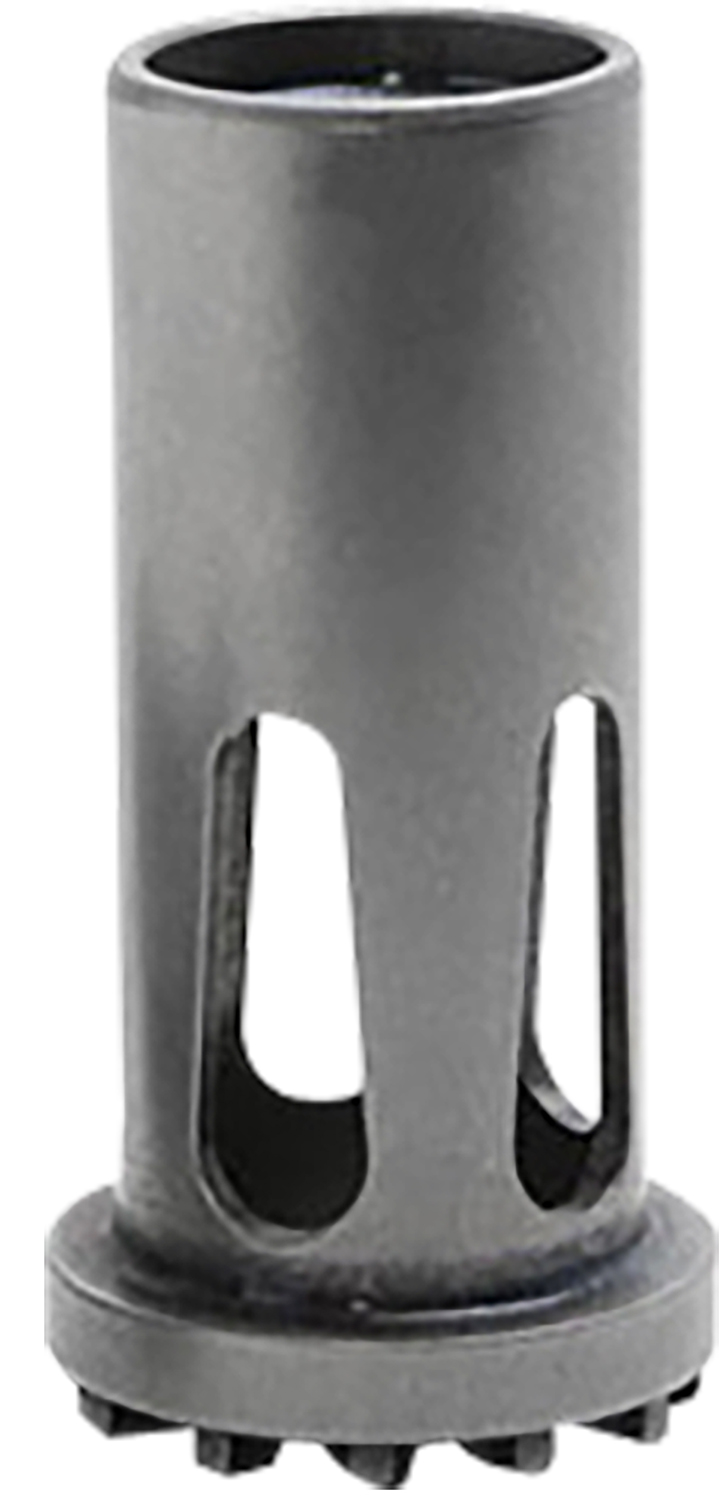

Running a .45 pistol with metric left-hand barrel threads and want to hang your SRD45 on it? This is the part that makes it happen. The Sig Sauer SRD Piston converts the SRD45 suppressor from its standard thread pattern over to M16x1 LH, the metric left-hand pitch found on a number of popular .45 hosts, including several HK pistols with factory threaded barrels. Instead of buying a whole second can, you swap one small part and keep shooting.
Built Like the Rest of the SRD Line
Sig machined this piston from 17-4 heat-treated stainless steel, the same tough alloy used for the baffles in the SRD45 itself. That matters in a booster assembly, where the piston takes a beating cycling back and forth with every shot on a tilting-barrel pistol. The matte glass-bead black finish keeps things low-key and cleans up easily after a range session, and the stainless construction shrugs off the carbon and heat that build up inside a suppressor.
Swapping the SRD Piston In
Installation is about as simple as it gets. Unscrew the booster assembly on your SRD45, pull the original piston, drop this one in its place, and reassemble. No gunsmithing marathon, no special fixtures. A few minutes at the bench and your can is ready to thread onto an M16x1 LH barrel. It works with the booster for Browning tilting-barrel pistols, so function stays exactly as Sig intended on your new host.
Why Keep an Extra SRD45 Piston Around
Even if your SRD45 shipped with an M16x1 LH piston, having a spare on hand is smart insurance. Pistons are wear items, and if you rotate one suppressor between multiple pistols with different thread patterns, keeping each piston ready to go saves time at the range. This is the factory part with Sig part number SRDPISTONM16X1LH, so fit and function are exactly what your suppressor was built around.
Key Specifications
- Manufacturer: Sig Sauer
- Model: SRD Piston
- Manufacturer Part Number: SRDPISTONM16X1LH
- UPC: 798681525157
- Caliber: .45 ACP
- Thread Pattern: M16x1 LH (left hand)
- Material: 17-4 heat-treated stainless steel
- Finish: Matte glass-bead black
- Compatible Suppressor: Sig Sauer SRD45
- Type: Suppressor booster piston
What’s Included
- Sig Sauer SRD Piston, M16x1 LH thread pattern
Frequently Asked Questions
Which suppressor does the Sig SRD Piston M16x1 LH fit?
It is made for the Sig Sauer SRD45 suppressor. You remove the original piston from the booster assembly and swap this one in its place to change the thread pattern the can accepts. It is a factory Sig part, so fit is exact.
What pistols use M16x1 LH barrel threads?
M16x1 left-hand is a common metric thread pattern on .45 ACP pistols with European roots, most notably HK models like the USP45 Tactical, HK45 Tactical, and the Mark 23. If your threaded barrel is marked M16x1 LH, this piston lets your SRD45 mount right up.
Is the SRD Piston hard to install?
Not at all. Unscrew the booster housing on the SRD45, pull the existing piston, set this one in, and reassemble. Most folks can do the swap at the bench in a few minutes with basic hand tools, though a gunsmith can handle it if you would rather not tinker.
Will this piston hold up to regular shooting?
Yes. It is machined from 17-4 heat-treated stainless steel, the same material Sig uses for the SRD45's baffle stack, so it handles the heat, carbon, and cycling forces of a booster assembly well. Keep it reasonably clean and lightly lubricated and it will run for a long time.
