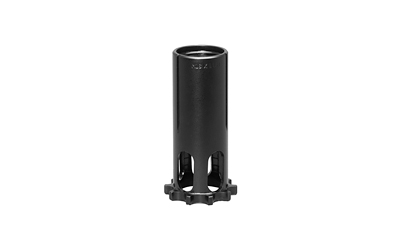

SilencerCo Piston M16x1 LH AC28 for Osprey & Octane Suppressors

UPC: 817272010183

$75.65

10 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Left-hand metric threads are the calling card of HK pistols like the USP Tactical and HK45 Tactical, and if that's what sits in your safe, this is the piston that gets your SilencerCo can mounted to it. The AC28 is threaded M16x1 LH and swaps into the booster assembly on the Osprey and Octane lines, plus the Omega 9K, Omega K series, Hybrid 46, and the 36M and 46M when running a Charlie piston mount. One suppressor, multiple hosts, and all it takes is a piston swap.

Why the SilencerCo M16x1 LH Piston Matters

On a tilting-barrel pistol, a suppressor hanging off the muzzle adds enough weight to stop the action from unlocking. That's where the Nielsen device comes in, and the piston is the heart of it. It gives the barrel that brief moment of movement it needs to cycle the slide reliably, so your .45 runs suppressed the same way it runs bare. Without the right piston, you're hand-cycling every round, and nobody wants that.

Built Like the Rest of the SilencerCo Lineup

SilencerCo machines these pistons from 17-4 stainless steel and heat-treats them, which matters on a part that takes a beating with every shot. The female threading mates cleanly with factory threaded barrels, and the whole design is meant to be swapped quickly when you move your suppressor between hosts. If you ever want to run this setup on a fixed-barrel gun like a carbine, just add a fixed barrel spacer to lock things up.

Getting the Right Fit

Thread pitch is everything here. Double-check that your barrel is cut M16x1 left-hand before ordering, since SilencerCo also makes a right-hand version of this same piston for guns like the Mark 23. If your barrel tightens counterclockwise, this left-hand piston is the one you want. It's a small part, but it's the difference between a suppressor that runs and one that just sits there.

Key Specifications

  • Manufacturer: SilencerCo
  • Manufacturer Part Number: AC28
  • UPC: 817272010183
  • Thread Pattern: M16x1 LH (left hand)
  • Caliber: .45 ACP
  • Material: 17-4 stainless steel, heat-treated
  • Compatible Suppressors: Osprey, Octane, Omega 9K, Omega K Series, Hybrid 46, Hybrid 46M & Omega 36M (with Charlie piston mount)
  • Length: 2.1 in
  • Weight: Approx. 1.3 oz
  • Threading Type: Female, attaches to threaded barrels

What’s Included

  • SilencerCo M16x1 LH piston (AC28)

Frequently Asked Questions

Which pistols use the M16x1 LH thread pattern?

M16x1 left-hand threading is most common on HK pistols, including the USP Tactical in .45 ACP and the HK45 Tactical series with factory threaded barrels. If your barrel threads on counterclockwise, it's left-hand. Always confirm your specific barrel's thread pitch before ordering, since some HK models like the Mark 23 use right-hand metric threads instead.

Will the SilencerCo AC28 piston work with my Octane or Omega 9K?

Yes. This piston fits the Osprey and Octane families along with the Omega 9K, Omega K series, and Hybrid 46. It also works with the Omega 36M and Hybrid 46M when they're set up with the Charlie piston mount. It drops into the existing booster assembly, so no extra hardware is needed.

Do I need a piston at all, or can I thread the suppressor straight on?

On a tilting-barrel pistol, you need the piston. It's the working part of the Nielsen device, which gives the barrel the movement it needs to unlock and cycle the slide with the added weight of a suppressor. Skip it and your pistol will likely fail to cycle, turning every shot into a manual operation.

Can I use this piston on a fixed-barrel firearm?

You can, but you'll want to add a SilencerCo fixed barrel spacer to the assembly. Fixed-barrel hosts like carbines and some blowback pistols don't need the recoil-boosting action, so the spacer locks the piston in place. It's a cheap add-on that makes the same suppressor work across both host types.

Additional information

UPC

817272010183

Manufacturer

Manufacturer Part Number

AC28

Caliber/Gauge

.45 ACP

Length

2.1

Model

Package Height

1.0

Package Width

4.6

Product Type

Piston

Shipping Weight

0.08

Thread Pattern

M16x1 LH
