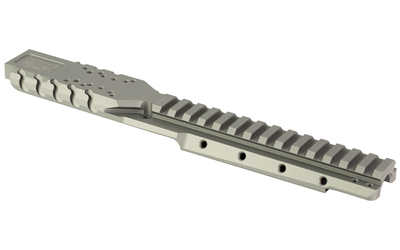

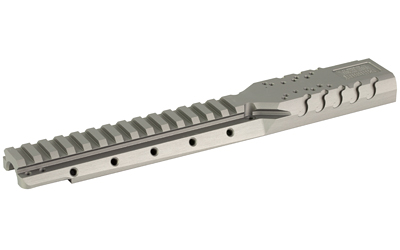

The Samson Hannibal Rail solves an old problem for anyone running a first-generation Mini-14. Getting a modern optic onto these rifles used to mean wrestling with a scope-mounting adapter that clamped over the receiver, and the results were rarely rock-solid. This handguard takes a different route. It replaces the factory plastic forend and gives you a dedicated mounting surface for a micro red dot sitting forward of the action, no clamp adapter required. It's machined from 6061-T6 aluminum with a Type III gray anodized finish, measures 9.9 inches long, and only adds about 5.6 ounces to your rifle, so you keep the light, handy feel the Mini-14 is known for.
The rear of the rail is set up to accept a direct micro red dot footprint, and Samson designed it to work with a range of popular optics including Trijicon RMR, Leupold DeltaPoint Pro, Vortex Venom, and C-MORE patterns. Forward of that sits an integrated Picatinny section, which opens the door to a magnifier, a scout-style scope, or whatever else fits your build. Because the optic mounts closer to the bore than a receiver clamp allows, you get a lower, more repeatable sight picture. One thing worth knowing up front: due to how low the Mini-14's iron sights sit, you won't be able to co-witness with a mounted red dot.
This is the version built specifically for 2007-and-earlier Mini-14 rifles with the factory straight pencil barrel, typically wearing a serial number starting with 180 and up but below 580. If your rifle has the later flanged barrel, you'll want the 2008-and-newer version instead. Samson recommends checking your build year using Ruger's serial number lookup if you're not sure. It also fits the Ruger AC-556.
Mounting directly to the barrel means the rail plays nicely with most aftermarket Mini-14 stocks, and it's compatible with Samson's own A-TM folding stock if you're going the full custom route. The package includes a 2-inch Evolution Picatinny side rail and a QD sling swivel mount that attach to the sides for even more setup options. Installation is straightforward for anyone comfortable working on their Mini, and a dab of blue thread locker on the optic screws is smart insurance against recoil.
This version is made for 2007-and-earlier Mini-14 rifles with the factory straight pencil barrel, generally with serial numbers starting at 180 and running up to but not including 580. If your rifle has the later flanged barrel or a 580-and-higher serial, you'll need the 2008-and-newer Hannibal Rail instead. It also fits the Ruger AC-556. When in doubt, run your serial number through Ruger's lookup tool before ordering.
The direct-mount footprint accepts several common patterns including Trijicon RMR, Leupold DeltaPoint Pro, Vortex Venom, and C-MORE optics. Samson notes that with so many red dots on the market, minor footprint or screw thread differences can affect compatibility, so it's worth confirming your exact model. The forward Picatinny section also lets you clamp on a scout-style scope or magnifier.
No. Because the Mini-14's factory iron sights sit fairly low, a red dot mounted on the Hannibal Rail won't line up with them for a co-witness. Most folks running this setup treat the red dot as their primary sighting system.
Yes. It mounts directly to the barrel rather than the stock, so it plays well with most aftermarket Mini-14 stocks and is fully compatible with Samson's own A-TM folding stock. That makes it a solid starting point if you're planning a larger rebuild of an older Mini.
| UPC | 850028390276 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | 03-00268-11 |
| Color | Gray |
| Length | 9.9'' |
| Model | |
| Product Type | Handguard |
| Style | PICATINNY |
