Description

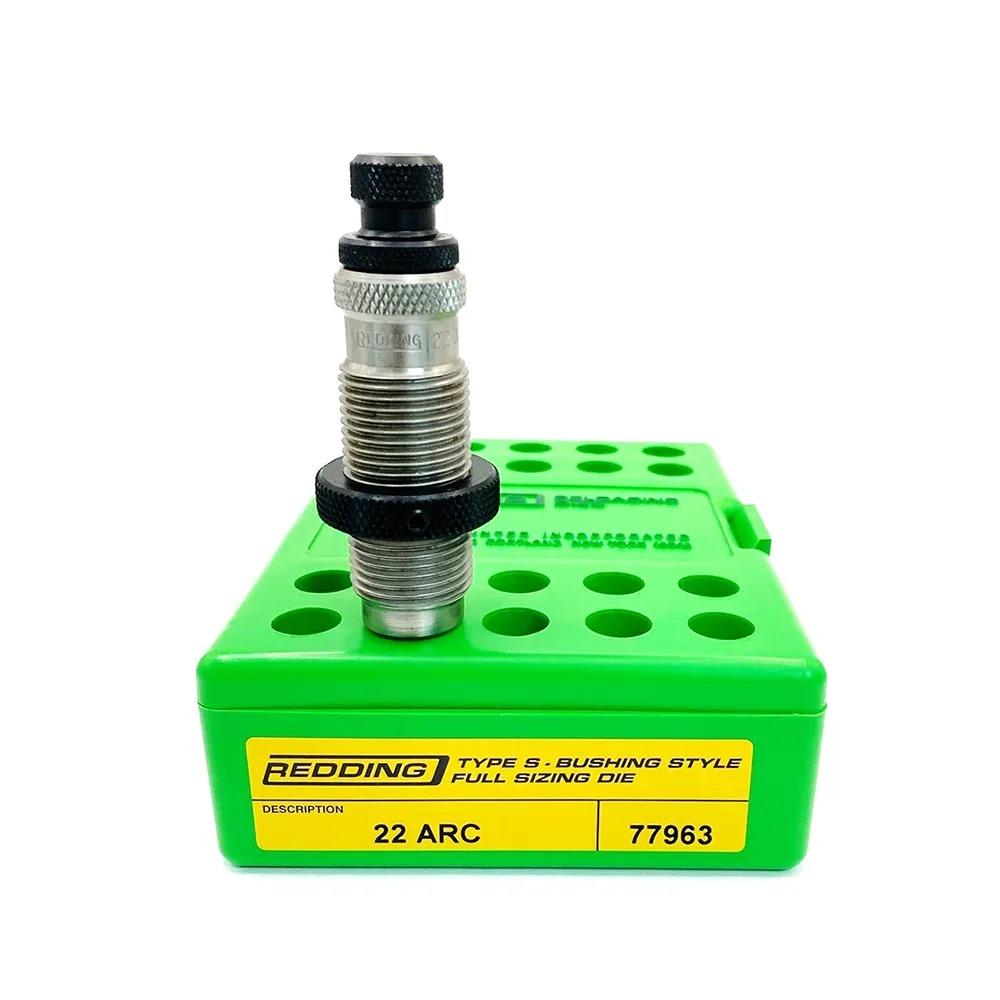

The Redding 22 ARC Type S Full Length Bushing Die handles your brass in a single stroke, sizing the case body, bumping the shoulder back, and squaring up the neck all at once. What sets the Type S apart from a plain full length die is the interchangeable bushing system. Instead of relying on a fixed neck diameter and an expander button to do the heavy lifting, you drop in a bushing that sizes the neck to exactly the diameter you choose. That means you decide how much neck tension your loads get, which is a big deal when you're chasing tight groups out of a 22 ARC.
Dialing In Neck Tension With the 22 ARC Type S Die
Bushings come in .001" increments, so getting your tension right is pretty straightforward. Measure the outside neck diameter of a loaded round, then subtract .001" to .002" to account for brass spring-back. That number is the bushing you want. Most folks running a bolt gun land somewhere around .002" of tension, though plenty of handloaders bump that up a touch depending on the rifle and the brass. Bushings are sold separately in both heat-treated steel and titanium nitride, the latter being a nice option if you want to cut down on sizing friction and stress on your necks.
What the Redding Type S Bushing Die Brings to the Bench
The bushing floats slightly in the die so it self-centers on the case neck, which helps keep everything concentric and your runout low. There's also an adjustable decapping rod, so if you only want to size part of the neck length you can set it up that way. Pull the bushing and the internal guts entirely and the die doubles as a body die, which is a handy trick when you want to size the body and shoulder without touching the neck at all.
This die threads into any standard 7/8"-14 press and uses the #12 shellholder for the 22 ARC. It's a smart pick for anyone loading precision ammo for this cartridge who wants real control over the one thing that quietly affects accuracy the most, which is how your case holds the bullet.
Key Specifications
- Manufacturer: Redding
- Caliber: 22 ARC
- Die Type: Type S Full Length Bushing Sizing Die
- Number of Dies: 1
- Bushing Increments: .001"
- Bushing Range: .241" to .251"
- Bullet Diameter: 0.224"
- Shellholder: #12 (part 11012)
- Thread: 7/8"-14 standard press
- Manufacturer Part Number: 77963
- UPC: 611760779633
- Shipping Weight: 0.73 lbs
What’s Included
- One Redding 22 ARC Type S Full Length Bushing Sizing Die
- Adjustable decapping rod
- Standard size button
- Decapping pin retainer
- Die box
Frequently Asked Questions
Does the Redding 22 ARC Type S die come with a bushing?
No, bushings are sold separately so you can pick the exact size that matches your brass and your target neck tension. They're available in .001" increments in both heat-treated steel and titanium nitride. For the 22 ARC, bushings in the .241" to .251" range cover you.
How do I figure out which bushing size to buy for this die?
Measure the outside neck diameter of a loaded round with a good micrometer, then subtract about .001" to .002" to allow for brass spring-back. That final number is your bushing size. Keep in mind you can't measure a sized case to work this out, it has to be a loaded round with a bullet seated.
Can the 22 ARC Type S bushing die be used as a body die?
Yes. Remove the bushing along with the internal parts and the die will size the case body and bump the shoulder without touching the neck. That flexibility makes it a nice two-in-one tool on the bench.
What's the difference between a Type S bushing die and a standard full length die?
A standard full length die has a fixed neck diameter and relies on an expander button to set final neck size. The Type S lets you choose the neck diameter directly with an interchangeable bushing, so you control neck tension precisely and size the neck as little as necessary. That generally means better concentricity and longer brass life.
