Description

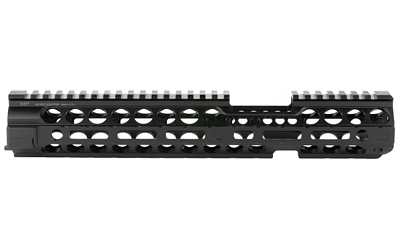

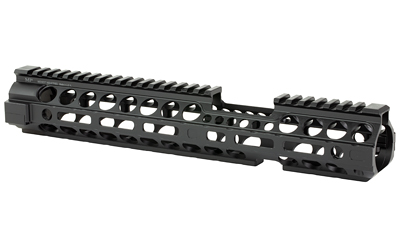

The Midwest Industries 20 Series is a two-piece, full-length free-float handguard built for AR-15 carbines that still wear a fixed front sight base or pinned gas block. The whole idea here is simple: get a true free-float forend without tearing down the front end of your rifle or buying an armorer's kit. It clamps around the standard GI barrel nut already on your gun, runs a continuous top rail, and opens up a ton of M-LOK real estate for lights, lasers, bipods, and grips.
What Makes the 20 Series Handguard Tick
This one is machined from 6061 aluminum with a Type 3 hard coat anodized finish, so it stays light on the rifle while giving you a stiff, no-flex platform. The 12.625-inch length extends out past the front sight tower, which means you gain extra rail and M-LOK space right where you want it for a longer sight radius or forward-mounted gear. You also get five anti-rotation QD sockets built in for push-button swivels, so setting up a sling is quick and clean.
Installing the 20 Series on Your AR-15
Because it's a two-piece design, you don't have to yank a pinned A2 front sight or gas block. You remove the delta ring assembly, then clamp the two halves together over your existing mil-spec barrel nut and torque it down. Folks who have run these consistently report a tight, wiggle-free fit once everything is snugged up, and since the handguard mounts only to the barrel nut and never touches the barrel, you won't get point-of-impact shift from slings or hand pressure.
Where This One Earns Its Keep
Midwest Industries has a long-standing reputation for fit and finish, and the 20 Series backs it up. If you've got a classic carbine build with a front sight tower and you want that modern, continuous top rail and M-LOK setup without a full rebuild, this is a proven, no-nonsense way to get there. It's a smart upgrade for anyone who likes their existing configuration but wants free-float performance and room to hang accessories.
Key Specifications
- Manufacturer: Midwest Industries
- Manufacturer Part Number: MI-20XXM
- UPC: 812102033110
- Model: 20 Series
- Length: 12.625 inches
- Style: Carbine / Extended
- Mounting Interface: M-LOK
- Top Rail: Monolithic continuous Picatinny (M1913)
- Design: Two-piece full-length free float
- Material: 6061 Aluminum
- Finish: Type 3 Hard Coat Anodized, Black
- QD Sockets: Five anti-rotation QD sockets
- Width: 1.840 inches
- Height: 2.17 inches
- Barrel Nut: Installs on GI barrel nut (not included)
- Fitment: AR-15 / M4 carbines
What’s Included
- Midwest Industries 20 Series two-piece M-LOK handguard
- Wrench
- Mounting hardware
Frequently Asked Questions
Do I need to remove my front sight to install the 20 Series handguard?
No, and that's the whole point of the two-piece design. You keep your fixed A2 front sight base or pinned gas block right where it is. You just remove the delta ring assembly and clamp the two rail halves together over your existing barrel nut.
Does the 20 Series M-LOK handguard come with a barrel nut?
No, it installs on the standard GI mil-spec barrel nut already on your rifle, so there's no need to swap one in. If your upper uses a proprietary or non-standard barrel nut, you'd need to fit a GI nut first before this handguard will clamp on correctly.
Is this a true free-float handguard?
Yes. Once installed, the handguard mounts solely to the barrel nut and never touches the barrel. That means slings, bipods, and hand pressure won't shift your point of impact the way a standard drop-in handguard can.
What can I mount on the 20 Series handguard?
You've got a continuous top Picatinny rail for optics and backup sights, full-length M-LOK slots around the sides and bottom for lights, lasers, bipods, and grips, plus five built-in QD sockets for sling swivels. Since it extends past the front sight tower, you also get extra mounting space up front.
