Description
If you're loading 7mm 162 grain ELD Match or A-MAX bullets and the standard stem that came with your die is leaving a ring on the bullet or nicking the tip, this is the part that fixes it. The Hornady 397107 seating stem is machined with a cavity profiled to the long, slippery ogive of these match bullets, so it makes contact in the right spot and seats them straight without deforming anything up front. That contact point matters more than people think, because a stem pushing on the wrong part of the bullet can introduce runout and inconsistent seating depth, which is exactly what you're fighting against when you load for accuracy.
What the 397107 Seating Stem Is Built For

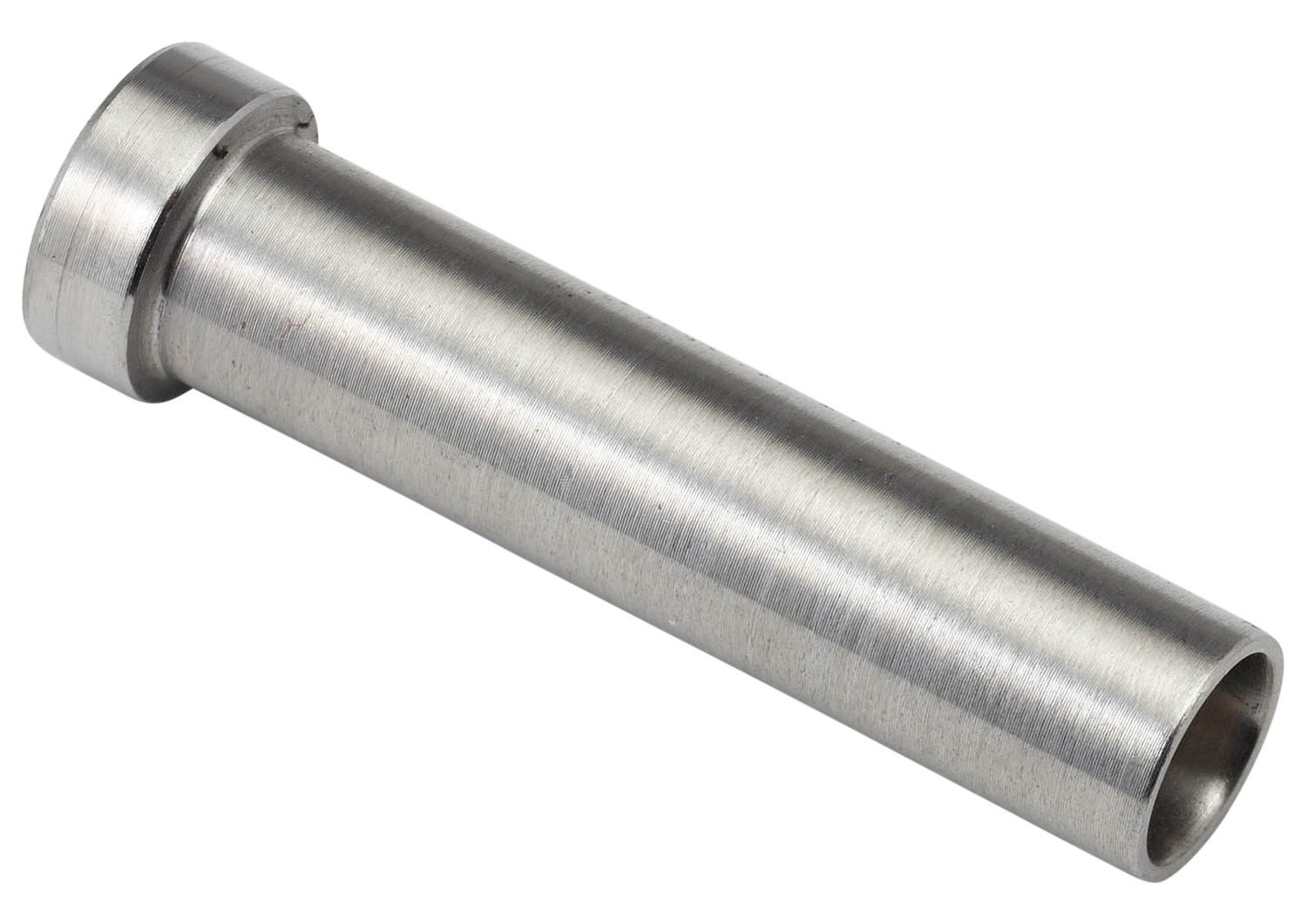

This stem is cut specifically for the 7mm (.284") 162 grain ELD Match, and it also handles the 162 grain A-MAX, which shares a similar nose profile. The internal shape matches the bullet's curve so the bearing pressure spreads across the ogive instead of poking the polymer tip. For folks chasing tight groups in cartridges like 7mm-08, 7mm Rem Mag, or 280 Ackley, that consistency in seating is where a lot of the precision comes from.
Fitting the ELD Match Stem to Your Die
Installation is about as simple as reloading gear gets. You back out and unthread the standard seating stem from your Hornady Custom Grade New Dimension seating die, thread this one in its place, and reset your seating depth. No tools beyond what's already on your bench. Worth noting this is designed to fit Hornady Custom Grade dies only and is not meant for other manufacturers' seating dies, so it's a match made for the Hornady reloading family.
If match 7mm loads are your thing, keeping the right stem on hand is one of those small, inexpensive upgrades that pays off every time you pull the handle. It's a quiet little part that does real work toward cleaner bullets and more repeatable ammo.
Key Specifications
- Manufacturer: Hornady
- Manufacturer Part Number: 397107
- UPC: 090255971071
- Caliber: 7mm (.284")
- Bullet Weight: 162 gr
- Bullet Compatibility: ELD Match and A-MAX
- Die Compatibility: Hornady Custom Grade New Dimension Seating Dies
- Type: Replacement Bullet Seating Stem
- Country of Origin: United States
What’s Included
- One Hornady 397107 ELD Match seating stem (7mm .284, 162gr)
Frequently Asked Questions
What bullets does the Hornady 397107 seating stem work with?
It's profiled for the 7mm (.284") 162 grain ELD Match bullet, and it also fits the 162 grain A-MAX since they share a similar nose shape. The cavity is shaped to contact the ogive correctly so it seats those bullets without flattening the polymer tip.
Will this ELD Match stem fit dies from other brands?
No. This stem is designed specifically for Hornady Custom Grade New Dimension seating dies and is not compatible with other manufacturers' dies. The fit and threads are made for the Hornady die family only.
How do I install the 397107 seating stem?
Pull the standard seating stem out of your Hornady Custom Grade seating die, thread this one in its place, and then reset your seating depth. It takes a minute and doesn't require any special tools.
Why would I need a dedicated stem instead of the one that came with my die?
Standard stems can contact long-ogive match bullets in the wrong spot, which may leave a ring on the bullet or deform the tip and add runout. This profiled stem spreads pressure across the right part of the ogive for straighter, more consistent seating, which matters a lot when you're loading for accuracy.
