Description

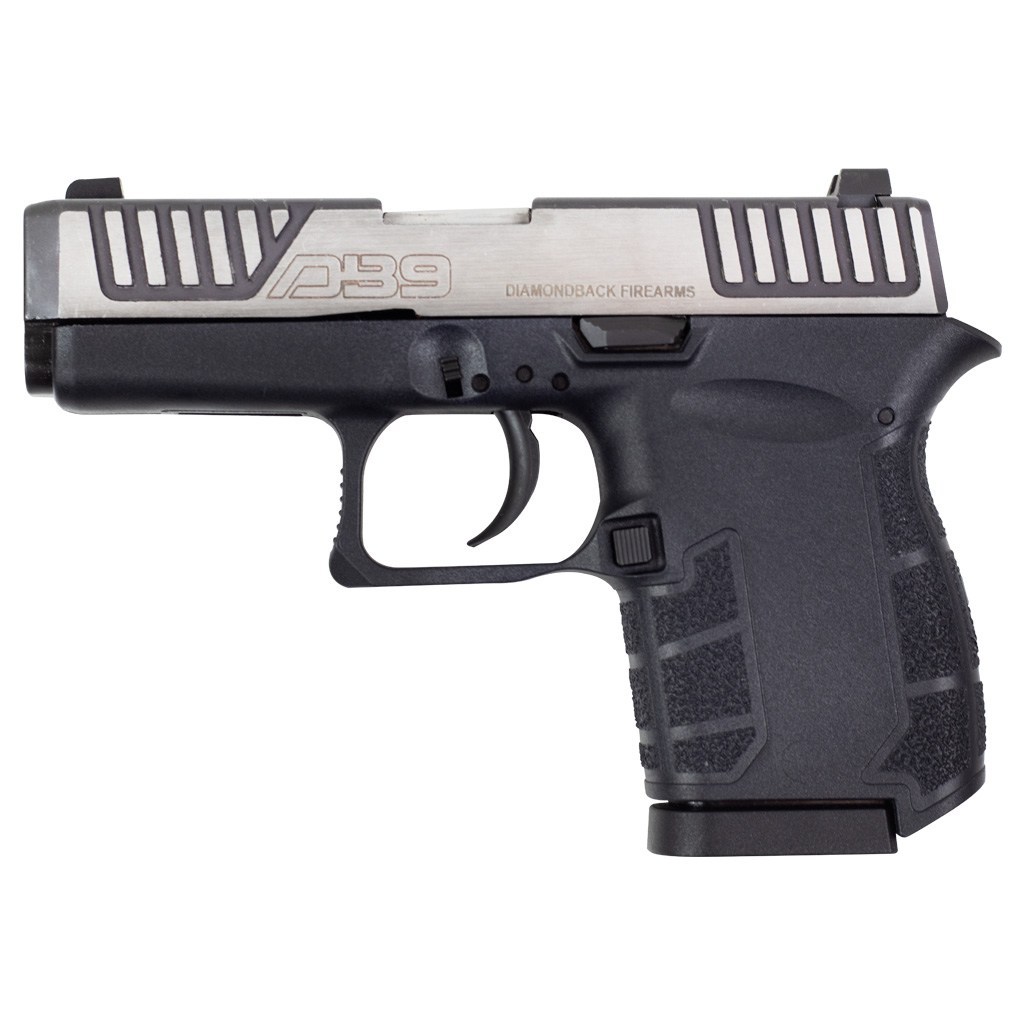

At just under 5.75 inches long and barely 0.9 inches wide, the DB9 Gen IV is about as close to disappearing on your person as a 9mm pistol gets. Diamondback builds this one entirely at their Cocoa, Florida facility, and the Gen IV represents the most refined version of the platform to date. The duo-tone finish gives it a clean, distinct look with the black-accented stainless slide contrasting nicely against the black polymer frame.
The heart of the DB9 is Diamondback's ZERO-Energy striker firing system, which pairs a mechanical firing pin block with a steel trigger running dual connecting bars. The result is a consistent, double-action-only pull that comes in around 5.5 lbs. with a short reset. It's a trigger setup that's straightforward and predictable, which is exactly what you want in a carry gun. The slide and barrel are engineered using Finite Element Analysis, which Diamondback uses to optimize strength and reduce felt recoil, and both are treated with a corrosion-resistant coating that holds up to daily carry.
Sights are a 3-dot setup with a 4.51-inch sight radius, and they're Glock-compatible, so swapping them out for aftermarket options is easy if you want to personalize the gun. The all-steel captured recoil system keeps things running smoothly, and the steel magazine catch gives a confident feel when seating or dropping a mag. Field stripping is tool-free, so no fumbling around looking for a punch.
With a 6+1 capacity in a single-stack format, the DB9 Gen IV is purpose-built for deep concealment, pocket carry, IWB, or as a lightweight backup gun. It's a great fit for anyone who wants a genuine 9mm in a package that travels with you everywhere without becoming a burden.
Key Specifications
- Manufacturer: Diamondback Firearms
- MPN: DB0200P031
- UPC: 810035752627
- Caliber: 9mm (9x19mm)
- Action: Striker-Fired, Double Action Only
- Barrel Length: 3.1 in. Stainless Steel
- Barrel Twist: 1:10 RH
- Overall Length: 5.73 in.
- Width: 0.9 in.
- Height (Flush Mag): 4.0 in.
- Weight (Unloaded): 13.4 oz.
- Capacity: 6+1
- Trigger Pull: ~5.5 lbs. with short reset
- Sights: 3-Dot, Glock-Compatible, Windage Adjustable
- Frame: Black Polymer
- Slide: Stainless Steel, Black Accents, Serrated
- Recoil System: All-Steel Captured
- Made In: USA (Cocoa, Florida)
What’s Included
- Diamondback DB9 Gen IV pistol
- 1x 6-round magazine
Frequently Asked Questions
How small is the Diamondback DB9 Gen IV compared to other pocket 9mm pistols?
The DB9 Gen IV is genuinely one of the smallest 9mm pistols available, measuring 5.73 inches long, 4 inches tall with the flush magazine, and just 0.9 inches wide. At 13.4 oz. unloaded, it sits comfortably in a cargo pocket, a jacket pocket, or an IWB holster without printing. It's a true pocket 9, not just a compact with a short barrel.
What is the ZERO-Energy striker system on the DB9?
Diamondback's ZERO-Energy system is designed so the striker is not pre-tensioned when the gun is at rest, which means the firing pin can't travel forward unless the trigger is fully pulled. It works in conjunction with a mechanical firing pin block for an added layer of drop safety. It's a straightforward internal safety approach that keeps the gun carry-ready without any external safety levers to manage.
Are the sights on the DB9 Gen IV adjustable or replaceable?
The DB9 Gen IV comes with 3-dot sights that are windage adjustable and built to Glock-compatible dimensions. That means a wide range of aftermarket sights designed for Glock pistols will drop right in if you want to upgrade to night sights or a different style. The 4.51-inch sight radius is solid for a pistol this size.
How many magazines does the DB9 Gen IV come with?
It ships with one 6-round magazine. If you plan to carry it regularly, picking up a spare or two is a good idea. Extended magazines with a pinky rest are also available and can help fill out the grip for shooters with larger hands.
Is the Diamondback DB9 Gen IV easy to field strip and clean?
Yes, the DB9 Gen IV is designed for tool-free disassembly, meaning you don't need a punch or any special tools to break it down for cleaning. Diamondback specifically engineered out the removable pins that made earlier micro-compact pistols more of a chore to maintain. Basic field strip and reassembly is quick and straightforward.
What kind of ammunition does the DB9 Gen IV feed reliably?
The DB9 Gen IV feeds standard 9mm (9x19mm) ammunition and has been tested with a variety of bullet weights ranging from 115-grain through 147-grain loads. Like most micro-compact pistols, it tends to run most reliably once it has a few hundred rounds through it and the action has broken in. Quality factory-loaded ammunition in both FMJ and hollow point configurations is the way to go.
