Rimfire cans have one universal headache: lead fouling. Dead Air went after that problem from two directions with the RXD22Ti. First, the included XRF muzzle brake is designed to capture lead at the mount before it migrates into the suppressor. Second, the core itself is a 3D-printed, PVD-coated single piece, so there is no stack of individual baffles to fight apart when cleaning day rolls around. Between the two, you spend more time shooting and a lot less time scraping.
Built Light, Built From the Dead Air and Ruger Partnership

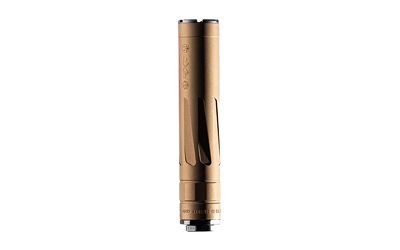

The RXD22Ti came out of the RXD line, a joint effort between Dead Air Silencers and Ruger, and the pedigree shows. The tube and retaining cap are 6AL4V titanium wrapped in a High-Temp Cerakote Burnt Bronze finish, bringing the whole setup to 5.6 ounces with the brake and just 4.6 ounces without it. At 5.6 inches long and 1.1 inches in diameter, it disappears on the end of a Mark IV or 10/22 without making the gun feel nose-heavy or dragging down your sight picture.
RXD22Ti Caliber Range and Ratings
This is more than a plinking can. It is rated for .22 LR, .22 Mag, .17 HMR, .17 WSM, and 5.7×28 with an 850 ft-lb muzzle energy ceiling and no barrel length restrictions. Full auto is approved with .22 LR, while the hotter magnum rimfire rounds are semi-auto rated. That range covers everything from backyard squirrel rifles to a suppressed 5.7 pistol with one tax stamp.
Mounting the RXD22Ti
The XRF brake threads on at 1/2×28, which covers the vast majority of threaded rimfire barrels out there, and the quick-detach interface means swapping the can between hosts takes seconds instead of a trip to the workbench. A wrench kit comes in the box for installation and takedown. For anyone building out a rimfire trainer, a small game rig, or just wanting quiet range sessions, this one earns its spot in the safe.
Key Specifications
- Model: RXD22Ti
- Manufacturer Part Number: RXD22TIBB
- UPC: 810128162913
- Caliber Rating: .22 LR, .22 Mag, .17 HMR, .17 WSM, 5.7×28
- Length: 5.6 inches
- Diameter: 1.1 inches
- Weight: 5.6 oz with XRF brake, 4.6 oz without
- Material: 6AL4V Grade 5 Titanium
- Core: 3D-printed PVD-coated single-piece Triskelion
- Finish: High-Temp Cerakote, Burnt Bronze
- Thread Pattern: 1/2×28
- Muzzle Energy Rating: 850 ft-lbs
- Full Auto Rated: Yes, .22 LR
- Barrel Length Restrictions: None
- ATF Type: Silencer
What’s Included
- RXD22Ti suppressor
- XRF rimfire muzzle brake (1/2×28)
- Wrench kit
Frequently Asked Questions
What calibers can I shoot through the Dead Air RXD22Ti?
The RXD22Ti is rated for .22 LR, .22 Mag, .17 HMR, .17 WSM, and 5.7×28 with a muzzle energy ceiling of 850 ft-lbs. There are no barrel length restrictions on any of those. Full auto use is approved with .22 LR, while the faster magnum rimfire cartridges are limited to semi-auto fire.
How hard is the RXD22Ti to clean?
Easier than most rimfire cans. The core is a single 3D-printed piece with a PVD coating, so there is no baffle stack to pry apart, and the included XRF muzzle brake captures a good portion of lead before it ever enters the suppressor. That combination stretches out your cleaning intervals and makes takedown a lot less of a chore when it is time.
Will the RXD22Ti fit my Ruger 10/22 or Mark IV?
Yes, as long as the barrel is threaded 1/2×28, which covers factory threaded 10/22s, Mark IV models, and most other threaded rimfire hosts. The suppressor was developed through the Dead Air and Ruger collaboration, so those platforms are a natural pairing. The XRF brake interface also lets you move the can between multiple hosts quickly.
How much weight does the RXD22Ti add to my gun?
Barely any. The suppressor itself weighs 4.6 ounces, or 5.6 ounces with the XRF brake attached, thanks to the 6AL4V titanium tube and retaining cap. At 5.6 inches long and 1.1 inches in diameter, it will not make a pistol feel front-heavy or throw off the balance of a lightweight rimfire rifle.
