Description

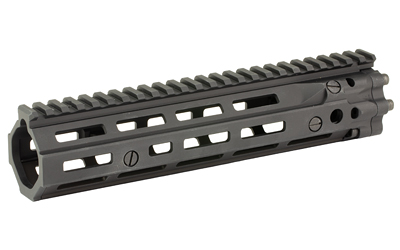

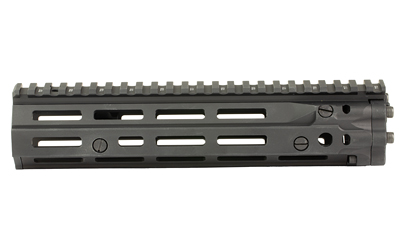

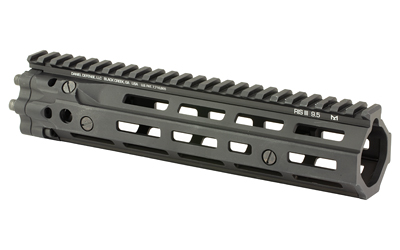

Daniel Defense built its reputation on the RIS II, the two-piece rail that U.S. Special Operations Command has fielded since 2006. The RIS III is the next step in that lineage. It keeps the battle-tested 6-bolt bolt-up mounting and the free-float barrel design that made the II so trusted, then trims weight and swaps the old rail sections for M-LOK. The result is a handguard that feels lighter in the hand without giving up any of the rigidity you'd expect from a rail this pedigree.
The 9.5-inch length is a natural fit for shorter carbine and SBR-style builds where you want your support hand out toward the muzzle but still need room for a light and a hand stop. Up top you get an uninterrupted Mil-Spec 1913 Picatinny rail, so mounting optics, backup irons, or a magnifier stays flat and consistent from receiver to muzzle. That continuous top surface is one of the big reasons people reach for this design over a slick-top handguard.
What Sets the RIS III Apart
The rail is machined from aircraft-grade 6061-T6 aluminum and carries seven M-LOK attachment positions along its length for lights, foregrips, bipods, and pressure switches. Integral QD sling swivel points sit on both sides, so you can run a two-point sling from either shoulder without eating up an M-LOK slot. Builders who have run these consistently mention how solid the fit and finish feel, with no warping or bending when you crank accessories down tight.
Mounting the RIS III on Your AR
The bolt-up system clamps down hard on the upper receiver and eliminates the wobble you sometimes get with cheaper rails. If you're already running a Daniel Defense RIS II, the upper is backwards compatible and you can often reuse your existing rear plate, which saves you from pulling the barrel nut. It fits standard AR-15, M4, and M16 pattern uppers, and the proprietary barrel nut wrench comes in the box so you have what you need to get it torqued to spec.
Key Specifications
- Manufacturer: Daniel Defense
- Model: RIS III
- Length: 9.5 in
- Color / Finish: Black
- Material: Aircraft-Grade 6061-T6 Aluminum
- Attachment Standard: M-LOK
- M-LOK Positions: 7
- Top Rail: Continuous Mil-Spec 1913 Picatinny
- Mounting System: 6-Bolt Bolt-Up System
- Sling Attachment: Integral QD Swivel Points, Both Sides
- Fit: AR-15 / M4 / M16 Pattern Uppers
- Country of Origin: USA
- Manufacturer Part Number: 01-004-02976-006
- UPC: 818773023047
What’s Included
- RIS III 9.5in M-LOK rail assembly
- Bolt-Up System barrel nut
- Mounting hardware
- Barrel nut wrench
Frequently Asked Questions
Does the RIS III come with a barrel nut and the tools to install it?
Yes. The RIS III ships with the Bolt-Up System barrel nut, the mounting hardware, and the proprietary Daniel Defense barrel nut wrench needed to install it. Daniel Defense recommends torquing the barrel nut to 55 ft-lbs, so you'll want a 1/2-inch drive torque wrench on hand as well. Plan on a few standard AR tools for pulling your old gas block or handguard during the swap.
Will the RIS III fit my existing Daniel Defense RIS II setup?
It will. The RIS III upper is backwards compatible with the RIS II bolt-up system, so if you're already running a RIS II you can often reuse the existing rear plate and skip removing the barrel nut entirely. That backwards compatibility is a big time-saver and one of the reasons folks upgrade rather than starting from scratch. It also fits standard AR-15, M4, and M16 pattern uppers.
What length rifle is the 9.5-inch RIS III best suited for?
The 9.5-inch length works well on shorter carbine builds and SBR-style uppers where you want a compact footprint but still need room for a weapon light and a hand stop or vertical grip. It gives you plenty of the continuous 1913 top rail for optics and irons while keeping the overall package trim. Match it to your gas system and barrel length as you would any free-float rail.
How many accessory attachment points does the RIS III have?
The rail features seven M-LOK attachment positions spread along its length, plus integral QD sling swivel points on both sides. That gives you room for lights, lasers, foregrips, bipods, and pressure switches without crowding your setup. The QD points also mean you can mount a sling without giving up an M-LOK slot.
