Description

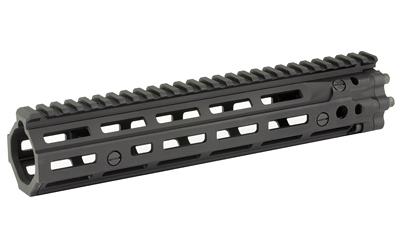

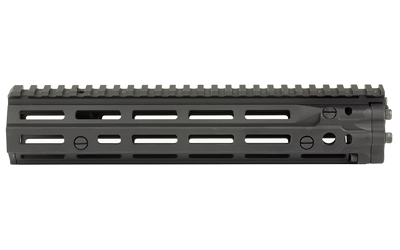

The RIS III is Daniel Defense taking everything that made the RIS II a Special Operations mainstay and dragging it into the M-LOK era. This 10.5-inch version keeps the two-piece free-float design that never touches the barrel, so your harmonics and accuracy stay put no matter how hard you run the gun. The heart of it is the same 6-bolt Bolt-Up System that clamps the handguard to your upper with zero wiggle, machined from aircraft-grade 6061-T6 aluminum and held together with Grade 8 mil-spec fasteners.
What Sets the RIS III Apart From the RIS II
The biggest upgrade here is weight and modularity. Where the RIS II leaned on full quad-rail real estate, the RIS III gives you seven M-LOK positions spread around the handguard, letting you hang lights, foregrips, and pressure pads exactly where your hands want them instead of adding bulk everywhere. You still get that uninterrupted Mil-Spec 1913 top rail running the full length, so optics, backup irons, and night vision line up clean. There are also integral QD swivel points built into both sides, which means no aftermath of clamp-on sling mounts eating up rail space.
Building or Upgrading With the RIS III
One thing that makes this rail easy to live with is backward compatibility. The RIS III shares the same barrel nut and Bolt-Up Plate as the RIS II, and its upper rail even plays nice with the RIS II lower rail. If you already have DD hardware in the parts bin, you are ahead of the game. It fits standard mil-spec AR-15, M4, and M16 pattern uppers, and works on billet uppers with the correct front cutouts.
Installation follows the familiar DD process: torque the barrel nut with the proprietary Bolt-Up wrench, then anchor the handguard with six screws using the included hex wrench. It is a straightforward job for anyone comfortable with a torque wrench and a vise, and once it is buttoned up it earns the "rock solid" reputation these rails have carried for years.
Key Specifications
- Manufacturer: Daniel Defense
- Model: RIS III
- Manufacturer Part Number: 01-004-03261-006
- UPC: 818773023061
- Length: 10.5 inches
- Color / Finish: Black
- Material: Aircraft-Grade 6061-T6 Aluminum
- Top Rail: Continuous Mil-Spec 1913 Picatinny
- Attachment System: M-LOK, 7 positions
- Mounting: 6-Bolt Bolt-Up System
- Fasteners: Grade 8 Mil-Spec
- Sling Mounts: Integral QD swivel points, both sides
- Barrel Fit: Free-Float, AR-15 / M4 / M16 pattern uppers
- Weight: Approx. 13.7 oz
What’s Included
- Daniel Defense RIS III 10.5" handguard
- Bolt-Up Plate
- Six mounting screws (two short, four standard)
- Hex wrench for handguard screws
- Bottom panel
Frequently Asked Questions
Will the RIS III fit my standard AR-15 upper?
Yes. The RIS III is designed to mount to standard mil-spec AR-15, M4, and M16 pattern upper receivers. It also works on billet uppers that have the correct cutouts machined at the front. As with any free-float rail, you will want a low-profile gas block underneath it.
Is the RIS III compatible with my existing RIS II hardware?
It is. The RIS III uses the same barrel nut and Bolt-Up Plate as the RIS II, so if you already own that hardware you can reuse it. On top of that, the RIS III upper rail is fully compatible with the RIS II lower rail, which makes swapping and mixing components simple.
What tools do I need to install the RIS III?
You will need the proprietary Daniel Defense Bolt-Up System barrel nut wrench used with a 1/2-inch drive torque wrench, plus a vise and upper receiver rod to anchor the upper. Daniel Defense includes the hex wrench for the six handguard screws in the box, though a ball-tip hex driver makes threading them easier. The barrel nut wrench is sold separately.
Does the RIS III really keep the barrel free-floating?
Yes, that is one of its core strengths. The two-piece design never makes contact with the barrel, which keeps barrel harmonics undisturbed and helps maintain accuracy. This is the same free-float approach that earned the RIS II its long-running reputation with Special Operations units.
