Description
This is the real deal for anyone building a clone-correct MK18 or just wanting the toughest quad rail on the market. The Daniel Defense MK18 RIS II started life as a solution to a very specific problem: US Special Operations Command needed a way to free-float the barrel and still run an M203 without extra parts or special tools. Daniel Defense answered with a two-piece design that got adopted for the SOPMOD Block II program, and it has been beating up on hard use ever since.
What Makes the MK18 RIS II Different

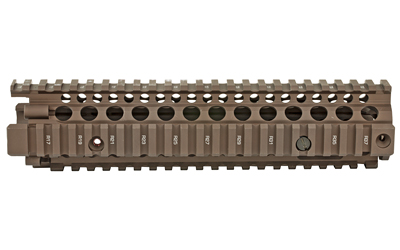

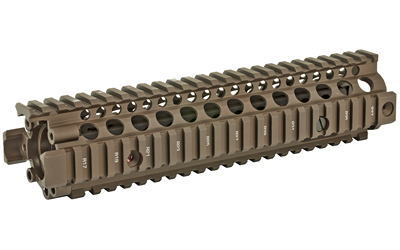

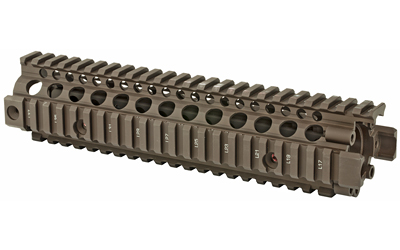

Machined from aircraft-grade 6061-T6 aluminum and finished in a Mil-Spec Type III hard coat anodized Flat Dark Earth, this rail is built to take abuse and keep its zero. The heart of it is the patented Bolt-Up barrel nut system, which uses a steel barrel nut and six bolts to clamp the handguard to your upper receiver. That six-bolt clamp is what gives the RIS II its reputation for a rock-solid, no-wobble mount that holds up round after round.
Sizing and Fit for MK18 Builds
At 9.55 inches and right around 14 ounces, this length is proportioned for the MK18's 10.3-inch barrel running a carbine-length gas system. It free-floats the barrel so nothing is putting pressure on it, which helps accuracy, and the continuous uninterrupted top rail lets you run your optic and backup sights on one plane. All four sides carry Mil-Spec 1913 Picatinny rails, so mounting lights, lasers, pressure pads, and a vertical grip is straightforward.
Getting the MK18 RIS II Installed
One thing worth knowing up front: this rail requires a low-profile gas block for clearance, and Daniel Defense specs it to run with their MK12 Low Profile Gas Block. Installation means pulling the flash hider, front sight base, handguard cap, and old barrel nut, then torquing the DD barrel nut to 55 ft-lbs and bolting the rail to the Bolt-Up Plate. If you are chasing a true-to-spec MK18 CQBR, this is the exact rail that platform calls for.
Key Specifications
- Manufacturer: Daniel Defense
- Model: MK18 RIS II
- Manufacturer Part Number: 01-004-08020-011
- UPC: 852548002813
- Color / Finish: Flat Dark Earth, Mil-Spec Type III Hard Coat Anodized
- Material: 6061-T6 Aircraft-Grade Aluminum
- Rail Length: 9.55 in
- Weight: 14.1 oz
- Width: 2.23 in
- Height: 2.25 in
- Inside Diameter: 1.15 in
- Rail Type: Mil-Spec 1913 Picatinny, Quad Rail
- Design: Two-Piece, Free-Floating
- Mounting System: Patented 6-Bolt Bolt-Up with Steel Barrel Nut
- Gas System: Carbine
What’s Included
- MK18 RIS II two-piece handguard
- Steel Bolt-Up barrel nut and mounting hardware
- Barrel nut wrench
- Allen wrench
- 3 rail covers
Frequently Asked Questions
Does the MK18 RIS II work with any AR-15 upper?
It mounts on standard AR-15, M4, and M16 pattern upper receivers using the included Bolt-Up barrel nut system. Some proprietary uppers with non-standard barrel nut threads or oversized barrel extensions will not accept it, so verify your upper is Mil-Spec before ordering. It is dimensioned specifically for MK18-pattern builds with a 10.3-inch barrel and carbine gas.
Do I need a special gas block for the MK18 RIS II?
Yes. The rail requires a low-profile gas block for proper clearance under the handguard, and Daniel Defense specs it to run with their MK12 Low Profile Gas Block. A standard front sight base or a tall gas block will not fit inside the rail dimensions.
What comes with the MK18 RIS II for installation?
The rail ships with the steel Bolt-Up barrel nut, mounting hardware, a barrel nut wrench, an Allen wrench, and three rail covers. Installation involves removing the flash hider, front sight base, handguard cap, and old barrel nut, then torquing the DD barrel nut to 55 ft-lbs. You do not have to remove the barrel to install it.
Is this the correct rail for a clone-correct MK18 build?
It is. This is the exact quad rail Daniel Defense produces for USSOCOM's MK18 CQBR, and the 9.55-inch FDE version is the length and finish those builds call for. Pair it with a 10.3-inch carbine-gas barrel and a low-profile gas block for a true-to-spec result.
