Description

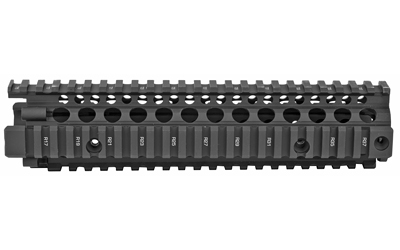

The Daniel Defense MK18 RIS II is about as legit as it gets when it comes to quad rails. This is the exact free float handguard designed for the USSOCOM MK18 CQBR, developed at the request of Special Operations Command for the SOPMOD II program. SOCOM needed a way to free float an M203 grenade launcher without extra parts, and Daniel Defense engineered the whole system into the rail itself. That heritage is a big part of why this rail shows up on so many clone-correct builds and serious duty guns.
At 9.5 inches, this length is proportioned for MK18-pattern rifles running a 10.3in barrel and a carbine-length gas system. It's built from aircraft-grade 6061-T6 aluminum with a Mil-Spec Type III hard coat anodized finish in black, and it wears Mil-Spec 1913 Picatinny rails on all four sides so your lights, lasers, grips, and sights all bolt right up. The upper rail runs uninterrupted from the receiver forward, giving you a continuous top platform for irons or a night vision setup.
What Makes the MK18 RIS II Hold Zero
The secret sauce is Daniel Defense's patented Bolt-Up barrel nut system. The steel barrel nut torques to 55 ft-lbs, then the two-piece rail clamps to a bolt-up plate with six bolts for a genuinely rigid, no-wobble fit. Once it's on there, it stays put and keeps your accessories tracking true. A quick heads up during install: per the instructions, the bolt-up plate stays loose until the rail halves clamp it down, so don't panic if it moves before that step.
Building a Clone or a Workhorse With the RIS II
Whether you're chasing a period-correct MK18 or you just want one of the toughest rails on the market bolted to your upper, this one earns its reputation. Keep in mind it's designed to run with a low-profile gas block since the full-length quad rail sits over the gas system. Made in the USA and backed by Daniel Defense's satisfaction guarantee against defects in materials and workmanship.
Key Specifications
- Model: MK18 RIS II
- Manufacturer: Daniel Defense
- Manufacturer Part Number: 01-004-08020-006
- UPC: 815604014052
- Rail Length: 9.5 in (9.55 in)
- Style: 2-Piece Free Float Quad Rail
- Material: Aircraft-Grade 6061-T6 Aluminum
- Finish: Mil-Spec Type III Hard Coat Anodized
- Color: Black
- Rail Type: Mil-Spec 1913 Picatinny (Quad)
- Mounting System: Patented 6-Bolt Bolt-Up System
- Barrel Nut: 4140 Steel
- Barrel Nut Torque: 55 ft-lbs
- Gas System: Carbine
- Country of Origin: Made in the USA
What’s Included
- MK18 RIS II handguard (upper and lower rail sections)
- Bolt-Up plate
- Steel barrel nut
- Mounting hardware and bolts
- Allen wrench
- Daniel Defense barrel nut wrench
- Installation instructions
Frequently Asked Questions
Will the MK18 RIS II fit any AR-15 upper?
The Bolt-Up barrel nut is designed to work on standard AR-15, M4, and M16 pattern upper receivers and barrels. That said, the 9.5in length is sized specifically for MK18-style builds running a 10.3in barrel and a carbine-length gas system. If you're building on a different barrel length or gas system, make sure the rail clears your setup before ordering.
Do I need a special tool to install the RIS II?
Daniel Defense includes the barrel nut wrench and an Allen wrench in the box, so you have what you need to torque it down. You'll want the barrel nut set to 55 ft-lbs, then the six bolts clamp the two rail halves to the bolt-up plate. A flat-tip screwdriver comes in handy too, and a torque wrench is smart if you want it done by the book.
Does the bolt-up plate being loose during install mean something is wrong?
Nope, that's normal and it trips a lot of first-time installers up. Per the instructions, the bolt-up plate stays loose after you torque the barrel nut and only gets clamped tight once the rail sections bolt around it. Follow the steps in order and it'll lock up solid when everything is buttoned down.
Can I still run an M203 with this rail?
Yes, that's the whole reason SOCOM had it designed this way. When the lower rail section is removed, the two-piece design lets you free float a standard M203 without adding extra parts. The plumbing needed to make that work is built right into the rail.
