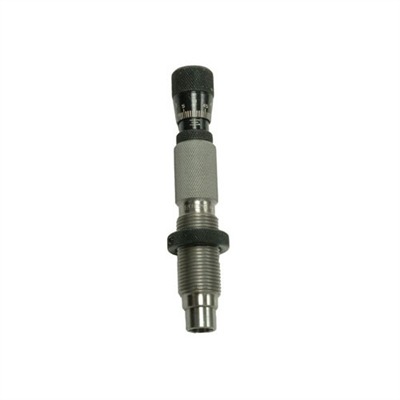

Description
If you're chasing single-digit ES and tight groups out of your 338 Lapua Mag, the Redding Competition Bushing Neck Die is the tool that takes the guesswork out of neck sizing. This is the die that serious handloaders reach for when they've already prepped and sorted their brass and want sizing that's as consistent as the rest of their process. It uses an interchangeable bushing system, so you pick the exact bushing that matches your brass and the neck tension you're after. Keep in mind bushings are sold separately, which is standard across the Competition line and lets you tune the die to your specific load rather than settle for a one-size approach.
How the Competition Bushing Neck Die Earns Its Keep
What sets this die apart from a standard Type S bushing die is the internal sliding sleeve. The case is fully supported and aligned inside the tightly chambered sleeve before the bushing ever touches the neck. As the ram comes up, the sleeve rides upward and the floating bushing self-centers on the neck, which is a big reason this design produces such clean concentricity and straight necks. The decapping rod stays in line using the die's internal parts as a linear support, much like a firing pin rides in its channel.
Dialing In Your 338 Lapua Neck Sizing
The micrometer-adjustable top is where the real control lives. You can set exactly how much of the neck length gets sized and return to a favorite setting any time, which is a lifesaver during load development and when you're bouncing between loads. To pick the right bushing, measure the outside neck diameter of a loaded round and subtract about .001 inch from your smallest average. Moly-coated bullets often call for a slightly tighter bushing.
This die is built for the handloader who's turned or sorted necks and doesn't want to use a sizing button, though carbide size button kits are available separately if you decide you want one. Redding's been making precision reloading gear for the better part of a century, and this die is a good example of why their stuff ends up on so many competition benches.
Key Specifications
- Manufacturer: Redding
- Cartridge: 338 Lapua Magnum
- Die Type: Competition Bushing Neck Sizing Die
- Adjustment: Micrometer-adjustable top
- Case Support: Internal floating sliding sleeve
- Bushings: Interchangeable, sold separately
- Thread: 7/8-14
- Manufacturer Part Number: 56594
- UPC: 611760565946
What’s Included
- One Redding Competition Bushing Neck Sizing Die (338 Lapua Mag)
- Decapping rod assembly
Frequently Asked Questions
Does the Competition Bushing Neck Die come with bushings?
No, this die ships without bushings, which is standard for the Redding Competition line. You buy the bushing separately to match your specific brass and the neck tension you want. This lets you fine-tune the die to your exact load instead of being stuck with a fixed sizing dimension.
How do I pick the right bushing size for my 338 Lapua Mag?
Measure the outside neck diameter of a loaded cartridge with a precision micrometer. Take your smallest average loaded neck diameter and subtract about .001 inch to get your starting bushing. If you're running moly-coated bullets, you may want to go .001 to .002 inch tighter.
What makes this different from a Redding Type S neck bushing die?
The Competition die uses an internal sliding sleeve that fully supports and aligns the case before the bushing contacts the neck, which helps produce straighter, more concentric necks. It also has a micrometer-adjustable top so you can control exactly how much of the neck length gets sized and return to a setting later. The Type S die sizes the neck before the case is fully supported, so the Competition design is the step up for precision work.
Can this die full-length size or bump the shoulder?
No, this is a neck sizing die only, so it sizes the case neck and does not touch the body or shoulder. If your cases get tight to chamber after repeated firings, you'll want to add a body die to bump the shoulder back. Many handloaders run this neck die for most firings and only hit the body when needed.
