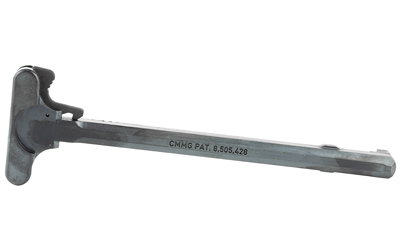

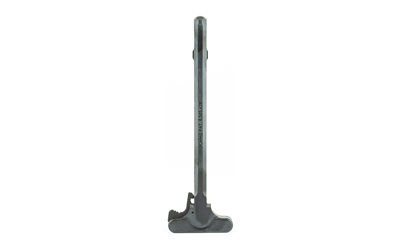

Anyone who's run a .22 LR conversion in an AR knows the frustration: you're cruising along, then a little spent rimfire case ejects up into the hollow channel of a standard charging handle and everything grinds to a stop. This CMMG 22BA596 Anti-Jam Charging Handle Assembly was built specifically to solve that headache. Instead of the deep open channel found on a normal AR handle, it uses a filled-in, reinforced channel that leaves only the small amount of clearance needed to cycle the .22 bolt, so those tiny casings have nowhere to wedge themselves.
This handle is purpose-made for CMMG's .22 ARC conversion kits, their dedicated .22 LR uppers, and the matching 22ARC bolt carrier group. The shallow groove on the underside is the whole trick here. Folks who've fought stovepiping and ejection hiccups with the standard handle regularly report that swapping to this one clears up the problem right away. It won't cure every quirk of running rimfire through an AR platform, but it knocks out the most common and most annoying stoppage.
CMMG makes this from durable glass-filled nylon, which handles the low pressure of .22 LR shooting just fine and holds up over thousands of rounds. It follows a mil-spec style form factor, so installation is the same drop-in process as any standard AR charging handle, no gunsmithing or fitting required. The black finish keeps it looking right at home in your upper.
Keep in mind this is designed around CMMG's own conversion and bolt setup, so it's not the answer for dedicated rimfire ARs like the S&W M&P 15-22, which use a different bolt group entirely. If you're running a CMMG conversion or a CMMG .22 LR upper, though, this is the handle that was engineered for it. It's backed by CMMG's Lifetime Quality Guarantee too.
Standard AR charging handles have a deep hollow channel underneath, and when you run a .22 LR conversion, small spent casings can eject up into that space and cause a jam. This handle fills in that channel and uses a much shallower groove, leaving only the clearance needed to cycle the .22 bolt. That takes away the spot where casings would otherwise get lodged, cutting down on stovepipes and ejection stoppages.
It's designed specifically for CMMG's own .22 ARC conversion kits, the 22ARC bolt carrier group, and CMMG dedicated .22 LR uppers. It uses a standard mil-spec form factor, so it drops into compatible AR uppers without any fitting. It is not intended for dedicated rimfire rifles like the S&W M&P 15-22, which use a completely different bolt group.
For .22 LR use, yes. Rimfire operates at much lower pressure than .223/5.56, so the polymer construction holds up well, and plenty of owners report running thousands of rounds without issues. If you were slamming full-power centerfire loads through it that would be a different conversation, but this handle is purpose-built for the light demands of a .22 setup.
No. It installs exactly like a standard AR-15 charging handle, so it's a simple drop-in swap on your compatible CMMG upper. Just pull your existing handle and slide this one in.
| UPC | 815835010168 |
|---|---|
| Manufacturer | |
| Manufacturer Part Number | 22BA596 |
| Color | CHARGING HANDLE ASSEMBLY |
| Length | 7.6000 |
| Model | |
| Product Type | Charging Handle |
