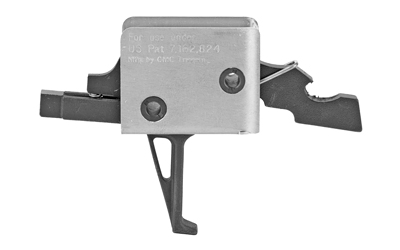

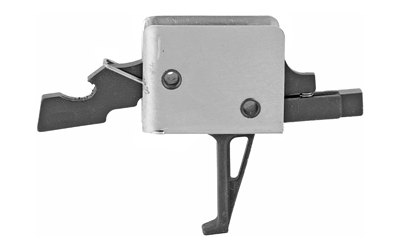

CMC Single-Stage Flat Drop-In Trigger 2-2.5 lb Small Pin AR-15/AR-10

UPC: 859464006512

$174.00

85 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

CMC built its name as the original drop-in AR trigger maker, and the 90503 is a great example of why so many builders reach for their gear. This is a self-contained cartridge unit tuned for a single-stage break in the 2 to 2.5 pound range, with a flat trigger shoe that gives your finger a wider, more predictable surface to press against. If you've been fighting the grit and creep of a standard mil-spec trigger, dropping this in is one of the fastest ways to feel a real difference on the range.

What the CMC 90503 Brings to Your AR

The break is genuinely crisp with no perceptible creep before the hammer drops, and the reset is short and positive, so fast follow-up shots come naturally. CMC machines the critical sear engagement surfaces with a proprietary process that produces a mirror-smooth 1-2 RMS finish, which is why the pull feels glass-smooth rather than gritty. Internally it runs a rocket wire hammer spring for fast lock time and reliable ignition with both commercial and military-grade ammo, so you're not trading reliability for a light pull. The pull weight is factory pre-set and not user adjustable, which keeps things simple and consistent from the first shot on.

Fit and Build on the Flat Drop-In Trigger

This is the small pin version, built around .154 inch trigger and hammer pins, and it ships with a CMC anti-walk pin set to lock everything in place. It fits mil-spec AR-15 and AR-10 style rifles, which covers just about everything except older Colt guns made between 1991 and late 2009 that use the larger .172 pin. The guts are made from 8620 alloy steel and S7 tool steel held to tight tolerances of plus or minus .001 inch, so this thing is built to hold up round after round.

Installing the CMC Drop-In Trigger

Installation is about as painless as an AR upgrade gets. You drop the one-piece assembly into your lower, install the supplied pins, snug the pinset screws to no more than 12 in-lb, and run a safety check. No loose springs to chase, no screws creeping loose over time, and no gunsmith required. Every unit is hand assembled and hand tested before it leaves CMC.

Key Specifications

  • Manufacturer: CMC Triggers
  • MPN: 90503
  • UPC: 859464006512
  • Model: Drop-In
  • Trigger Type: Single-Stage
  • Trigger Shoe: Flat
  • Pull Weight: 2 to 2.5 lb (factory pre-set, non-adjustable)
  • Pin Size: Small Pin (.154 in)
  • Fits: Mil-Spec AR-15 and AR-10 style rifles
  • Material: 8620 Alloy Steel and S7 Tool Steel
  • Tolerances: +/- .001 in on engagement surfaces
  • Color: Black
  • Length: 7.7 in

What’s Included

  • CMC Single-Stage Flat Drop-In Trigger assembly (self-contained cartridge)
  • CMC Small Anti-Walk Pin Set (.154 in)

Frequently Asked Questions

Will the small pin CMC flat drop-in trigger fit my AR?

If your rifle is not a Colt, or it's a Colt built before 1991 or after 2009, the .154 inch small pins are what you need. This unit fits mil-spec AR-15 and AR-10 style lowers. The only common exception is Colt rifles made between 1991 and late 2009, which use the larger .172 pin, so grab the large pin version if that's your gun.

Can I adjust the pull weight on this CMC trigger?

No, the pull is factory pre-set in the 2 to 2.5 pound range and is not user adjustable. That's actually a plus for a lot of folks since there's nothing to tweak and nothing to knock out of spec. You get the same consistent break from the first shot to the last.

How hard is it to install the CMC drop-in trigger?

It's one of the easiest AR upgrades out there. The whole thing is a self-contained cartridge, so you drop it into the lower, install the supplied anti-walk pins, and snug the pinset screws to no more than 12 in-lb. Do a safety check when you're done and you're good to go, no gunsmith needed.

Is this trigger reliable with different ammo?

Yes. It uses a rocket wire hammer spring designed for fast lock time and dependable ignition with both commercial and military-grade ammunition. You're getting a light, crisp pull without giving up reliable primer strikes.
