Battle Arms Development WORKHORSE 15in M-LOK Rail & .750 Gas Block Kit

UPC: 810033785795

$199.95

12 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

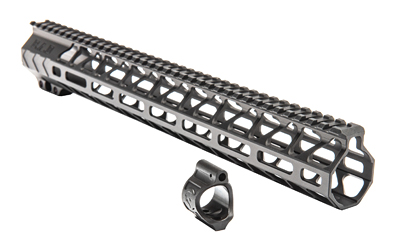

The WORKHORSE 15in Rail and .750 Gas Block kit is Battle Arms Development's answer for anyone tired of running a factory front sight base and a rattly drop-in handguard. It bundles two parts you'd normally buy separately, the full-length WORKHORSE free-float M-LOK rail and BAD's own low-profile gas block, so you can free-float your barrel and clean up the front end in one shot. The whole thing is built and machined in the USA and finished in Type 3 black hardcoat anodizing that shrugs off heat and hard use.

What the WORKHORSE 15in Rail Brings to the Build

The rail itself is cut from 6061-T6 aluminum and comes in at just 8.8 ounces on its own, or 10.5 ounces once the included barrel nut is on. You get M-LOK slots at the 3, 6, and 9 o'clock positions with skeletonized cuts everywhere else to keep weight down, plus a continuous 1913 Picatinny top rail with BAD's signature notch cut that lines up with the upper receiver. The 1.36-inch internal diameter leaves generous clearance around the barrel, which plays nice with most low-profile gas blocks and a lot of suppressor-ready setups. Being a one-piece design, it stays rigid and there's no worry about barrel contact throwing off your accuracy.

The .750 Gas Block That Comes With It

The kit includes BAD's low-profile .750 gas block, CNC machined from steel and finished to sit cleanly under the rail. It's sized for standard government and most .750 barrel journals, so it drops right into place on a typical AR-15 barrel without fighting for room.

Getting the WORKHORSE Kit Installed

Retrofitting an existing rifle with this kit is straightforward, but it's not a hand-tool job. You'll want an upper vise block, an armorer's wrench, and a torque wrench that reads in foot-pounds to get the barrel nut and gas block set correctly. Take your time with the gas block alignment and you'll have a lighter, better-balanced front end that's ready for a bipod, light, or optic setup.

Key Specifications

  • Manufacturer: Battle Arms Development
  • Model: WORKHORSE 15in Rail and .750 Gas Block
  • Manufacturer Part Number: WH-UR-UPG
  • UPC: 810033785795
  • Rail Length: 15 inches
  • Rail Material: 6061-T6 Aluminum
  • Finish: Type 3 Black Hardcoat Anodized
  • Color: Black
  • Attachment Type: M-LOK (3, 6, 9 o'clock)
  • Top Rail: Full-Length 1913 Picatinny
  • Rail Weight: 8.8 oz (10.5 oz with barrel nut)
  • Internal Diameter: 1.36 inches
  • Gas Block Size: .750 Low Profile
  • Platform: Mil-Spec AR-15
  • Origin: Made in USA

What’s Included

  • 1x WORKHORSE 15in Free-Float M-LOK Rail
  • 1x WORKHORSE .750 Low Profile Gas Block
  • Barrel nut and mounting hardware

Frequently Asked Questions

Does the WORKHORSE 15in rail kit come with a barrel nut?

Yes, the barrel nut and mounting hardware are included with the rail. The rail weighs 8.8 ounces on its own and 10.5 ounces with the barrel nut attached. You'll still want an armorer's wrench and a foot-pound torque wrench to install it properly.

Will the .750 gas block fit my barrel?

The included low-profile gas block is sized for .750-inch diameter barrel journals, which covers standard government profile and most common AR-15 barrels. If your barrel has a different gas block journal diameter, this one won't be the right fit. It's worth measuring your journal before ordering if you're unsure.

Is the WORKHORSE 15in handguard suppressor compatible?

The 1.36-inch internal diameter gives you generous clearance around the barrel, which works with many suppressor-ready builds and most low-profile gas blocks. That said, clearance depends on your specific can and barrel setup, so check your suppressor's outer diameter against the rail's inner diameter. The free-float design also keeps the handguard from touching the barrel, which helps with heat and harmonics.

Does this fit AR-10 or DPMS pattern rifles?

This kit is designed for Mil-Spec AR-15 receivers and will not fit Armalite or DPMS/LR-308 pattern uppers. It's a direct-fit replacement for standard carbine handguards on the AR-15 platform. If you're running an AR-10 style rifle, you'll need a rail built specifically for that pattern.
