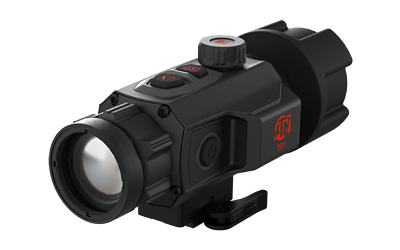

ATN TICO 6 Thermal Clip-On 384×288, 35mm

Description

The ATN TICO 6 is a thermal clip-on designed to convert a compatible day optic into a thermal imaging platform while preserving the original scope setup. It uses a 384×288 thermal sensor paired with ATN’s 6th Generation thermal engine and SharpIR processing to produce enhanced thermal imagery across varied lighting and weather conditions. The unit also functions as a removable handheld monocular when the eyepiece is used independently. Built with a magnesium alloy body and a quick-detach mount, the TICO 6 balances durability with rapid installation for field use.

Key Specifications

• The sensor resolution is 384×288 for thermal detection.
• The detector uses an uncooled VOx focal plane array with a 50 Hz refresh rate.
• The objective lens is 35 mm, F/1.0 for the thermal optics.
• Optical magnification is 1× in clip-on mode.
• The listed detection range is 2710 m.
• The eyepiece/display is a 0.49″ OLED (1920×1080) for image viewing.
• Onboard recording and storage use 64 GB of internal memory.
• Power is provided by 1 × 18650 replaceable rechargeable battery with approximately ~8 hrs runtime.
• Construction is magnesium alloy and the unit carries an IP67 rating.
• Physical weight is listed as 524 g / 1.15 lbs with dimensions of 163 × 85 × 74 mm.

With integrated wireless connectivity, USB-C power and data, recoil-activated video, and multiple color palettes, the TICO 6 is a versatile thermal accessory for situational awareness, hunting, search and rescue, and security applications. Its clip-on capability and removable eyepiece let you keep your existing daytime optic while adding thermal functionality when needed, delivering a practical, field-ready solution for users who require reliable thermal imaging without carrying multiple dedicated optics.
