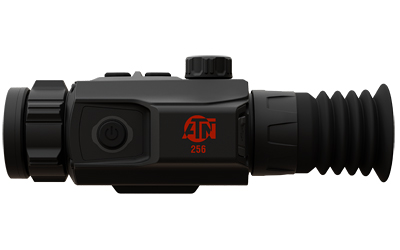

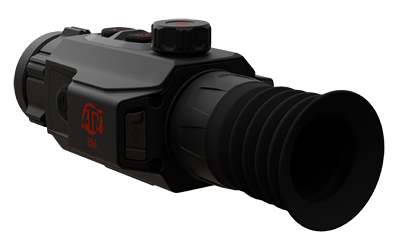

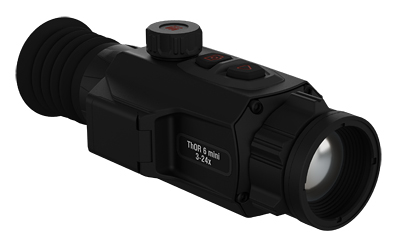

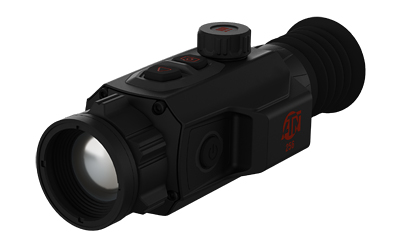

ATN ThOR 6 Mini 256 Thermal Scope 3.5-28x

Description

The ATN ThOR 6 Mini pairs a compact magnesium-alloy chassis with ATN’s sixth-generation thermal engine to deliver a portable, feature-rich thermal optic. This configuration uses a 12µm VOx uncooled focal plane array paired with a 256×192 sensor and a 25 mm F/1.0 lens. It offers a wide magnification range useful for close-range observation through extended engagements, plus onboard recording, Wi‑Fi hotspot capability and 64 GB of internal storage. Designed for demanding field use, the unit supports Recoil Activated Video (RAV) and is rated IP67 for weather resistance.

Key Specifications

• The magnification range is 3.5-28x to cover near and extended observation distances.
• The sensor resolution is 256×192 for the configuration specified.
• The detector uses a 12µm VOx uncooled focal plane array.
• The thermal sensitivity (NETD) is ≈20 mK for the 256×192 configuration.
• The refresh/frame rate is 50 Hz for smooth imaging.
• The objective lens is 25 mm F/1.0 for the listed optical configuration.
• The display is a 0.32-inch OLED at 800×600 resolution.
• Digital zoom options include 1×, 2×, 4×, and 8× for flexible sighting.
• Internal storage is 64 GB with video and audio recording capability.
• The unit runs on 1 × 18650 rechargeable battery (replaceable) with approximately 8 hrs battery life per manufacturer info.

With a compact footprint, advanced image processing and onboard recording, the ThOR 6 Mini is built for users who need reliable thermal observation and documentation in the field. Its combination of a sensitive thermal core, step-and-smooth zoom, robust construction and integrated connectivity makes it well suited for hunting, wildlife observation and tactical fieldwork where clear thermal imagery and durable performance are priorities.
