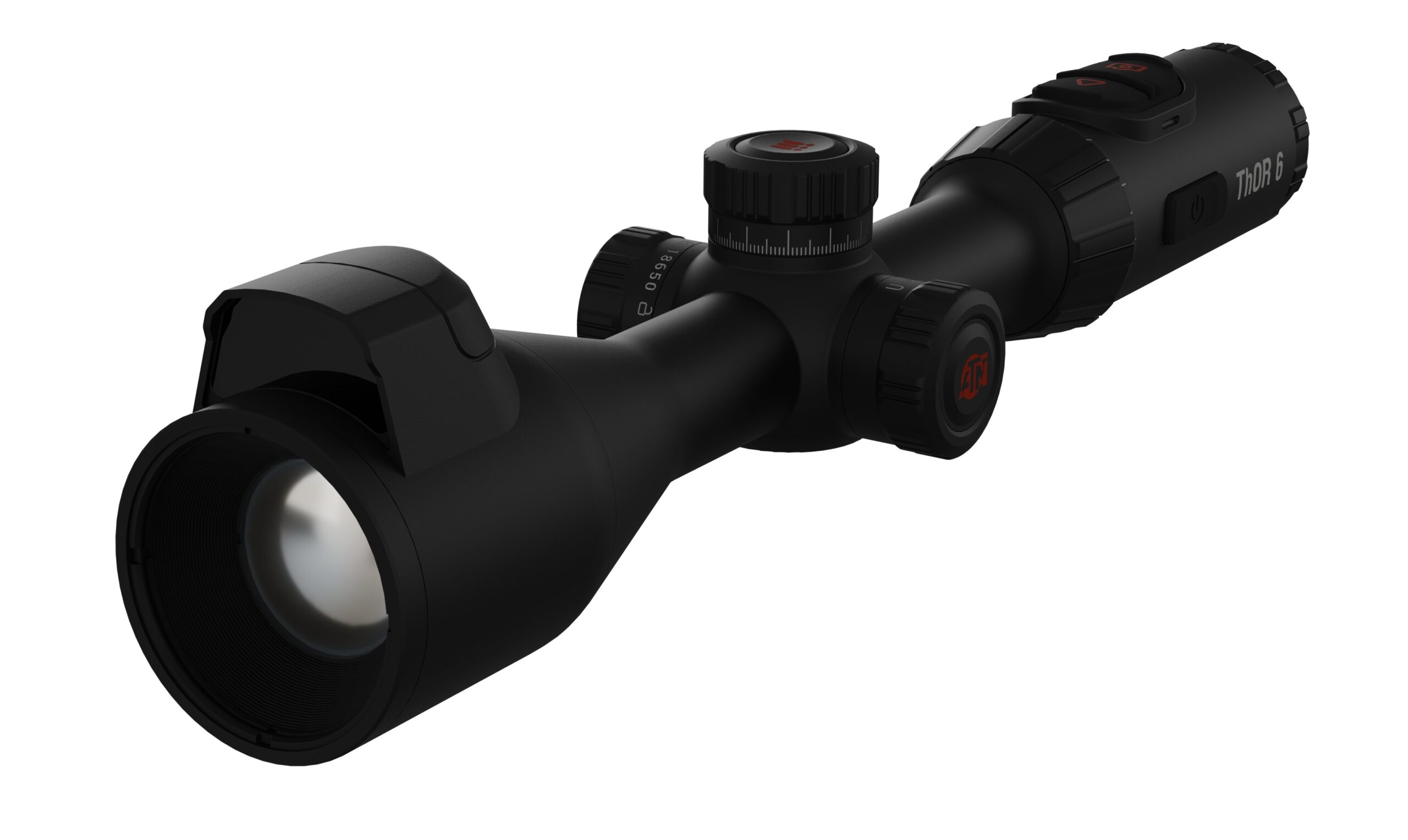

ATN ThOR 6 Elite 2-16x 640×512 Thermal Riflescope w/ LRF

UPC: 658175967897

$2,595.00

2 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

The ATN ThOR 6 Elite 2-16x is built around ATN's 6th Generation thermal engine, and the difference shows the first time you flip it on. This LRF model pairs a 640×512 sensor on a 12um pixel pitch with a sub-15mK NETD rating, which is about as sensitive as it gets in this class. That translates to faint heat differences showing up crisp and separated, so a coyote tucked against a tree line or a hog rooting through tall grass reads clearly even through fog, humidity, or heavy cover. A 50 Hz refresh keeps fast movement smooth, and the SharpIR AI processing sharpens edges and boosts contrast on the fly so you spend less time fiddling with settings and more time glassing.

What the Built-In Rangefinder Adds to the ThOR 6 Elite

This is the LRF version, and that laser rangefinder is the headline feature. It reaches out to 1,000 meters with plus or minus 1 meter accuracy, and the reading feeds straight into the onboard ballistic calculator. Store multiple load profiles, and the scope automatically adjusts your reticle for range and angle, so you get a corrected aiming point without taking your eye off the animal or fumbling for a handheld unit. For anyone stretching shots past a few hundred yards, that one-button workflow is a game changer.

Glass, Controls, and Field Durability

The 35mm F/1.0 germanium objective pulls in plenty of thermal signal, and the 2-16x magnification range gives you wide-area scanning on the low end and real reach on the top. Focus runs off a central knob, the zoom control feels like a traditional scope, and a 0.49-inch 1920×1080 OLED gives you a bright, detailed sight picture. The magnesium alloy housing is IP67 rated and built to shrug off hard recoil.

Recording and Setup on the ThOR 6 Elite

Recoil Activated Video captures your shot automatically to 64GB of internal storage, no SD card needed. One-Shot Zero and Zeroing Freeze make sight-in quick and repeatable, and you get ten reticle styles plus six color palettes including White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia. Built-in Wi-Fi pairs with the ATN Connect 6 app for live view and sharing, and two replaceable 18650 batteries deliver roughly nine hours of runtime with USB-C charging in the scope.

Key Specifications

  • Manufacturer: ATN
  • Model: ThOR 6 Elite
  • Manufacturer Part Number: TIWST6635LRF
  • UPC: 658175967897
  • Sensor Resolution: 640×512
  • Detector Type: 12um VOx Uncooled Focal Plane Array
  • Thermal Sensitivity (NETD): <=15mK
  • Refresh Rate: 50 Hz
  • Magnification: 2-16x
  • Objective Lens: 35mm Germanium, F/1.0
  • Display: 0.49in 1920×1080 OLED
  • Detection Range: 3100 m
  • Laser Rangefinder: Yes, up to 1,000 m, +/- 1 m accuracy
  • Reticle Types: 10 Styles, Multiple Colors
  • Internal Storage: 64 GB
  • Housing: Magnesium Alloy, IP67
  • Battery: 2x 18650 (approx. 9 hours), USB-C charging
  • Color: Black

What’s Included

  • ATN ThOR 6 Elite 2-16x 640×512 Thermal Riflescope (TIWST6635LRF)
  • 2x 18650 batteries (1 internal, 1 replaceable)
  • Battery charger
  • Heated target for zeroing
  • USB Type-C cable

Frequently Asked Questions

Does the ThOR 6 Elite come with the laser rangefinder, or is that separate?

This is the LRF model, so the laser rangefinder is built right into the scope. It gives instant distance readings out to 1,000 meters with plus or minus 1 meter accuracy, and that data feeds directly into the onboard ballistic calculator for a corrected aiming solution. No handheld unit required.

How far can the ThOR 6 Elite 640 detect heat?

This 2-16x model has a detection range of around 3,100 meters, which is well past 3,000 yards for spotting a heat signature. Keep in mind detection range is how far it can pick up heat, not how far you can positively identify and ethically shoot a target. The 640×512 sensor and 2-16x magnification give you plenty of resolution to identify game at practical hunting distances.

What powers the ThOR 6 Elite and how long does it run?

It uses two 18650 batteries, one internal and one replaceable, for roughly nine hours of continuous runtime. You can charge in the scope via USB-C, and because the battery is swappable you can drop in a fresh cell to keep hunting without packing up. A charger and a spare battery come in the box.

Can the ThOR 6 Elite record video and store multiple rifle profiles?

Yes. Recoil Activated Video automatically captures your shot to 64GB of internal storage, no SD card needed, and you can review or share clips through the ATN Connect 6 app over built-in Wi-Fi. The ballistic calculator also stores multiple custom load profiles, so you can move the scope between rifles without re-zeroing from scratch.

Additional information

UPC

658175967897

Manufacturer

Manufacturer Part Number

TIWST6635LRF

Color

Black

Magnification

2-16x

Model

Power

2-16X

Product Type

Thermal Optic

Resolution

640×512

Reticle

Multiple

Shipping Weight

5.75
