Description
Area 419 built the original Hellfire back in 2016 and it pretty much rewrote the rulebook on self-timing muzzle brakes. This is the 3-port version sized for 7mm and 30 caliber bullets, cut for 5/8-24 threads, and finished in Black Nitride for a flatter look and solid corrosion resistance. It handles anything up to and including .308, so 7mm, .284, .270 and their magnum versions are all fair game. Independent testing put it at around 52 percent recoil reduction on a 6.5 Creedmoor, which came in roughly 4 percent ahead of one of the most popular brakes on the market. That translates to less shoulder thump, a muzzle that stays flat, and a much easier time watching your bullet impact through the scope.
What Sets the Hellfire Brake Apart
The self-timing part is where this thing earns its reputation. You torque the universal adapter onto your barrel once with a 5/8 inch wrench and it never has to come off again. From there you left-hand thread the brake and collar assembly on, rotate it until it sits level, push it into the taper until you feel it lock, and hand-tighten the knurled collar. No shims, no crush washers, no guessing where the ports will end up. The proprietary port design pulls muzzle rise down without any top porting, and the face is engraved with the caliber marking to show top dead center plus a horizontal line to help you level everything up.
Living With the Hellfire on Your Rifle
Return to zero is a real strong point here. Pull the brake off and reinstall it and your zero stays put, which is a big deal if you're running a suppressor on the same adapter and swapping back and forth. Since the whole Hellfire system is modular, that one adapter opens the door to other Hellfire brakes and compatible suppressor mounts down the road. Machined from heat-treated 17-4PH stainless steel and made in Ohio, it's the kind of part folks tend to buy a second and third time for their other builds once they feel what it does. Whether it's on a precision bolt gun, a hunting rig, or an AR-10, it does the job and looks clean doing it.
Key Specifications
- Manufacturer: Area 419
- Manufacturer Part Number: 419HF-BN-30-5824
- UPC: 810080180093
- Caliber Range: 7mm/30cal (up to and including .308)
- Thread Pitch: 5/8-24
- Finish: Black Nitride
- Material: Heat-treated 17-4PH Stainless Steel
- Port Design: 3-Port, rearward facing
- Timing: Self-timing, tool-free knurled collar
- Recoil Reduction: ~52% (6.5 Creedmoor test rifle)
- Adapter Torque: 25 ft-lbs to barrel
- Country of Origin: Made in USA
- Shipping Weight: 0.37 lbs
What’s Included

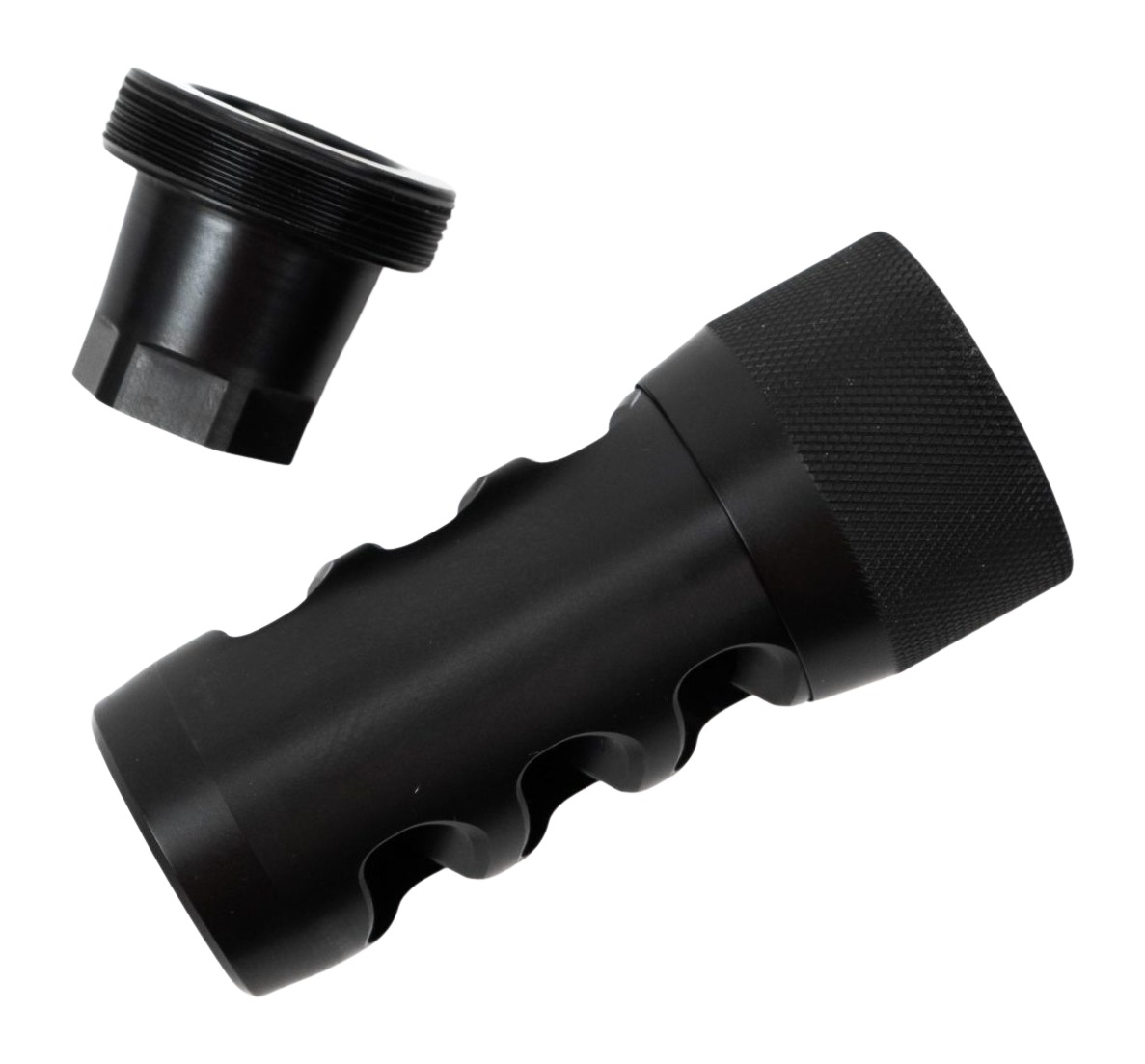

- Hellfire 7mm/30cal muzzle brake (Black Nitride)
- One Hellfire Universal Adapter (5/8-24, black)
Frequently Asked Questions
What calibers does the 7mm/30cal Hellfire brake work with?
This bore size covers any bullet up to and including .308, so it fits 7mm, .284, .270, and .308 based cartridges, including their magnum versions. Area 419 keeps the caliber options simple because the efficiency difference between a caliber-specific bore and the next size up is minimal. Just make sure your barrel is threaded 5/8-24 to match this adapter.
Do I need any special tools to time the Hellfire muzzle brake?
No timing tools, shims, or crush washers required. You torque the universal adapter onto the barrel once with a 5/8 inch wrench, then thread the brake and collar on, level it, lock it into the taper, and hand-tighten the knurled collar. The self-timing design means the ports line up straight every time without guesswork.
Does the Hellfire hold zero if I take it off and put it back on?
Return to zero on this system is excellent. Removing and reinstalling the brake will not shift your zero, which makes it ideal for anyone swapping between the brake and a suppressor on the same adapter. That repeatability is a big reason the Hellfire earned its following.
Can I move this brake between different rifles?
Yes, that's the whole point of the modular design. You install a separate universal adapter on each barrel, and the brake pops on and off tool-free between them. It also plays nicely with the broader Hellfire lineup of brakes and compatible suppressor mounts, so one setup can grow across your safe.
