Description

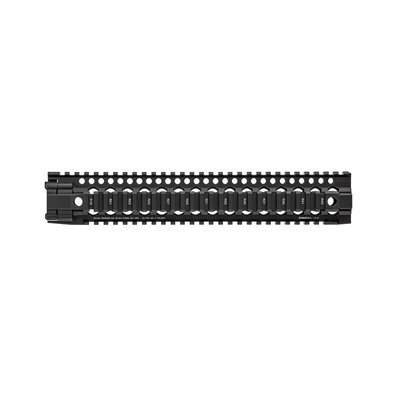

Daniel Defense built the DDM4 Lite Rail for folks who still want the versatility of a full quad rail but hate the weight penalty that usually comes with one. This is the third generation of the Lite Rail line, and the big story is the machined one-piece construction that replaced the older two-piece welded design. That change alone tightens up rigidity and shaves ounces, so you end up with a rail that weighs in around 12.4 ounces on its own and roughly 14.1 ounces once the mounting hardware is on. It's cut from aircraft-grade 6061-T6 aluminum and wears a Type III hard coat anodized finish, which is the same mil-spec treatment you'd expect on a rifle meant to get used hard.
What Makes the DDM4 Lite Rail Lock Up So Tight
The heart of this handguard is Daniel Defense's patented Bolt-Up System paired with a steel barrel nut. It uses just four bolts instead of six, and there are alignment tabs that help you index it to the upper receiver during install. The result is a genuinely bomb-proof lockup with a continuous, uninterrupted top rail that co-witnesses cleanly with your upper for irons or optics.
Running Accessories on the DDM4 Quad Rail
You get full Mil-Spec 1913 Picatinny at the 12, 3, 6, and 9 o'clock positions, so lights, lasers, foregrips, and bipods all have a home. Integral QD sling swivel points sit at the front and rear on both sides, and they're built with limited rotation so your sling doesn't twist up on you. The rail ships with three Santoprene rail ladders so you can cover the sections you're not using and keep the grip comfortable.
Fitment on the DDM4 Lite Rail 12
This 12-inch rail measures about 12.43 inches long with a 1.08-inch inside diameter, and it's designed to run with a low-profile gas block on a carbine or mid-length gas system. If you're building or rebuilding an AR-15 and want a proven quad rail that won't feel like a boat anchor up front, this is one of the benchmarks the category gets measured against.
Key Specifications
- Manufacturer: Daniel Defense
- Manufacturer Part Number: 01-134-15163
- UPC: 815604018258
- Rail Length: 12.43 in
- Product Type: Free Float Quad Rail
- Rail Style: Mil-Spec 1913 Picatinny (12, 3, 6, 9 o'clock)
- Material: Aircraft-Grade 6061-T6 Aluminum
- Finish: Type III Hard Coat Anodized
- Color: Black
- Weight (Rail Only): 12.4 oz
- Weight (Installed w/ Hardware): 14.1 oz
- Inside Diameter: 1.08 in
- Barrel Nut: Steel
- Gas System Compatibility: Carbine or Mid-Length (low-profile gas block)
- Mounting: Patented Bolt-Up System (4-bolt)
- Country of Origin: USA
What’s Included
- DDM4 Lite Rail 12" handguard
- Steel barrel nut
- Bolt-Up plate and screws
- Barrel nut wrench
- Allen wrench
- 3 Daniel Defense Santoprene rail ladders
Frequently Asked Questions
What gas system does the DDM4 Lite Rail 12" work with?
This rail is designed to run with a low-profile gas block on a carbine or mid-length gas system. The gas block needs to clear the inside diameter of the rail, which sits at about 1.08 inches. If your build uses a standard front sight base or a taller gas block, you'll want to swap to a low-profile unit first.
Does the DDM4 Lite Rail come with everything needed to install it?
Yes. The kit includes the steel barrel nut, the Bolt-Up plate and screws, a barrel nut wrench, and an Allen wrench, so you have the core hardware and tools in the box. It also ships with three Santoprene rail ladders to cover unused rail sections. You'll still want a torque wrench and rifle vise for a proper install.
How heavy is the DDM4 Lite Rail compared to other quad rails?
The rail itself weighs about 12.4 ounces and comes in around 14.1 ounces once the mounting hardware is installed. For a full quad rail that's on the light end of the category, which is the whole point of the Lite Rail platform. It won't beat a slim M-LOK tube on weight, but among quad rails it's one of the lighter options out there.
Is the top rail continuous for mounting sights?
It is. The DDM4 Lite Rail has an uninterrupted upper Picatinny rail that lines up with your upper receiver, so you can run backup irons or a scanning setup across the gap without a break. That continuous top surface is a big reason folks still reach for a quad rail on iron-sight and combo builds.
