Description

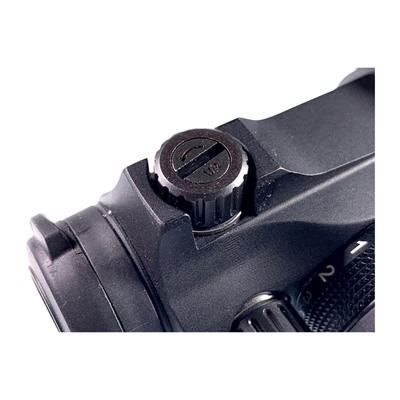

Anyone who has run an Aimpoint Micro T1 or T2 knows the drill: unscrew the little factory cap, flip it around, line up the protrusions with the indentations, rotate, then hope you didn't drop the cap in the leaves. Forward Controls Design got tired of that routine too, so they built the ATA (Adjustable Turret cap, Aimpoint Micro) to fix it. Instead of removing anything, you make windage and elevation corrections right through the cap using the rim of a cartridge or a coin.
How the ATA Turret Caps Actually Work
Each cap houses a 17-4 stainless steel rotating disc with an externally accessible top slot. The disc carries two protrusions that mate with the two indentations on the sight's adjustment dial, so turning the disc turns your zero. The set ships as a pair, with one disc marked UP for elevation up top and one marked R for windage on the right, each with a counter-clockwise arrow so you always know which way you're going. Adjustment usually takes a few passes anyway, so being able to correct, fire, and correct again without pulling a cap off is a real time-saver at the range.
Built Tough and Sealed Against the Weather
The caps are billet machined from 17-4 stainless and QPQ treated, so they hold up to abuse and shrug off corrosion. Each one carries an internal O-ring that keeps moisture out, and in water immersion testing the ATA sealed on par with the single-piece factory cap down to 77 feet. Twelve serrations around each cap line up with the tick marks inside the factory T1 cap and give your fingers plenty of grip during install.
Fit and Setup on Your Aimpoint Micro
The ATA is designed for the Aimpoint Micro T1 and T2 and is not compatible with the Comp M5, which uses its own version. It ships partially assembled with the O-ring already seated inside the cap and the disc separate, which makes installation quicker since you fit the cap and disc individually. Just leave the factory O-rings on your sight in place, follow the card instructions, and you're set.
Key Specifications
- Manufacturer: Forward Controls Design
- Manufacturer Part Number: ATA, T1/T2
- UPC: 680665827183
- Material: 17-4 Stainless Steel, QPQ Treated
- Fitment: Aimpoint Micro T1 / T2
- Compatibility Note: Not compatible with Aimpoint Comp M5
- Adjustment Method: Cartridge rim or coin, caps stay on
- Sealing: Internal O-ring, water resistant to 77 ft
- Cap Serrations: 12 per cap, match factory T1 cap tick marks
- Disc Markings: UP (elevation) and R (windage) with counter-clockwise arrows
- Country of Origin: Made in USA
What’s Included
- 2 x 17-4 stainless steel caps (one UP, one R)
- 2 x 17-4 stainless steel rotating discs
- Internal O-rings (installed in caps)
- Instruction card
Frequently Asked Questions
Will the ATA turret caps fit my Aimpoint Comp M5?
No. The T1/T2 ATA caps are made specifically for the Aimpoint Micro T1 and T2 and are not compatible with the Comp M5. Forward Controls Design offers a separate ATA version built for the M5 if that's the sight you're running.
Do I need a special tool to adjust windage and elevation with the ATA?
No special tool required. The rotating disc has an externally accessible top slot you turn with the rim of a cartridge or a coin. Common rounds like .223, .308, .45 ACP, and 9mm have all been tested and work fine.
Are these turret caps waterproof like the factory Aimpoint caps?
Yes, each cap uses an internal O-ring to keep moisture out. In water immersion testing the ATA sealed on par with the single-piece factory cap down to 77 feet. Just remember to leave the O-rings already on your sight in place during installation.
How does the ATA install on the Aimpoint Micro?
It ships partially assembled, with the O-ring seated inside each cap and the discs kept separate. Installing the cap and disc individually is faster and easier, and the full steps are printed on the back of the card. The 12 serrations on each cap give you a solid grip while threading them on.
