Area 419 ZERO S-Series 6.5 PRC Full Length Sizing Die

UPC: 810080183179

$275.00

2 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

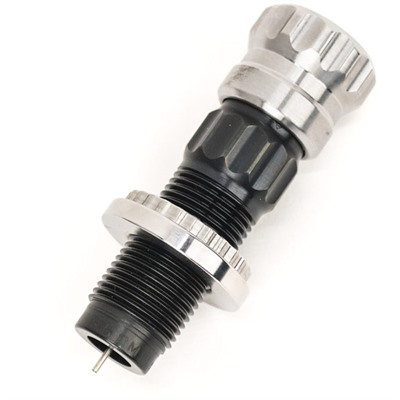

The Area 419 ZERO S-Series 6.5 PRC Sizing Die takes the best ideas from the company's premium M-Series and fits them into a traditional 7/8-inch threaded die body, so you can run it in a standard press without stepping up to a 1.25-inch setup. For anyone loading match or hunting ammo in 6.5 PRC, this is a die built around repeatability. It reamer-cuts the brass to true dimensions, which is the whole reason you don't end up fighting a sticky bolt after a couple of firings.

What Sets the ZERO S-Series 6.5 PRC Die Apart

Inside the die is a precision-ground, full-length expander mandrel that handles neck tension as the case comes back out, so you're sizing the neck and setting tension in a single stroke instead of running a separate mandrel step. It ships with a .002 neck tension mandrel, and since the mandrels are interchangeable (and shared with the M-Series), you can dial in different tension increments using Area 419's separate mandrel kit. Full-length sizing from neck to extractor groove keeps your brass chambering clean and consistent.

Built to Last and Easy to Live With

The S-Series uses spring ejection for spent primers paired with a replaceable steel decap pin, so decapping stays smooth and a bent pin is a quick swap rather than a headache. A hydraulic shoulder pressure relief system helps keep shoulder bump even across a batch, and the whole thing is machined in America to the kind of tolerances precision reloaders expect. Folks running these report runout close to zero and neck tension that holds steady across a full batch of brass.

Keep in mind this is a die-only product. It plays nice with common shellholders from Redding, Hornady, and RCBS, as well as Area 419's own ZERO Modular Shellholder System if you want to fine-tune headspace. It runs great on single-stage presses like the Rock Chucker and really shines paired with the ZERO press.

Key Specifications

  • Manufacturer: Area 419
  • Manufacturer Part Number: 419-ZERODIE-S65PRC
  • UPC: 810080183179
  • Cartridge: 6.5 PRC
  • Die Style: Full-Length Sizing Die
  • Die Body: 7/8-14 Thread (Standard Press)
  • Material: 17-4 Stainless Steel with Nitride Finish
  • Included Mandrel: .002 Neck Tension, Interchangeable
  • Decapping: Spring Ejection with Replaceable Steel Pin
  • Shoulder Control: Hydraulic Shoulder Pressure Relief
  • Country of Origin: USA

What’s Included

  • ZERO S-Series 6.5 PRC Sizing Die
  • Area 419 ZERO Universal Die Ring
  • .002 neck tension expander mandrel (installed)
  • Spare decapping pin
  • Install/removal tools

Frequently Asked Questions

Does the ZERO S-Series 6.5 PRC die come with a shellholder?

No, this is a die-only product and does not include a shellholder. It works with standard shellholders from Redding, Hornady, RCBS, and similar brands. It's also compatible with Area 419's own ZERO Modular Shellholder System if you want more precise headspace control.

Will this die fit a standard reloading press?

Yes. The S-Series uses a traditional 7/8-14 threaded die body, so it fits standard single-stage presses. It runs well in presses like the Rock Chucker and is a natural fit on the Area 419 ZERO press.

Can I change the neck tension on the 6.5 PRC S-Series die?

You can. The die ships with a .002 neck tension mandrel, and the mandrels are interchangeable. Picking up Area 419's separate mandrel kit lets you dial neck tension in finer increments to suit your load, and those mandrels are shared with the M-Series dies.

What's the difference between the S-Series and the M-Series sizing die?

The S-Series brings the core performance of the M-Series into a standard 7/8-inch die body at a lower price. The main thing it drops is the M-Series micrometer headspace adjustment, using a standard headspace-setting method instead. You still get the full-length mandrel, spring decapping, reamer-cut dimensions, and hydraulic shoulder relief.
