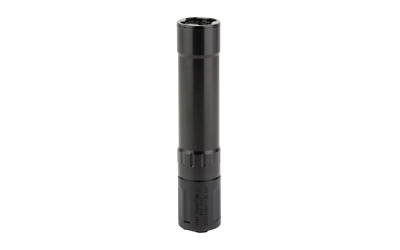

Yankee Hill Phantom .22 Suppressor 1/2-28 5.5in

Description

The Yankee Hill Machine Phantom .22 is a lightweight, direct-thread sound suppressor engineered for rimfire pistols and rifles. It uses a shielded interlocking baffle stack made from heat-treated 17-4 stainless steel and a two-piece outer assembly that combines a 7075-T6 aluminum blast chamber with a 6061-T6 tube. The rear of the blast chamber doubles as the takedown tool for the muzzle cap, allowing straightforward disassembly and maintenance. The unit is rated for use with .22 LR and is also documented as compatible with 5.7×28 and other small calibers in the manufacturer’s materials.

Key Specifications

• Caliber: .22 LR.
• Weight: 4 oz.
• Overall length: 5.5".
• Construction: 7075-T6 aluminum blast chamber, 6061-T6 tube, and 17-4 stainless steel baffles.
• Mount: 1/2-28 direct thread.
• Serviceability: Disassemblable; rear blast chamber doubles as the takedown tool.
• Caliber rating: Documented for .22 LR and rated for 5.7×28 use.
• Minimum barrel lengths: .22 LR — no restriction; .22 MAG — 10"; 5.7×28 — 10"; .17 HMR — 10".
• Full-auto rating: Full-auto rated.
• Finish: Matte Black, hard-coat anodized.

Purpose-built for lightweight, low-profile suppression on rimfire pistols and rifles, the Phantom blends serviceable materials and direct-thread simplicity for routine maintenance. Its compact footprint and modular outer assembly make it a practical option where reduced weight and straightforward field stripping matter. For shooters who want a compact, serviceable rimfire suppressor with documented multi-caliber compatibility, the Phantom offers a capable, no-nonsense solution.
