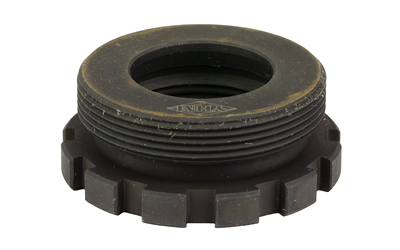

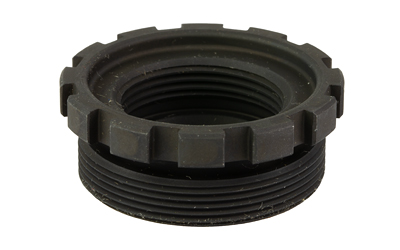

YHM sRx Low-Profile Q.D. Adapter, HUB 1-3/8×24 Black – YHM-4400

UPC: 841812101499

$84.75

3 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Most quick-detach mounts make you pay for convenience with extra length, extra weight, and some ratchet or spring mechanism that eventually gums up or wears out. Yankee Hill Machine took a different route with the sRx system, and this adapter is the heart of it. The YHM-4400 threads into any suppressor with industry-standard HUB 1-3/8×24 threads and pairs with YHM sRx muzzle devices to give you a true QD interface that adds only 0.200 inches to your can and weighs a hair under two ounces. That makes it one of the slimmest, lightest QD options you can bolt onto a HUB suppressor.

How the sRx Adapter Seals Out Carbon

The smart part is the internal taper seal sitting in front of the threads. When you spin the suppressor down onto an sRx muzzle device, that taper locks everything up tight and seals off the threads from hot gas and carbon. Fouled threads are the number one headache with muzzle-mounted cans, and this design keeps them clean so removal stays easy even after long range days. The taper also indexes the suppressor the same way every single time, so your point of impact shift stays predictable when you take the can on and off.

No Timing, No Shims, No Moving Parts

There is nothing in the sRx system to break or wear. No springs, no ratchets, no locking collars. The sRx muzzle devices install without any timing or shimming, which saves you a trip to the shim kit drawer, and the device can even be permanently attached to the barrel if your build calls for it. Mount the adapter in your can, hand-tighten onto the muzzle device, and go shoot.

Fits More Than Just YHM Cans

Since HUB threading is the common language of modern suppressors, this adapter works with YHM cans like the Turbo K, Resonator R2, and R9, plus HUB-compatible models from SilencerCo, Dead Air, Rugged, Griffin, and plenty of others. Machined from 17-4 PH stainless steel with a black oxide finish, it is built to shrug off heat and hard use. Just remember it needs an sRx muzzle device on the other end to complete the system.

Key Specifications

  • Manufacturer: Yankee Hill Machine
  • Model: sRx Q.D. Adapter
  • Manufacturer Part Number: YHM-4400
  • UPC: 841812101499
  • Thread Pitch: 1-3/8×24 (HUB standard)
  • Material: 17-4 PH Stainless Steel
  • Finish: Black Oxide
  • Weight: 1.88 oz
  • Overall Length: 0.600 in
  • Length Added to Suppressor: 0.200 in
  • Outside Diameter: 1.563 in
  • Compatible Muzzle Devices: YHM sRx series (4405, 4405-MB, 4401-MB)
  • Mount Type: Quick-Detach, internal taper seal

What’s Included

  • YHM sRx Low-Profile Q.D. Adapter (YHM-4400)

Frequently Asked Questions

Will the YHM sRx Q.D. Adapter fit suppressors from other brands?

Yes, as long as the suppressor uses standard HUB 1-3/8×24 threads. That covers most modern cans from SilencerCo, Dead Air, Rugged, Griffin, AAC, and of course YHM models like the Turbo K, Resonator R2, and R9. If your suppressor takes HUB mounts, this adapter will thread right in.

Do I need anything else to use the sRx adapter?

You will need at least one YHM sRx muzzle device on your barrel, since the adapter and muzzle device work as a matched pair. The sRx flash hiders and muzzle brakes come in common thread pitches, and none of them require timing or shims to install. The adapter alone will not mount to a bare threaded barrel.

Is the sRx adapter compatible with YHM Phantom QD muzzle devices?

No, the sRx system is its own mounting standard and does not interface with the older Phantom QD devices. If you are running Phantom mounts, you would need to swap those out for sRx muzzle devices to use this adapter. The upside is the sRx design has no springs or ratchets to wear out.

Does the taper seal really keep carbon off the threads?

It does. The taper sits forward of the threads, so when the suppressor is snugged down, hot gas and carbon are sealed off before they ever reach the threading. That keeps removal easy after long shooting sessions and gives you consistent alignment every time you remount, which helps keep point of impact shift repeatable.
