Description

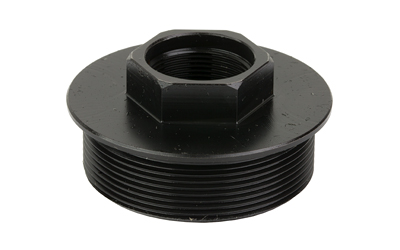

Quick detach mounts are great until they aren't. Sometimes you just want your suppressor threaded straight onto the barrel with no locking collars, no muzzle device to time, and one less thing to work loose. That is exactly what the Yankee Hill Machine HUB Direct Thread Mount is for. It spins into the industry standard 1.375×24 HUB interface on the back of your can and gives you a clean 5/8×32 direct thread connection for barrels cut with that pitch.
Swapping to the YHM HUB Direct Thread Mount
Installation is about as painless as it gets. Pull the existing mount or module out of your suppressor, thread this one in with a 3/4 inch open end wrench, then screw the whole can onto your barrel. That is the entire process. Because the HUB spec is shared across so many suppressor brands, this mount works with far more than just YHM cans, which makes it a handy piece to keep in the range bag if you run multiple silencers across different hosts.
Built Like the Rest of the YHM Lineup
Yankee Hill Machine has been making suppressors and mounting hardware in Massachusetts for decades, and this piece follows their usual recipe: heat treated 17-4 PH stainless steel with a Melonite QPQ finish that shrugs off heat, carbon, and rough handling. The generous .45 caliber bore gives you flexibility across a wide range of hosts, and at roughly 1.7 ounces it will not throw off the balance of your setup the way some bulkier QD systems can.
Why Go Direct Thread
A direct thread mount keeps things short, light, and concentric. There are no moving parts to fuss with and no ratchet teeth to clean, just solid thread engagement between your barrel and suppressor. If your rifle or pistol wears 5/8×32 muzzle threads and your can speaks HUB, this little adapter is the straightforward answer. YHM also offers the same mount in other common pitches, so you can match one to each host in the safe.
Key Specifications
- Manufacturer: Yankee Hill Machine
- Manufacturer Part Number: YHM-2189-32
- UPC: 841812101949
- Model: Universal Suppressor Mount (HUB Direct Thread)
- Barrel Thread Pitch: 5/8"-32
- Suppressor Interface: 1.375"-24 HUB
- Material: 17-4 PH heat treated stainless steel
- Finish: Melonite QPQ, black
- Bore Diameter: .45 caliber
- Weight: 1.7 oz
- Install Tool: 3/4" open end wrench
- Compatibility: HUB-compatible suppressors, most major brands
What’s Included
- Yankee Hill Machine HUB Direct Thread Mount, 5/8×32
Frequently Asked Questions
Will the YHM HUB Direct Thread Mount work with suppressors from other brands?
Yes. The 1.375×24 HUB interface is an industry standard shared by a long list of suppressor makers, not just Yankee Hill Machine. As long as your can accepts HUB pattern mounts, this adapter will thread right in. If your suppressor uses a proprietary rear mount instead of HUB, it will not fit.
What do I need to install this mount?
Just a 3/4 inch open end wrench. Remove your suppressor's existing mount or module, thread this one into the HUB threads and snug it down with the wrench, then screw the suppressor onto your 5/8×32 barrel. No shims, timing, or muzzle device required.
What calibers can I run through this mount?
The mount itself has a .45 caliber bore, so it will pass anything up to .45 as long as your suppressor is rated for the cartridge. Your actual caliber limit always comes down to the suppressor, not the mount, so check your can's ratings first. The 5/8×32 thread pitch just needs to match your barrel.
Is a direct thread mount better than a quick detach setup?
It depends on how you shoot. Direct thread keeps the setup shorter and lighter with no moving parts, and there is nothing extra to clean or work loose. QD systems win if you swap one can between several rifles all day. Plenty of folks keep one of these mounts around specifically for hosts where the suppressor mostly stays put.
