Description

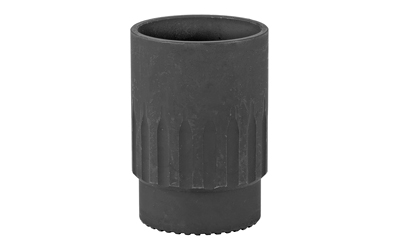

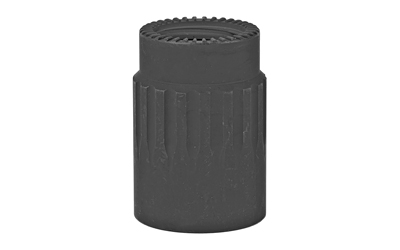

Anyone who has run an unsuppressed AR next to another shooter knows how rough side blast can be, especially off a short barrel with a brake. The Yankee Hill Machine YHM-3130 QD Blast Deflector is the fix for rifles already wearing a YHM Phantom QD muzzle device. It snaps on using the same quick-detach mechanism as a YHM suppressor, so the lockup is fast, repeatable, and built to stay put until you decide to take it off. When your can is riding on another rifle or waiting on paperwork, this little steel sleeve keeps the concussion pointed downrange instead of into your support hand and the guy in the next lane.
Built Like the Rest of the YHM Lineup
Yankee Hill machines the 3130 from 4140 chrome moly steel and treats it with a Melonite QPQ finish for wear and corrosion resistance, the same recipe they use across their suppressor mounts. At 2.19 inches long and 4.7 ounces, it adds very little length or weight to the muzzle, which is exactly what you want on a compact build. It is rated for both 5.56 and .30 caliber rifles, so one deflector can bounce between your AR-15 and your .308 or 300 Blackout as long as they wear compatible mounts. Made in the USA, like everything else out of the YHM shop.
YHM-3130 Mount Compatibility
This is the short version of YHM's blast deflector, sized for the shorter Phantom QD mounts. It fits the YHM-3102, YHM-4302, and YHM-5M2-QD, and it will not fit the YHM-3702, YHM-3802, YHM-9923, or YHM-9853. Double check the model number stamped on your muzzle device before ordering. A lot of folks end up grabbing a second one to use as a thread protector of sorts on every QD mount they own, which says a lot about how handy this thing is. Indoor range trips, training classes, shooting from a bench next to buddies, anywhere blast and noise splash matter, this deflector earns its spot in the range bag.
Key Specifications
- Manufacturer: Yankee Hill Machine
- Model: QD Blast Deflector, Short
- Manufacturer Part Number: YHM-3130
- UPC: 816701019353
- Caliber Rating: 5.56 NATO / .30 Cal
- Material: 4140 Chrome Moly Steel
- Finish: Melonite QPQ, Black
- Length: 2.19 in
- Weight: 4.7 oz
- Attachment: YHM Phantom QD quick-detach
- Fits Mounts: YHM-3102, YHM-4302, YHM-5M2-QD
- Country of Origin: USA
What’s Included
- YHM-3130 QD Blast Deflector
Frequently Asked Questions
Which muzzle devices does the YHM-3130 Blast Deflector fit?
This short version is built for YHM's shorter Phantom QD mounts, specifically the YHM-3102, YHM-4302, and YHM-5M2-QD. It will not fit the YHM-3702, YHM-3802, YHM-9923, or YHM-9853. If you're running the longer YHM-3302 mount, look at the YHM-3135 instead, which is sized to cover it fully.
Does a blast deflector reduce noise like a suppressor?
No, and it's not meant to. A blast deflector redirects muzzle blast, gas, and concussion forward instead of out to the sides, which makes things far more pleasant for you and anyone shooting next to you. The overall noise level doesn't drop much, it just gets pushed downrange where it belongs.
How does the YHM-3130 attach to the rifle?
It uses the same quick-detach mechanism found on YHM's Phantom QD suppressors. You slide it over a compatible YHM QD muzzle device and lock it down, no tools needed. The lockup is designed to stay tight under fire and comes off just as quickly when you want to run your can instead.
Can I use the YHM-3130 on both my 5.56 AR and a .30 caliber rifle?
Yes, the bore is rated for projectiles up to .30 caliber, so it works fine on 5.56, .300 Blackout, and .308 platforms. The only requirement is that each rifle wears one of the compatible YHM QD mounts. That flexibility makes it easy to share one deflector across multiple builds.
