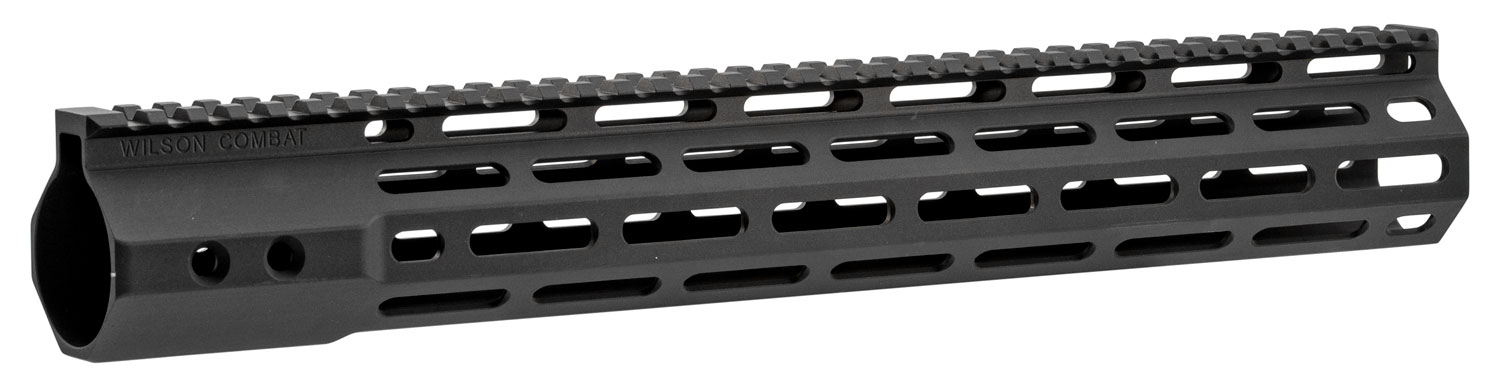

Wilson Combat AR .308 M-LOK Handguard 14.6″ Black AR-10 Rail

UPC: 811826026941

$154.95

6 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Wilson Combat took their well-known T.R.I.M rail platform and refined it into this slimmer, lighter M-LOK version built specifically for .308 AR and AR-10 rifles. At 14.6 inches, it stretches most of the way down a full-length barrel, giving you plenty of room for a hand stop, bipod, light, or a comfortable support-hand grip well out toward the muzzle. It free-floats the barrel, meaning nothing but the barrel nut touches the barrel, which pays off in consistency and tighter groups downrange.

What Sets the Wilson Combat .308 M-LOK Rail Apart

The tube is machined on 5-axis CNC equipment from high-strength 6005A-T5 aircraft aluminum, then finished in a Mil-Spec hard coat anodize that shrugs off holster wear, weather, and range abuse. M-LOK slots sit at the three, six, and nine o'clock positions along the length, so you can bolt on accessories directly without clunky adapters. The result is a rail that stays slim and non-abrasive in the hands while still carrying whatever you need to hang on it.

Heat Management and Fitment on the AR-10 Handguard

One of the smarter touches here is the oversize, nitrocarburized 4130 steel barrel attachment nut. It clamps down securely and does a good job reducing heat transfer back toward your support hand during longer strings of fire. This rail is designed for .308 AR pattern rifles using a 1-7/16-16 receiver thread, which covers the High-Profile / SR-25 / LR-308 DPMS pattern uppers. If you're running a High-Profile receiver, the top rail lines up cleanly with the upper for a continuous sight plane.

Installing the Wilson Combat 14.6" M-LOK Handguard

Installation is straightforward and can be knocked out in a few minutes with common hand tools, though you'll want a 1.375-inch crowfoot wrench to properly torque the barrel nut. The mounting screws are tapered for a tight, secure fit, so a light dab of grease on each screw shoulder during install keeps things smooth. If you're swapping from an older Wilson Combat T.R.I.M rail, the barrel nut design carried over, making the upgrade painless.

Key Specifications

  • Manufacturer: Wilson Combat
  • Manufacturer Part Number: TRMLOKAR1014
  • UPC: 811826026941
  • Length: 14.6 inches
  • Color / Finish: Black Mil-Spec Hard Coat Anodize
  • Material: 6005A-T5 Aircraft Aluminum
  • Barrel Nut: Nitrocarburized 4130 Steel, Oversize
  • Attachment Style: M-LOK (3, 6, and 9 o'clock positions)
  • Mounting System: Free-Floating
  • Fitment: .308 AR / AR-10, 1-7/16-16 thread, High-Profile DPMS / SR-25 / LR-308 pattern
  • Inside Diameter: 1.47 inches
  • Product Type: Forend / Handguard
  • Barrel Nut Wrench Required: 1.375" Crowfoot

What’s Included

  • Wilson Combat AR .308 14.6" M-LOK handguard
  • Nitrocarburized 4130 steel barrel attachment nut
  • Mounting hardware / tapered screws

Frequently Asked Questions

What rifles does the Wilson Combat AR .308 M-LOK handguard fit?

It's built for .308 AR and AR-10 pattern rifles that use a 1-7/16-16 receiver thread, which is the DPMS .30 caliber pattern. That covers High-Profile, SR-25, and LR-308 style uppers, including pre-2009 DPMS and Knight's SR-25 patterns. If you're on a High-Profile receiver, the top rail lines up flush with the upper for a continuous sight plane.

Is the barrel truly free-floated with this handguard?

Yes. The rail mounts entirely off the oversize steel barrel nut, so nothing but the barrel nut contacts the barrel. That means your bipod, sling, or support-hand pressure won't tug on the barrel and throw off your point of impact, which is a real plus for accuracy.

What tools do I need to install the Wilson Combat 14.6" M-LOK rail?

The install goes quick with common hand tools, but you'll need a 1.375-inch crowfoot wrench to torque the barrel nut down correctly. The mounting screws are tapered for a snug fit, so it's worth putting a light dab of grease on each screw shoulder during assembly to avoid galling.

Can I mount lights, bipods, and grips directly to it?

Absolutely. The M-LOK slots at the three, six, and nine o'clock positions let you attach lights, lasers, bipods, hand stops, and grips directly without extra rail sections or adapters. That keeps the profile slim and the weight down while giving you plenty of mounting options along the 14.6-inch length.

Additional information

UPC

811826026941

Manufacturer

Manufacturer Part Number

TR-MLOK-AR10-14

Color

Black

Length

14.6

Product Type

Free Float

Style

M-LOK
