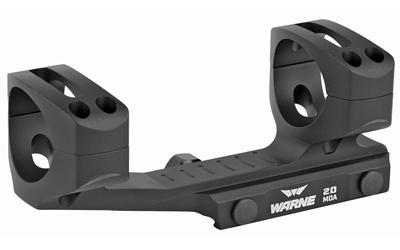

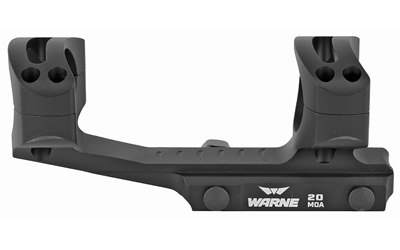

Warne LR-SKEL 30mm Extended Skeletonized 20 MOA Mount

Description

The Warne LR-SKEL mount is an extended, skeletonized 1-piece MSR scope mount and ring combo designed to place optics at MSR ideal height while providing added forward cantilever for eye relief. It includes a built-in 20 MOA slope to provide additional elevation adjustment for long-range use. The mount is CNC precision machined from 6061 aluminum and uses steel threaded inserts with #8 Torx fasteners for durable clamping and repeatable return-to-zero.

Key Specifications

• The mount includes a built-in slope of 20 MOA for additional elevation adjustment.
• The scope tube size is 30mm.
• The body and caps are CNC machined from 6061 aluminum.
• The finish is black gloss.
• The mount is designed for attachment to a Picatinny rail.
• The mount height is 1.44 inches (ultra-high ring height).
• The extended design provides over 2 inches of forward cantilever for additional eye relief.
• The package includes integral rings (1-piece base & ring combo).
• Ring hardware uses #8 Torx fasteners with steel threaded inserts to help prevent stripping.
• The mount is a skeletonized design to reduce overall weight without sacrificing rigidity.

Engineered for MSR-style rifles and flat-top platforms, the LR-SKEL combines a lightweight skeletonized profile with the elevation capacity needed for extended-range optics. Its ultra-high ring height and extended cantilever make it well suited to shooters who run large-eye-box scopes or need extra distance between the optic and the receiver while retaining a secure, repeatable mounting solution.
