Description

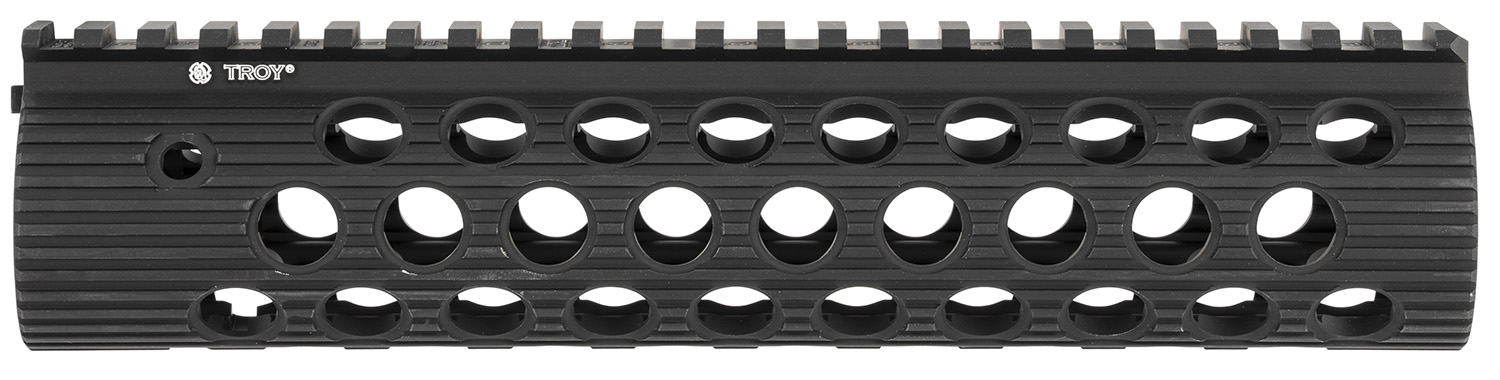

Troy built the Alpha Rail off the same TRX Extreme design that shook up the rail-based handguard world, then added a low-profile locking mechanism that clamps down tight and stays put. The result is a 9-inch free-float forend that feels slim in the hand, sheds weight, and gives your AR-15 or M16 a clean, aggressive look. Instead of a bulky quad rail wrapped in covers, you get a continuous top Picatinny rail and a smooth tube dotted with ventilation holes, so it stays comfortable to grip and runs cooler during long strings of fire.
What Makes the Alpha Rail Different
The whole point of a free-float design is that nothing touches the barrel except the barrel nut, which means your accessories aren't putting pressure on the bore and throwing off your groups. The Alpha Rail's close-to-the-barrel profile is engineered to disperse heat and run cooler than a lot of competing systems, and the ventilation holes double as mounting points for Troy's Squid Grip and QD sling swivels if you want to keep things streamlined. Machined from 6061-T6 hardened aircraft aluminum and finished in Mil-Spec Type III hard coat anodizing, it holds up to abuse and shrugs off corrosion.
Setting Up Your Troy Alpha Rail
Modularity is where this rail earns its keep. It ships with three detachable rail sections, two 2-inch pieces and one 4.2-inch piece, plus all the mounting hardware, so you can add rail space exactly where you want lights, lasers, bipods, or a vertical grip and leave the rest bare. With eight indexed positions around the tube, you've got plenty of angles to work with as your setup evolves.
Installation is refreshingly straightforward for anyone comfortable working on their AR. You remove the delta ring and spring, then the rail clamps onto a standard USGI barrel nut using three tensioned blocks with Allen screws that align everything at the 12 o'clock position. Keep in mind it works with a standard AR-15/M16 barrel nut, which isn't included, and it is not compatible with the TRX barrel nut or wrench. A little lube on the barrel nut and inner diameter makes the fit go smoothly if things feel snug at first.
Key Specifications
- Manufacturer: TROY Industries
- Manufacturer Part Number: STRXAL190BT01
- UPC: 812699015322
- Product Type: Railed Forend
- Rail Length: 9 inches
- Platform Fit: AR-15 / M16
- Mounting Style: Free-Float
- Material: 6061-T6 Hardened Aircraft Aluminum
- Finish: Mil-Spec Type III Hard Coat Anodized, Black
- Rail Configuration: 1 Fixed / 3 Detachable
- Indexed Attachment Positions: 8
- Barrel Nut Compatibility: Standard AR-15/M16 (not included)
- Front Sight: No Sight
- Warranty: Limited Lifetime
What’s Included
- Troy Alpha Rail 9-inch free-float forend
- Two 2-inch detachable rail sections
- One 4.2-inch detachable rail section
- All mounting hardware
Frequently Asked Questions
Does the Troy Alpha Rail come with a barrel nut?
No, a barrel nut is not included. The Alpha Rail clamps onto a standard AR-15/M16 (USGI) barrel nut, so if your upper already has one you're set. Just note it will not work with the TRX barrel nut or TRX wrench, so don't try to reuse those from a different Troy setup.
How does the 9-inch Alpha Rail install on my AR-15?
You remove the delta ring and spring, then slide the rail over a standard barrel nut and clamp it down using three tensioned blocks with Allen screws that lock it in at the 12 o'clock position. It's a job most folks comfortable with basic AR work can handle at home. A little lube on the barrel nut and the inner diameter helps if the fit feels tight going on.
What accessories can I mount on the Troy Alpha Rail?
The full-length top Picatinny rail handles optics and back-up sights, while the three detachable side sections let you add lights, lasers, bipods, or a vertical grip wherever you need them. The ventilation holes also accept Troy's Squid Grips and QD sling swivels for a slimmer, snag-free build. With eight indexed positions you have plenty of flexibility to arrange your gear.
Is the Alpha Rail actually free-floating?
Yes. Nothing on the rail contacts the barrel except the barrel nut, which keeps pressure off the bore and helps with consistency. The close-to-the-barrel profile is also designed to disperse heat and run cooler than many competing rail systems during extended shooting.
