Description

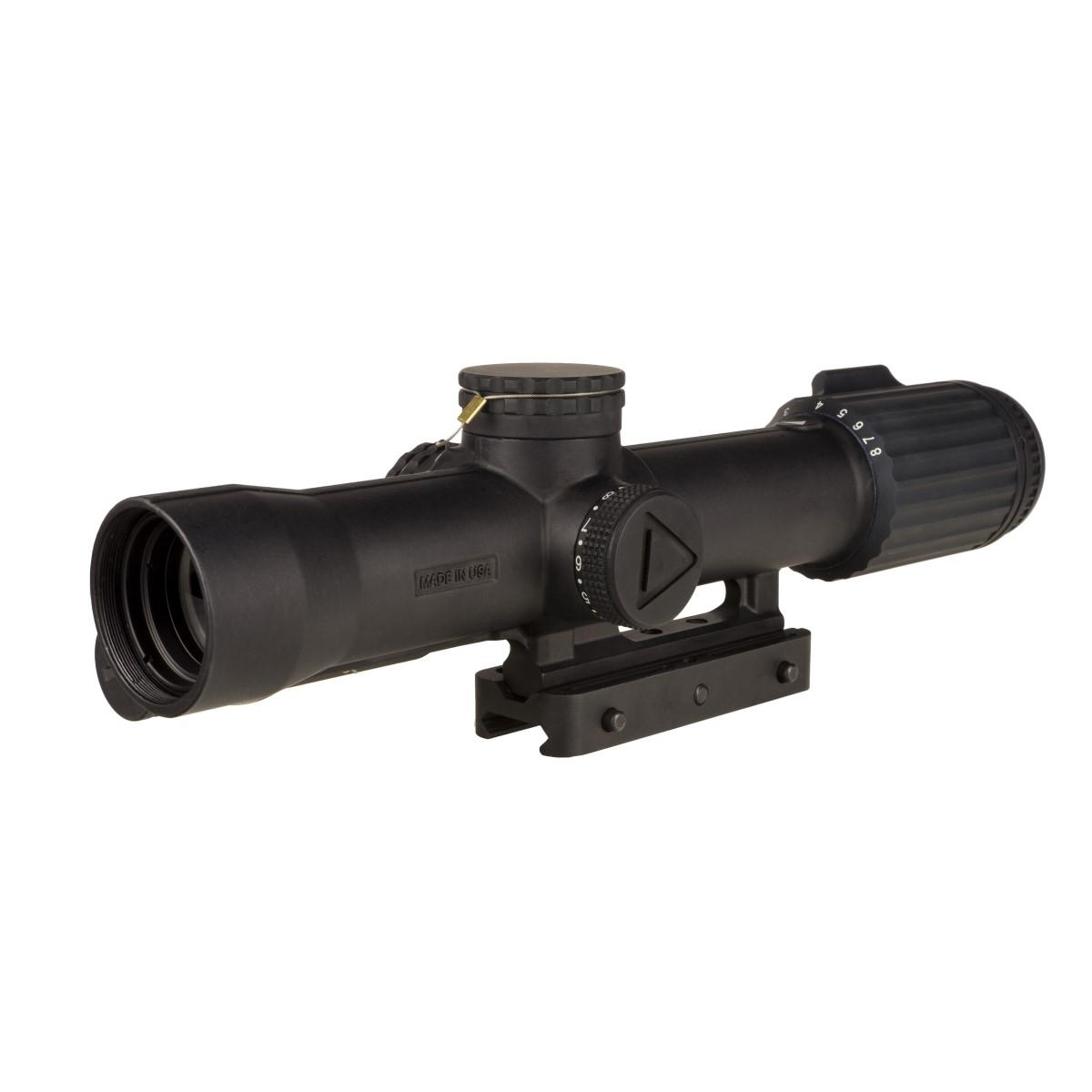

The Trijicon VCOG 1-8×28 is one of the toughest low power variable optics you can bolt onto a carbine or DMR, and it earned that reputation the hard way. This version pairs a first focal plane red MRAD crosshair dot reticle with the Q-LOC quick release mount, giving you a single-piece fighting optic that goes from a true 1x for close work to 8x when you need to reach out and read your holds. It was selected as the U.S. Marine Corps Squad Common Optic, which tells you plenty about where it sits in the pecking order of serious glass.
What Sets the VCOG 1-8×28 Apart
The housing is forged from aircraft-grade 7075-T6 aluminum, so this thing is built to take a beating and hold zero. It carries a MIL-STD-810G rating and is waterproof down to 66 feet, meaning weather and rough handling are not going to be the weak link. The glass is multi-coated for clean, distortion-free clarity across the whole magnification range, and the near-constant eye relief means you are not fighting your head position or cheek weld every time you dial up or down. An integrated dial fin lets you spin through the power settings fast, even with gloves on.
Reticle and Illumination on the Trijicon VCOG
Because the reticle lives in the first focal plane, your MRAD subtensions and holdovers stay true at any magnification, so the math works whether you are at 1x or 8x. The red crosshair dot sits in a segmented circle that pulls your eye in for fast close-range shots, with a fine center point for precision at distance. Illumination runs off a single AA lithium or alkaline battery with 11 brightness settings, including two night vision modes and a super-bright daylight setting. You get roughly 633 hours of runtime at setting 6, and the optic still works as a standard reticle if the battery ever dies.
Mounting the VCOG with Q-LOC
The included Q-LOC mount is a tool-less, spring-loaded quick release system that locks onto a standard Picatinny rail with one hand. It makes pulling the optic for transport or swapping platforms quick, while keeping a repeatable return to zero when you reattach it.
Key Specifications
- Manufacturer: Trijicon
- Model: VCOG
- MPN: 2400014 (VC18-C-2400014)
- UPC: 719307617148
- Magnification: 1-8x
- Objective Size: 28mm
- Reticle: Red MRAD Segmented Circle Crosshair Dot
- Focal Plane: First Focal Plane (FFP)
- Adjustment: 0.1 MRAD per click
- Adjustment Range: 35 MRAD
- Eye Relief: 4 in.
- Field of View: 109.2 ft. to 13.1 ft. at 100 yds.
- Illumination: LED, 11 settings (2 night vision, 8 day, 1 super-bright)
- Power Source: 1x AA Lithium or Alkaline
- Battery Life: 633 hours at setting 6
- Housing: Forged 7075-T6 Aluminum
- Waterproof Rating: 66 ft. (20m)
- Mount: Q-LOC Quick Release
- Finish: Matte Black
- Length: 10.8 in.
- Weight: 28.9 oz. (optic)
What’s Included
- Trijicon VCOG 1-8×28 Riflescope
- Q-LOC Quick Release Mount
- Lithium AA Battery
- Trijicon Logo Sticker
Frequently Asked Questions
Is the Trijicon VCOG 1-8×28 a first focal plane optic?
Yes, the VCOG 1-8×28 uses a first focal plane reticle. That means your MRAD subtensions and holdovers stay accurate at every magnification from 1x through 8x, so your ranging and holds are true whether you are up close or stretched out to distance.
What battery does the VCOG use and how long does it last?
It runs on a single AA battery, either lithium or alkaline, and one comes in the box. At brightness setting 6 you can expect around 633 hours of continuous runtime, which is roughly 26 days. The reticle also functions as a standard non-illuminated reticle if the battery dies.
Does this VCOG come with a mount?
Yes. This model ships with Trijicon's Q-LOC quick release mount, a spring-loaded, tool-less system that attaches to a standard Picatinny rail with one hand. It lets you pull or swap the optic quickly while keeping a repeatable return to zero.
What kind of rifle is the Trijicon VCOG 1-8×28 best suited for?
It shines on a fighting carbine or a designated marksman rifle where you need true 1x speed for close quarters and real magnification for distance. The rugged 7075-T6 housing and MIL-STD-810G rating make it a strong choice for anyone who runs their rifle hard. It was selected as the U.S. Marine Corps Squad Common Optic, which speaks to its durability.
