Trijicon Bolt Action Mount Q-LOC 30MM 20 MOA 1.125″

Description

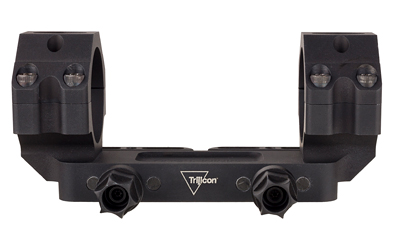

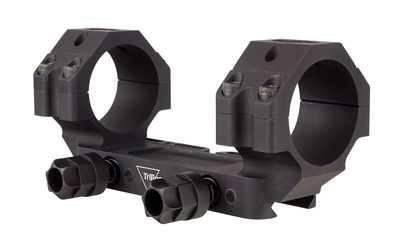

The Trijicon Bolt Action Mount with Q-LOC™ technology is a cantilever scope mount designed to position variable-power optics low over the rail for hunting and precision rifle applications. It uses a Mil-Spec drop-tested 6061-T6 aluminum housing and a spring-loaded, tool-less quick-release system that maintains retention and return-to-zero performance. The canted 20 MOA design provides additional elevation for extended-range shooting while remaining lightweight and low profile. This mount is compatible with full Picatinny rails and supports variable-power optics with larger objective lenses.

Key Specifications

• The mount is constructed from 6061-T6 aluminum for strength and reduced weight.
• The finish is matte black anodized for a low-reflective appearance.
• The mount provides a 1.125″ distance from the top of the mounting rail to the optical axis.
• The design features a 20 MOA cant to increase elevation adjustment for long-range use.
• The mount fits objective lenses up to 44mm.
• The overall length measures 4.74 in (120.4 mm).
• The overall width measures 2.8 in (71.12 mm).
• The Q-LOC system offers quick-release, return-to-zero operation with automatic retention.
• Rail torque spring tension is specified at 12–16 in-lbs, with a maximum recommended of 30–38 in-lbs.
• Ring cap torque is specified at 14–16 in-lbs.

Purpose-built for shooters who demand reliable, low-profile mounting with quick-detach convenience, this Trijicon mount blends military-grade materials and repeatable return-to-zero performance. Its cantilevered geometry and tool-less Q-LOC system make it well suited to hunting and precision rifle setups where optic height and elevation travel are critical.
