Description

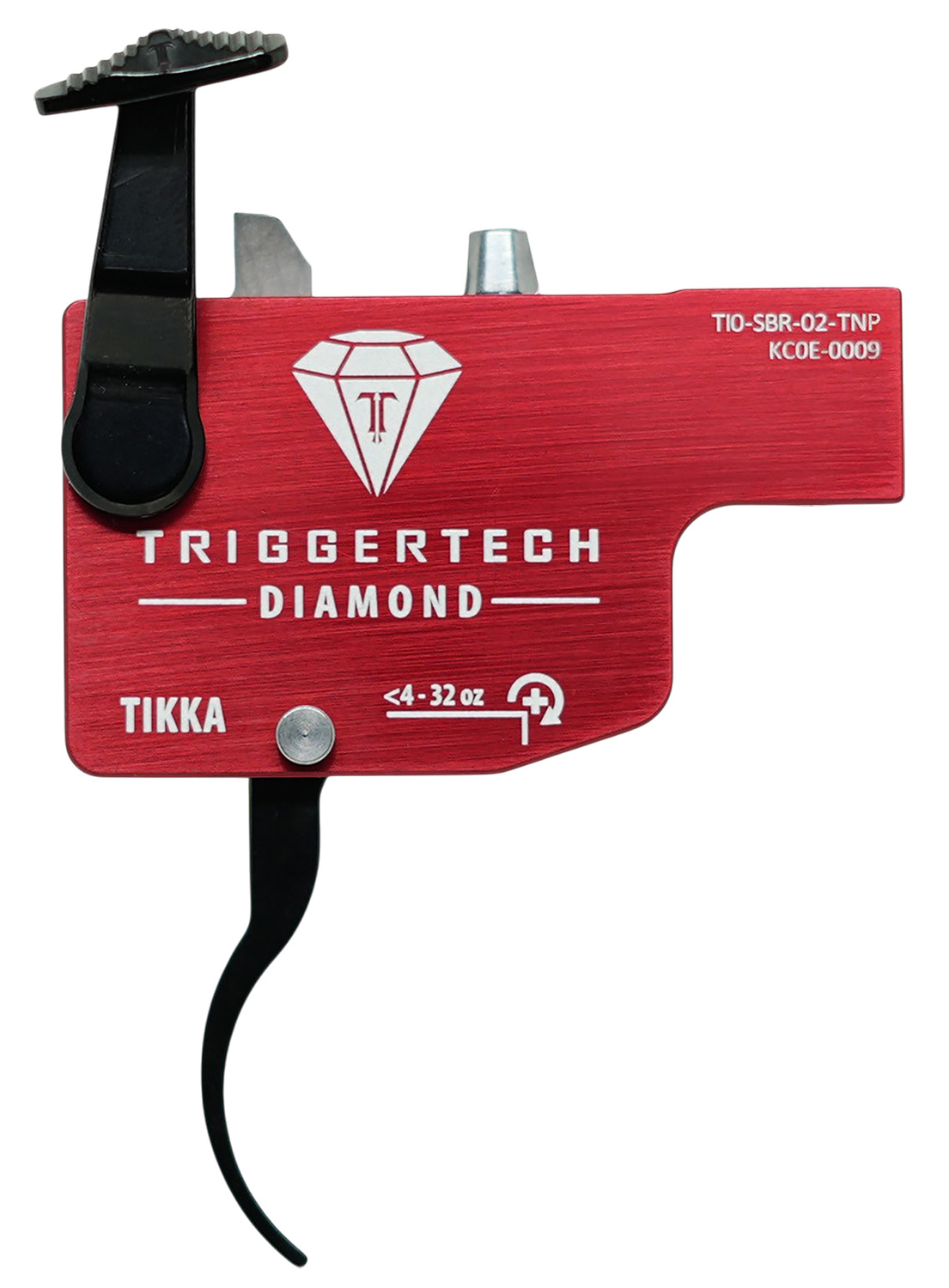

TriggerTech built its name making triggers that break like a glass rod, and the Diamond is the top of that lineup. This is the right-hand version with the Pro Curved lever, cut specifically for Tikka T3, T3x, and T1x bolt actions. Drop it in, dial it, and you have a competition-grade trigger sitting in your favorite rifle.
What sets the Diamond apart is the Frictionless Release design. Instead of relying on polished, lubricated, or coated sear surfaces that wear and drift over time, the engagement runs without sliding friction. The result is a true zero-creep break, sub .010 inch overtravel, and a pull that stays consistent shot after shot, even thousands of rounds down the road. Most people report the break feeling noticeably lighter than the number on the gauge, which is the whole point of a crisp release.
Dialing In the Diamond on Your Tikka
Adjustment is handled by CLKR Technology, an externally accessible set screw that clicks with positive feedback so you know exactly where you are. The range is genuinely wide, running from under 4 oz up to 32 oz. It steps in roughly 0.2 oz per click from the bottom up to around 9 oz, then shifts to about 1 oz per click from there to the top end. That gives you fine control for a featherweight benchrest setting or a heavier field pull without ever pulling the barreled action out of the stock.
Built to Take a Beating
The housing is anodized 7075 aluminum and the key internals are hardened 440C stainless steel with a PVD black finish, so corrosion resistance and service life are covered whether you shoot in the rain, the dust, or the cold. It ships with a removable safety and comes backed by TriggerTech's lifetime warranty.
The Diamond has been the benchmark for Remington 700 precision builds for years, and that same reputation now carries over to the Tikka platform. If you want the best trigger feel available for a T3, T3x, or T1x, this is where you start.
Key Specifications
- Model: Diamond (Single-Stage)
- Manufacturer: TriggerTech
- Manufacturer Part Number: TI0-SRB-02-TNP
- UPC: 885768004107
- Fits: Tikka T3, T3x, T1x
- Trigger Action: Single Stage
- Trigger Lever: Pro Curved
- Pull Weight Range: Less than 4 oz to 32 oz
- Hand: Right Hand
- Overtravel: Sub .010 inch
- Adjustment: CLKR Technology, externally accessible set screw
- Housing: 7075 Aluminum (anodized)
- Key Components: 440C Stainless Steel, PVD Black
- Safety: Included (removable)
- Color: Red housing
- Warranty: Product Lifetime
What’s Included
- TriggerTech Diamond single-stage trigger with Pro Curved lever
- Removable safety
- Instruction manual
Frequently Asked Questions
Which Tikka rifles does the Diamond Trigger fit?
This trigger is designed for the Tikka T3, T3x, and T1x bolt-action rifles. It is a right-hand model with the Pro Curved lever. It drops in as a direct replacement for the factory trigger.
How light can I set the pull weight?
The Diamond adjusts from under 4 oz all the way up to 32 oz using the CLKR set screw. It moves in roughly 0.2 oz clicks down low up to about 9 oz, then shifts to about 1 oz per click above that. Keep in mind that pull weight is affected by firing pin spring weight, and an overweight spring can push readings above the advertised range.
Do I need to remove the action from the stock to adjust it?
No. The CLKR adjustment screw is externally accessible, so you can tune the pull weight without pulling the barreled action out of the stock. Each click gives positive feedback so you know exactly where the setting is.
What makes the Diamond different from a standard trigger?
The Diamond runs on TriggerTech's Frictionless Release design, meaning the sear engagement works without sliding friction. That delivers a true zero-creep break and keeps the pull consistent over thousands of rounds, since it does not depend on polishing, lubricating, or coating the engagement surfaces. Most people say the break feels lighter than the measured weight because it is so crisp.
