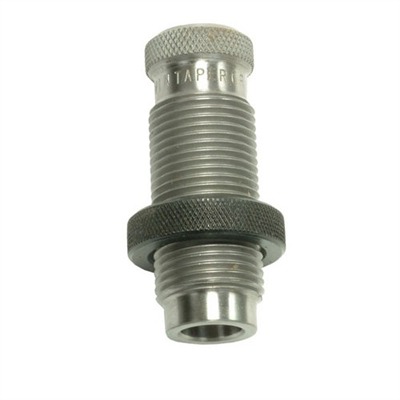

Redding Taper Crimp Die 30-06 Springfield (85148)

UPC: 611760851483

$34.99

3 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

If you handload 30-06 Springfield and want a cleaner, more uniform crimp than a conventional roll crimp gives you, Redding's dedicated Taper Crimp Die is a smart add to the bench. Instead of curving the case mouth inward the way a roll crimp does, this die angles the brass tighter and tighter against the bullet, gently increasing grip without working the case mouth as hard. That matters when you're loading bullets that don't have a cannelure, since a roll crimp can bulge or deform a smooth jacket. This die lets you add tension without changing the overall length of your loaded round.

Why the 30-06 Taper Crimp Die Earns a Spot on the Bench

Taper crimping really shines in semi-auto rifles, where the action slams rounds around during feeding and recoil can nudge a bullet out of position. A touch of taper crimp helps keep seating depth consistent shot to shot, which is exactly why so many M1 Garand owners reach for this die. It gives that extra bit of insurance against bullet setback without the drawbacks of a heavy roll crimp.

Setup and Everyday Use of the Redding Taper Crimp Die

This is a standalone crimping die, so it runs as a separate step after seating. It threads into any press with standard 7/8-14 threads and uses the #1 shellholder for 30-06. Dialing it in is straightforward: back the die off, raise a loaded round, then turn the die down in small increments until you reach the grip you want, and lock the ring down. Keeping your brass trimmed to a uniform length is the key to even, repeatable crimps across a batch.

Built in the USA for the Long Haul

Like the rest of Redding's die lineup, the Taper Crimp Die is machined from steel to tight tolerances and made in the USA. It's a precision tool built to hold alignment and deliver the same crimp load after load, which is what any serious handloader is after when consistency and accuracy are the whole point.

Key Specifications

  • Manufacturer: Redding
  • Manufacturer Part Number: 85148
  • UPC: 611760851483
  • Cartridge: 30-06 Springfield
  • Die Type: Taper Crimp Die
  • Crimp Style: Taper
  • Case Design: Bottleneck
  • Material: Steel
  • Thread: 7/8-14 (standard press)
  • Shellholder: #1 (sold separately)
  • Bullet Diameter: 0.308 in
  • Number of Dies: 1
  • Country of Origin: USA

What’s Included

  • One Redding Taper Crimp Die
  • Die box
  • Complete instructions

Frequently Asked Questions

What's the difference between a taper crimp and a roll crimp for the 30-06?

A roll crimp curves the case mouth inward against the bullet, while a taper crimp angles the brass tighter in a gentle, even squeeze. The taper style doesn't work the case mouth as hard and it doesn't change the overall length of the loaded round. It's the better call when you're loading bullets that don't have a cannelure, since a roll crimp can deform a smooth jacket.

Is this die a good choice for M1 Garand reloads?

Yes, it's a popular pick among Garand and other semi-auto 30-06 handloaders. A light taper crimp helps keep the bullet from moving under the hard feeding and recoil of a self-loading action, which keeps your seating depth consistent. Many shooters run a light touch just to steady the bullet in military brass without over-crimping.

Does the Redding Taper Crimp Die come with a shellholder?

No, the shellholder is sold separately. For 30-06 Springfield you'll want the #1 shellholder. The die itself threads into any standard press with 7/8-14 threads, so it drops right into a typical reloading setup.

How do I set up the taper crimp die for a consistent crimp?

Thread the die in a couple turns off the shellholder, then raise a loaded round to the top of the stroke. Turn the die down in small increments until you feel the crimp ring engage the case mouth, then keep adjusting until you reach the grip you want and lock the ring. Trimming all your brass to the same length first is the key to getting an even crimp across a whole batch.
