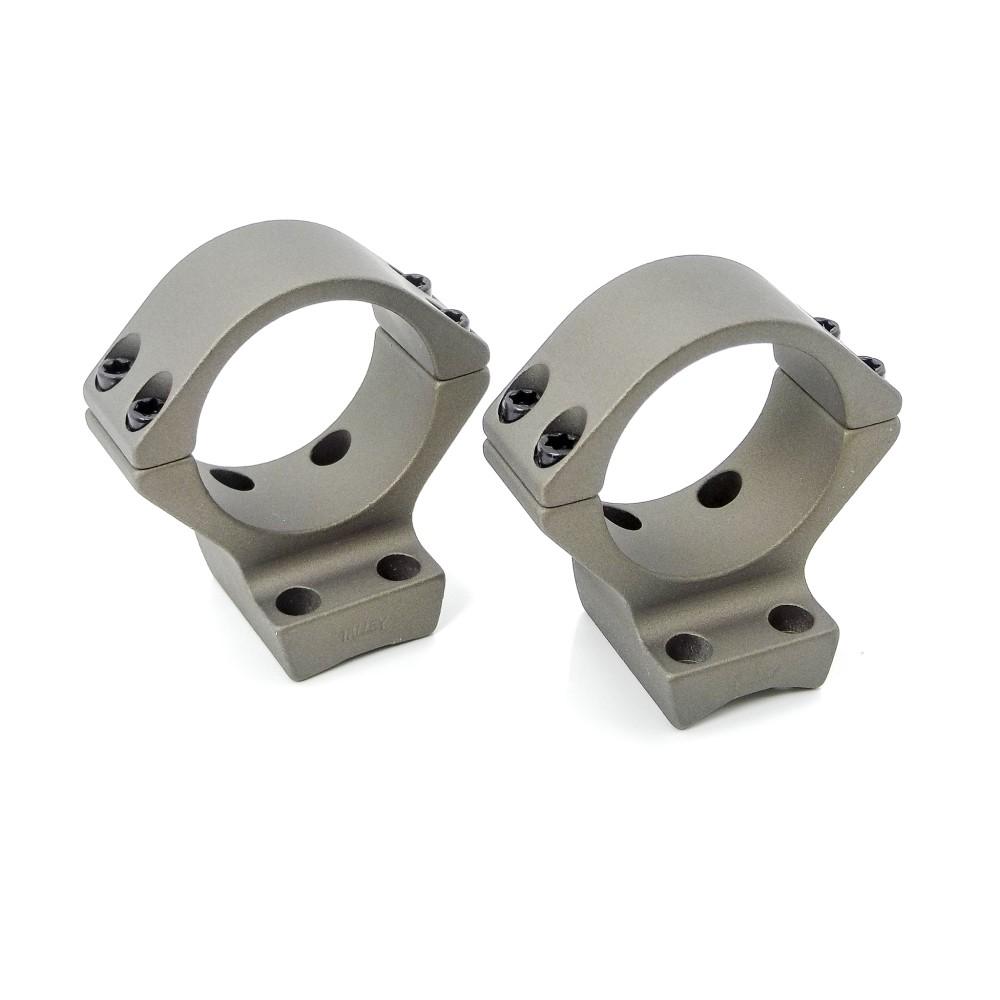

Talley Browning X-Bolt 30mm High 20 MOA Scope Mounts Smoked Bronze

UPC: 810301025004

$97.99

1 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Getting your scope mounted solid is half the battle when you want repeatable accuracy, and Talley takes the guesswork out of it with this one-piece setup made just for the Browning X-Bolt. Instead of stacking a separate base and rings, the ring and base are machined as a single unit, so there's no joint to loosen up or fall out of alignment over time. These are the High height, 30mm versions with 20 MOA of built-in elevation, finished in a sharp smoked bronze that pairs nicely with a lot of modern X-Bolt builds.

What the 20 MOA Cant Does for Your X-Bolt

The built-in 20 minutes of angle gives you extra usable elevation in your scope's turret, which matters once you start reaching way out there. By tilting the optic forward, more of your dial stays available for distance instead of getting eaten up zeroing at closer ranges. If you're shooting your X-Bolt at long range or just want headroom to dial for drop, that cant is the feature that makes the difference.

Fit and Build on the Talley Browning X-Bolt Mounts

These are made for the Short and Super Short Action X-Bolt receivers and accept 30mm scope tubes in the High ring height. They're fully CNC machined from lightweight aircraft-grade aluminum to tight tolerances, which keeps the weight down without giving up the rigid, locked-in feel you want under recoil. Because the rings come true from the factory, lapping isn't required, so you can install and go.

Mounting the Smoked Bronze X-Bolt Scope Mounts

The mount attaches directly to the receiver using the included 6-48 screws and a T-15 fits the fasteners. A common starting point is around 17 to 20 in/lbs on the ring cap screws, but always stay within your scope maker's allowable torque on the main tube to avoid marking the body. Set your eye relief, snug things down evenly, and you've got a clean, dependable platform that looks as good as it holds.

Key Specifications

  • Manufacturer: Talley
  • Manufacturer Part Number: SB750735SM
  • UPC: 810301025004
  • Fits: Browning X-Bolt Short / Super Short Action
  • Scope Tube Diameter: 30mm
  • Ring Height: High
  • Built-In Cant: 20 MOA
  • Finish: Smoked Bronze
  • Material: Aircraft-Grade Aluminum
  • Design: One-Piece Integrated Ring and Base
  • Mounting: Direct to Receiver
  • Mounting Screws: 6-48 (T-15)
  • Lapping Required: No
  • Sold As: Set (pair)
  • Shipping Weight: 0.255 lb

What’s Included

  • Talley one-piece scope mount set for Browning X-Bolt (30mm High, 20 MOA, Smoked Bronze)
  • 6-48 mounting screws
  • T-15 wrench

Frequently Asked Questions

Will these Talley mounts fit my Browning X-Bolt?

These are built specifically for the Browning X-Bolt in the Short and Super Short Action receivers. They mount directly to the receiver with no separate base needed. If you have a Long or Magnum length action, you'll want the version made for that footprint instead.

What does the 20 MOA on these X-Bolt scope mounts mean?

The 20 MOA refers to 20 minutes of angle of elevation built into the mount, tilting your scope slightly forward. This frees up more of your scope's internal travel for dialing at longer distances. It's a popular choice for folks stretching their X-Bolt out to extended ranges.

Do I need to lap these rings before installing a scope?

No. Talley machines the ring and base as one unit to tight tolerances, so the rings come properly aligned from the factory and lapping isn't required. You can get your scope mounted and zeroed without that extra step.

What tube size and ring height are these Talley Browning X-Bolt mounts?

These accept 30mm scope tubes and are the High ring height. The taller height gives you added clearance, which is handy for larger objective bells or if you prefer a slightly higher cheek position. Confirm your scope's tube diameter is 30mm before ordering.

Additional information

UPC

810301025004

Manufacturer

Manufacturer Part Number

SB750735SM

Shipping Weight

0.255
