Description

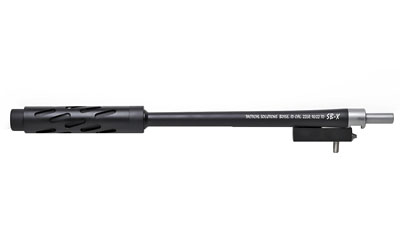

The Tactical Solutions X-Ring SB-X is built for one job in particular: giving your Ruger 10/22 Takedown a lighter, more accurate barrel that plays nice with a can. The bore itself measures 12.375 inches, and the permanently affixed shroud carries the overall length out to 16.625 inches. That means you get a short, quick-handling package without the extra paperwork that a true short barrel would usually require. At roughly 15 ounces, it sheds a good chunk of weight off the factory barrel, which you feel immediately when you're carrying the rifle all day.
What the X-Ring SB-X Brings to Your Takedown
The barrel is precision machined from 6061-T6 aluminum with a stainless steel shank, so you get real weight savings up front without giving up durability where it counts. The muzzle is threaded 1/2×28 and sits down inside the hollow shroud, which has an inside diameter of about 1.10 inches. Any suppressor 1 inch in diameter or smaller threads right on and stays tucked inside that shroud, so adding a can doesn't stretch your rifle out to an awkward length. If you don't own a suppressor yet, the barrel ships with an inert display piece so the profile looks complete in the meantime.
Installing the SB-X and What to Expect at the Range
Swapping this onto a 10/22 Takedown is genuinely a five-minute job. It comes fully assembled with the standard Ruger Takedown locking mechanism, so there's no fitting or gunsmithing involved. Folks who have run this barrel consistently note that the tight tolerances and quality rifling produce groups that match or beat the factory barrel, and the 1:16 twist handles standard .22 LR loads well. Whether you're using it for small game, plinking in the back forty, or dialing in on paper, the SB-X earns its spot as a serious upgrade for anyone building a compact, suppressor-ready Takedown.
Key Specifications
- Manufacturer: Tactical Solutions
- Model: X-Ring SB-X (SBX)
- Manufacturer Part Number: 1022TDSBX-MB
- UPC: 879971005877
- Caliber: .22 LR
- Overall Barrel Length: 16.63"
- Bore Length: 12.375"
- Twist Rate: 1:16"
- Muzzle Threads: 1/2×28
- Shroud Inside Diameter: 1.10"
- Barrel Material: 6061-T6 Aluminum with Stainless Steel Shank
- Contour: Sporting / Tapered
- Weight: Approx. 15 oz
- Finish: Matte Black
- Fits: Ruger 10/22 Takedown
What’s Included
- X-Ring SB-X barrel with permanently affixed shroud
- Ruger 10/22 Takedown locking mechanism
- Inert display suppressor
Frequently Asked Questions
Will the X-Ring SB-X fit my standard Ruger 10/22, or only the Takedown?
This particular SB-X is built specifically for the Ruger 10/22 Takedown, and it ships with the standard Takedown locking mechanism already installed. Tactical Solutions makes a separate SBX version for the fixed-barrel 10/22, so make sure you're matching the barrel to your rifle. If you have a Takedown model, this one drops right in.
What size suppressor works inside the SB-X shroud?
The hollow shroud has an inside diameter of roughly 1.10 inches, so any suppressor 1 inch in diameter or smaller with 1/2×28 threads should thread onto the muzzle and tuck neatly inside. Keeping the can inside the shroud is the whole point of the design, since it lets you run suppressed without stretching the rifle out to an awkward length. If your can is larger than an inch, it won't fit inside the shroud.
Do I need a gunsmith to install the X-Ring SB-X?
No gunsmithing needed here. The barrel comes fully assembled and swaps onto a 10/22 Takedown in about five minutes with basic tools. Most people knock it out on the kitchen table by following the free video instructions Tactical Solutions provides online.
How accurate is the SB-X compared to the factory barrel?
The SB-X is machined to tight tolerances with quality rifling and a target crown, and users regularly report groups that match or beat the factory 16-inch barrel. The 1:16 twist handles standard .22 LR ammo well for plinking, small game, and target work. You get the accuracy upgrade while also shaving weight off the rifle.
