Description

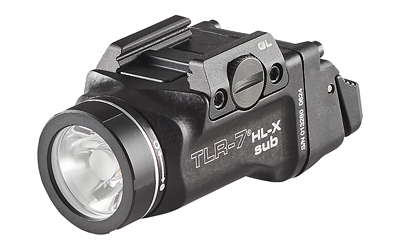

The TLR-7 HL-X Sub is Streamlight's answer to a common problem: most weapon lights are too big for a slim, single-stack carry gun. This one is scaled and shaped specifically for the shorter rail found on the Glock 43X and 48, so you get real brightness without a bulky brick hanging off the dust cover. Powered by the included SL-B9 USB-C rechargeable battery pack, it throws 1,000 lumens and 10,000 candela out to a 200-meter beam. Prefer to keep things simple with common batteries? Drop in a CR123A instead and it runs at 500 lumens with a longer runtime, which is handy when you can't get to a charger.
What Sets the TLR-7 HL-X Sub Apart
The custom TIR optic focuses a tight, far-reaching hotspot while still spilling enough peripheral light to keep you aware of what's around you. The head, body, and face cap are machined from 6000-series aircraft aluminum with a black anodized finish, and the lens is shock-mounted BOROFLOAT glass rated to take a beating. With an IPX7 waterproof rating, it can handle rain, sweat, and a dunk in a puddle without skipping a beat.
Controls and Mounting on the HL-X Sub
Ambidextrous rear paddle switches give you momentary and constant-on with a natural thumb reach, and they're interchangeable between high and low profiles so lefties and righties can set it up their way. A safe-off feature locks the light out to prevent accidental activation and save the battery. The rail-grip clamp snaps on and off tool-free from the side of the gun, so you never have to sweep your hand in front of the muzzle to mount or remove it.
One thing worth stressing: this Sub model is dialed in for the Glock 43X MOS, 48 MOS, 43X Rail, and 48 Rail specifically. It won't fit a full-size rail, and it needs a holster cut for this exact light. If your slim Glock has a rail and you want serious output in a compact package, this is a strong pick.
Key Specifications
- Model: TLR-7 HL-X Sub USB
- Manufacturer: Streamlight
- Manufacturer Part Number: 69503
- UPC: 080926695030
- Max Output (SL-B9): 1,000 lumens
- Peak Beam Intensity (SL-B9): 10,000 candela
- Beam Distance (SL-B9): 200 meters
- CR123A Output: 500 lumens / 5,000 candela / 141m
- Battery: SL-B9 USB-C rechargeable (included) or 1x CR123A
- Runtime: 30 min at 1,000 lm; programmable to 1 hr at 500 lm
- Fit: Glock 43X MOS, 48 MOS, 43X Rail, 48 Rail
- Construction: 6000-series machined aircraft aluminum, black anodized
- Lens: Shock-mounted, impact-resistant BOROFLOAT glass
- Waterproof Rating: IPX7
- Color: Black
- Switch Type: Ambidextrous rear paddle, high/low interchangeable
What’s Included
- Streamlight TLR-7 HL-X Sub USB weapon light
- SL-B9 USB-C rechargeable battery pack
- Mounting kit
- Product instructions
Frequently Asked Questions
Which guns does the TLR-7 HL-X Sub fit?
This Sub model is built specifically for the Glock 43X MOS, 48 MOS, 43X Rail, and 48 Rail. It uses a specialized clamp shaped for those slim pistols and will not fit a full-size Picatinny rail. If your slim Glock does not have a rail, it won't mount, so check your frame before ordering.
How do I charge the TLR-7 HL-X Sub, and can I use regular batteries?
It runs on the included SL-B9 USB-C rechargeable battery pack, which you can top off with a standard USB-C cable. It's also multi-fuel, so you can swap in a single CR123A lithium battery when you want to run common cells instead. On the SL-B9 you get 1,000 lumens, while a CR123A drops it to 500 lumens with longer runtime.
How bright is the TLR-7 HL-X Sub and how far does the beam reach?
With the SL-B9 battery it puts out 1,000 lumens and 10,000 candela, reaching out to about 200 meters. The custom TIR optic gives you a focused hotspot with useful peripheral spill for target identification. You can also program it down to 500 lumens for a full hour of runtime.
Do I need a special holster for the TLR-7 HL-X Sub?
Yes. The Sub has its own body dimensions, so a holster cut for a standard TLR-7 or other lights won't work correctly. Look for a holster specifically molded for the TLR-7 HL-X Sub on your Glock 43X or 48 that fully covers the trigger guard for safe carry.
