Description
Streamlight took the popular TLR-1 platform and pushed it toward distance with the HP-X USB. Where the standard TLR-1 lights flood an area with a wide beam, this one concentrates its output into a tight, high-candela column that reaches way out there. Running the included SL-B9 rechargeable packs, you get 1,300 lumens, 77,000 candela, and a 555 meter beam that runs a full hour. Drop in a pair of CR123A lithiums instead and it steps down to 1,000 lumens with a 460 meter reach and about 1.5 hours of runtime. That flexibility means you're never stuck without a light if a charge runs low.
What Sets the TLR-1 HP-X USB Apart

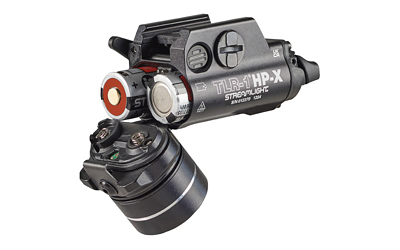

The standout here is the hinged face cap. Instead of pulling the light off your firearm to change batteries, you flip open the front and load them in from the muzzle end. Those two SL-B9 packs charge through a USB-C port with the included Y-split cable, so you can keep a spare topped off and ready. The body is machined from 6000-series aircraft aluminum with a black anodized finish and carries an IPX7 waterproof rating, meaning it shrugs off rain, dust, and hard use.
Controls and Mounting on the TLR-1 HP-X USB
The rear paddle switches handle momentary and constant-on operation, and they're ambidextrous so lefties and righties both get the same experience. It ships with both standard and extended paddles, letting you tune the feel to your grip and trigger reach. There's also a programmable strobe you can enable or leave off depending on how you run your setup. The rail grip clamp system snaps on and tightens without tools and without putting your hand in front of the muzzle, and the included locating keys cover a broad range of full-size and compact railed handguns.
This is a strong pick for a home-defense pistol, a duty gun, or a truck gun where you want to identify what's downrange before you commit. The extra bezel length buys you that candela and reach, so if throw matters more than a wide wash of light, the HP-X earns its spot.
Key Specifications
- Manufacturer: Streamlight
- Model: TLR-1 HP-X USB
- Manufacturer Part Number: 69168
- UPC: 080926691681
- Lumens (SL-B9): 1,300
- Lumens (CR123A): 1,000
- Peak Candela: 77,000
- Beam Distance: 555 meters (SL-B9)
- Runtime: 1 hour (SL-B9) / 1.5 hours (CR123A)
- Battery Type: (2) SL-B9 USB-C rechargeable or (2) CR123A
- Mount Type: Universal Rail Mount
- Body Material: 6000-series machined aircraft aluminum
- Finish: Black anodized
- Waterproof Rating: IPX7
- Color: Black
What’s Included
- TLR-1 HP-X USB weapon light
- (2) SL-B9 USB-C rechargeable battery packs
- Y-split USB-C charging cable
- Standard and extended paddle switches
- Rail locating key kit
- User manual
Frequently Asked Questions
What batteries does the TLR-1 HP-X USB use?
It's a multi-fuel light, so you have two options. It comes with two SL-B9 USB-C rechargeable battery packs that deliver the full 1,300 lumens and 555 meter beam. You can also run two standard CR123A lithium batteries, which drops output to 1,000 lumens but keeps you going when you can't recharge.
Can I change the batteries without taking the light off my gun?
Yes, and that's one of the best features on this light. The hinged face cap flips open at the front, letting you load fresh batteries from the muzzle end while the light stays clamped to your firearm. It saves you from re-zeroing or re-mounting every time you swap power.
What guns will the TLR-1 HP-X USB fit?
The rail grip clamp system mounts to Glock-style and MIL-STD-1913 Picatinny rails, and it ships with locating keys covering a range of full-size and compact railed handguns. It's sized for full-frame pistols rather than micro-compacts, so a Glock 17, SIG P320, or similar duty-size gun is right in its wheelhouse. Check Streamlight's compatibility list for your specific model before mounting.
How is the HP-X different from the regular TLR-1 HL-X?
The HP-X is the high-candela version of the HL-X. It has a slightly longer bezel that focuses the beam into a tighter, farther-reaching column, hitting 77,000 candela and 555 meters versus the wider spread of the HL-X. If you prioritize distance and target identification at range, the HP-X is the one to grab.
