Description

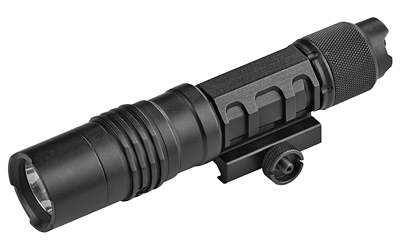

The Streamlight ProTac Rail Mount HL-X Laser packs two tools into one compact housing: a blistering 1,000-lumen white LED and an integrated red aiming laser, both mounted low and tight to your rifle, carbine, or SMG. On high it throws a concentrated beam with plenty of spill for peripheral awareness, reaching out well past 250 meters. Drop it to the 60-lumen low setting when you want to stretch runtime and keep things discreet. There's also a strobe if you want it. The body is machined 6000-series aircraft aluminum with an anodized finish and an impact-resistant tempered glass lens, so it shrugs off recoil and rough handling without complaint.
What Sets the ProTac HL-X Laser Apart
The integrated red laser is the real story here. It runs windage and elevation adjustments right on the unit, and thanks to a clever clamp design, those adjustment screws stay in the correct orientation for sighting no matter how the light is positioned on your rail. The rail grabber is separate from the light body, so you can rotate the light within the clamp and still hold your zero. Adjustment is done with the included hex wrench, and the aiming dot runs roughly a half inch at 50 feet, tight enough for fast, close-quarters work.
Powering and Programming the HL-X Laser
Multi-fuel is a big selling point. This version feeds on two CR123A lithium cells or a single rechargeable 18650-style battery, so you can grab whatever you have on hand. TEN-TAP programming lets you pick from three setups: high/strobe/low, high only, or low/high, tailoring the light to how you actually run it.
You get two ways to fire it up: a multi-function push-button tailcap for standalone use, or the included remote pressure switch for a cleaner, gloved-hand setup. The anodized aluminum build is IPX4 water-resistant, and it holds up in temperatures from well below freezing to blazing hot. It's a proven package trusted by folks who put their gear through real work.
Key Specifications
- Manufacturer: Streamlight
- Model: ProTac Rail Mount HL-X Laser
- Manufacturer Part Number: 88089
- UPC: 080926880894
- High Output: 1,000 lumens
- Low Output: 60 lumens
- Beam Distance: 270 meters on high
- Laser: Integrated red aiming laser with windage/elevation adjustment
- Battery: Two CR123A lithium or one rechargeable 18650-style cell
- Programming: TEN-TAP, three user-selectable modes
- Switching: Push-button tailcap and remote pressure switch
- Mount: Thumbscrew clamp for MIL-STD-1913 Picatinny rail
- Construction: 6000-series machined aircraft aluminum, anodized finish
- Water Resistance: IPX4
- Length: 6.625 inches
- Weight: 10.8 ounces
- Color: Black

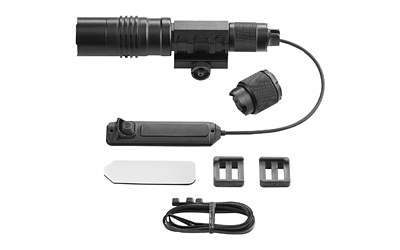

What’s Included
- ProTac Rail Mount HL-X Laser light
- Remote pressure switch
- Push-button tail switch
- Remote retaining clips
- Mounting hardware
- Two CR123A lithium batteries
- Double-sided tape and zip ties
Frequently Asked Questions
Does the ProTac HL-X Laser come with a rechargeable battery?
This model, the 88089, ships with two CR123A lithium batteries rather than a rechargeable pack. That said, the multi-fuel design also accepts a single rechargeable 18650-style cell, so you can switch to a rechargeable setup whenever you like. If you specifically want the light bundled with Streamlight's SL-B26 USB rechargeable pack and cord, that's the 88090 version instead.
How do you zero the red laser on the HL-X Laser?
The laser has windage and elevation adjustments built right into the unit, and you dial them in with the included hex wrench. A smart part of the design keeps those adjustment screws in the correct orientation for sighting no matter how the light sits on your rail. Since the rail grabber is separate from the light body, you can rotate the light within the clamp and still keep your laser zero.
What rails will the ProTac Rail Mount HL-X Laser fit?
It mounts directly to MIL-STD-1913 Picatinny rails using an integral thumbscrew clamp. The one-handed on/off tightening interface lets you attach or remove it while keeping your hands away from the muzzle. It's a quick, secure setup for rifles, carbines, and shotguns with a section of Picatinny rail.
Can I change how the light modes are programmed?
Yes. TEN-TAP programming lets you choose from three operating setups: high/strobe/low, high only, or low/high. That means you can strip it down to just high output if you never use strobe, or keep the full menu if you want every option on tap.
