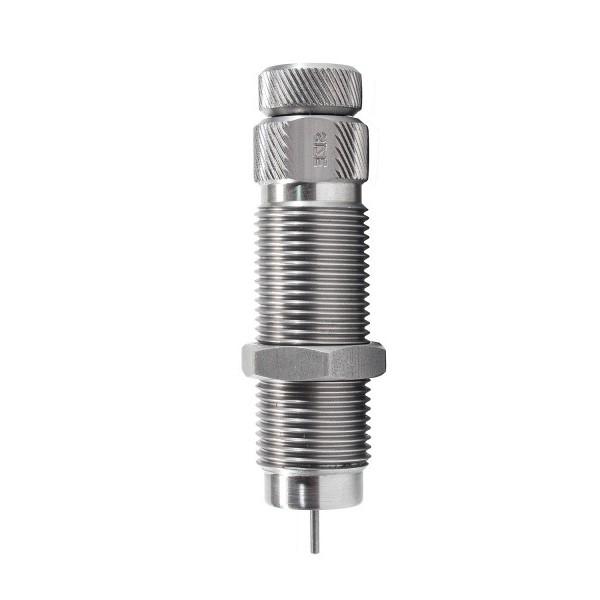

Lyman Stainless Pro Carbide Sizing Die – 380 Auto

UPC: 011516742384

$81.99

3 in stock

Online inventory may differ from in-store availability.

Fast Shipping

Quick turnaround so you get your gear sooner.

Secure FFL-Friendly Checkout

Trusted checkout with industry-standard protection.

Family-Owned Business

Keeping Traditions Alive Since 1953

Secure Transactions provided with

Description

Lyman pretty much wrote the book on tungsten carbide sizing dies, and the Stainless Pro Carbide Sizing Die in 380 Auto is their refined take on a tool reloaders have trusted for decades. The die body is machined from stainless steel, so you can stop worrying about the rust and surface pitting that eventually plagues older blued dies left in a humid garage or basement. It is a single full-length sizing and decapping die with a standard 7/8-14 thread, so it drops right into the press you already own.

What Sets This 380 Auto Carbide Die Apart

The heart of the die is a highly polished carbide ring that resizes your brass with noticeably less effort and holds its dimensions even after heavy use. That hard carbide surface resists wear far longer than plain steel, which matters when you are churning through pistol brass in volume. The mouth of the carbide ring is cut with a generous radius, so cases feed and align easily instead of hanging up or shaving at the entry. It is a detail that really shows itself when you are running a progressive and want every case to drop in clean.

Decapping That Just Works

This die uses Lyman's spring-loaded decapping rod system, which drives the spent primer out of the pocket with authority on every stroke. No fiddling with rod height either, since the position comes set from the factory and needs no adjustment out of the box. If you ever want to pull the assembly for cleaning, the cap at the top unscrews and the rod lifts right out.

Presses and Setup for the Stainless Pro Carbide Die

Though these Pro dies were engineered alongside Lyman's high-volume Mark 7 machines, they run just as happily on a single-stage, turret, or standard progressive press. On a single-stage or turret setup you can size 380 brass with carbide and skip the case lube entirely, which keeps the whole process cleaner. If you are feeding a progressive, a light coat of lube is worth the extra step since it eases strain on the shell plate and keeps cases cycling smoothly. Setup is simple: run the shell holder to full travel, thread the die down until it kisses the shell holder, then back it off about the thickness of a matchbook cover and lock it in.

Key Specifications

  • Manufacturer: Lyman
  • Caliber: 380 Auto (380 ACP)
  • Die Type: Full-Length Sizing / Decapping Die
  • Die Body Material: Stainless Steel
  • Sizing Ring: Polished Tungsten Carbide
  • Decapping System: Spring-Loaded Decapping Rod
  • Thread: 7/8-14 (standard)
  • Press Compatibility: Single-Stage, Turret, Progressive, Mark 7
  • Manufacturer Part Number: 7704238
  • UPC: 011516742384
  • Shipping Weight: 0.1 lb

What’s Included

  • Lyman Stainless Pro Carbide Sizing Die (380 Auto)
  • Spring-loaded decapping rod assembly (installed)
  • Instructions

Frequently Asked Questions

Do I need to lube my 380 Auto brass with the Lyman Pro Carbide Sizing Die?

On a single-stage or turret press, you can size 380 brass in this carbide pistol die without any lube at all, which is one of the big perks of carbide. If you are running a progressive press, Lyman recommends a light coat of case lube to reduce strain on the shell plate and keep cases feeding smoothly. It is a small step that pays off in a cleaner, faster run.

Will this Pro Carbide die fit my press?

Yes, it uses the industry-standard 7/8-14 thread, so it threads into any standard single-stage, turret, or progressive press. These Pro dies were designed alongside Lyman's Mark 7 machines for high-volume loading but work great on everyday presses too. The decapping rod comes set from the factory, so there is no height adjustment needed before you start.

Is this a complete die set or just the sizing die?

This is the single full-length sizing and decapping die for 380 Auto, not a full set. You will still need a seating die and ideally a flare and crimp die to complete your 380 reloading workflow. Lyman offers those separately as well as complete Pro die packs if you want to build out the whole station.

What makes the stainless construction worth it?

The stainless steel body resists the corrosion and rust that eventually show up on traditional blued dies, especially in damp storage areas like garages and basements. Paired with the polished carbide sizing ring, it is built to hold its dimensions and keep sizing effort low over a long service life. For a tool you want to last decades at the bench, that durability is the main draw.

Additional information

UPC

011516742384

Manufacturer

Manufacturer Part Number

7704238

Shipping Weight

0.1
