Description

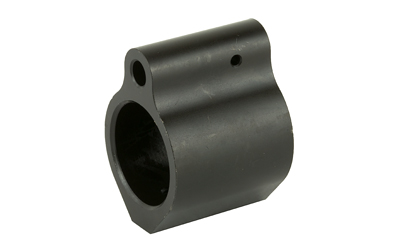

When you're swapping out a chunky front sight base or piecing together a fresh AR-15 upper, the gas block is one of those parts you want to get right the first time. Spike's Tactical built this Micro Gas Block to disappear under your rail, giving you room to stretch a longer handguard past the gas system for a better sight radius and more real estate up front for a light or hand stop. It seats on barrels with a .750" journal, which covers the majority of AR-15 barrels out there, and it tips the scales at right around 1.9 ounces.
What Sets the Spike's Micro Gas Block Apart
This one is machined from solid billet steel and finished inside and out with black nitride, so it shrugs off heat, wear, and corrosion where a lot of budget blocks start to struggle. The front is closed off to help keep gas from leaking out the muzzle end, which matters for keeping your rifle cycling the way it should. Spike's holds tight tolerances on the inner diameter, so it slides on snug and lines up cleanly with your gas port.
Installing the .750 Micro Gas Block
It mounts with a pair of set screws rather than a clamp, and the screws come in the box. For the most secure hold, a lot of builders dimple the barrel first so the screw tips have a recess to bite into, then lock everything down with a quality thread locker. Dimpling isn't strictly required, but it goes a long way toward keeping the block from creeping forward under recoil, especially on harder nitride barrels. If you'd rather go permanent, this block can also be pinned by a gunsmith with the right tooling.
Spike's Tactical parts are made in the USA to mil-spec standards and carry the company's lifetime warranty, so this is a part you can build around and forget about. It's a straightforward, workhorse upgrade for anyone building or refreshing an AR-15.
Key Specifications
- Manufacturer: Spike's Tactical
- Manufacturer Part Number: SUGB120
- UPC: 815648021399
- Platform: AR-15
- Gas Seat / Journal Diameter: .750 inch
- Profile: Micro / Low Profile
- Material: Solid Billet Steel
- Finish: Black Nitride
- Attachment: Double Set Screw
- Front Design: Closed Front
- Weight: 1.9 oz
- Length: Approx. 1 inch
- Country of Origin: USA
- Warranty: Spike's Tactical Lifetime Warranty
What’s Included
- Spike's Tactical .750 Micro Gas Block
- Two mounting set screws
Frequently Asked Questions
Will this Spike's micro gas block fit my AR-15 barrel?
It's sized for barrels with a .750" journal at the gas block location, which is the most common diameter on AR-15 barrels, including those that came with a fixed front sight base. That said, not every barrel uses .750, so it's worth measuring your barrel or checking the manufacturer's spec before ordering. If your journal measures .625, you'd want the SUGB110 version instead.
Do I need to dimple my barrel to install the .750 micro gas block?
Dimpling isn't required, but it's strongly recommended for a set screw block like this one. A small dimple gives the screw tips a recess to seat into, which keeps the block from rotating or sliding forward under recoil, especially on hard nitride barrels. Pair that with a good thread locker and you'll have a rock-solid install.
Does this gas block come with the set screws and a gas tube?
The mounting set screws are included in the box, so you're ready to install right away. A gas tube is not included, so you'll need to source one in the correct length for your build, whether that's carbine, mid-length, or rifle. Spike's makes matching black nitride gas tubes if you want to keep everything in the family.
Why go with a micro low-profile gas block over a standard one?
The micro low-profile design lets you run a free-float handguard that extends well past the gas system. That means a longer sight radius for iron sights and more rail space up front to mount a light, laser, or hand stop. It also cleans up the look of the build by tucking the gas block completely out of sight.
